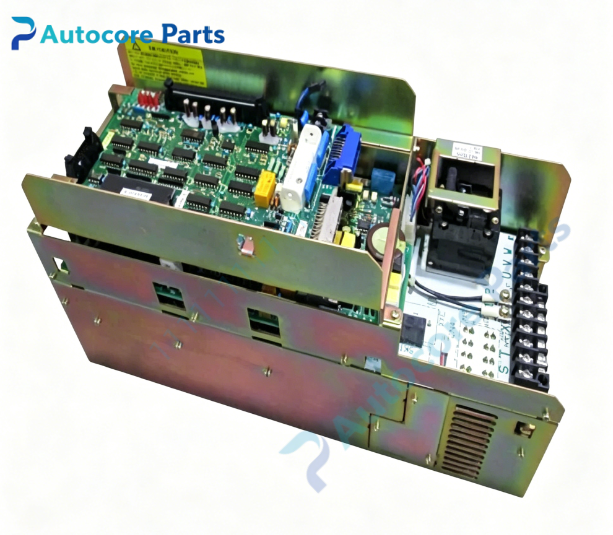

Sanyo Denki A8PU05ABFW0A Servo Amplifier

Module Feature

Sanyo Denki A8PU05ABFW0A belongs to SANMOTION PU series digital AC servo amplifier. AC200V single/three phase input, rated capacity 500W. Adopts current, speed dual closed-loop digital control architecture, fast dynamic response and low speed ripple. Supports position, speed, torque 3 control modes, can receive pulse train and analog command signal. Built-in comprehensive protection functions including overcurrent, overvoltage, undervoltage, overheat, overload, encoder fault and emergency stop protection. Compact structure for DIN rail mounting, convenient installation inside electrical cabinet. Widely used for light load motion axis control in semiconductor wet bench and chemical delivery automation equipment.

Working principle: The servo drive receives motion command from upper controller. It converts input AC power into three-phase variable frequency AC power to drive matched servo motor. The encoder feeds back real-time position and speed signal to amplifier, the controller executes high-speed closed-loop operation to adjust output current, so as to realize precise torque, speed and position control. Once fault is detected, the drive will cut off power output immediately and send alarm signal to upper system.

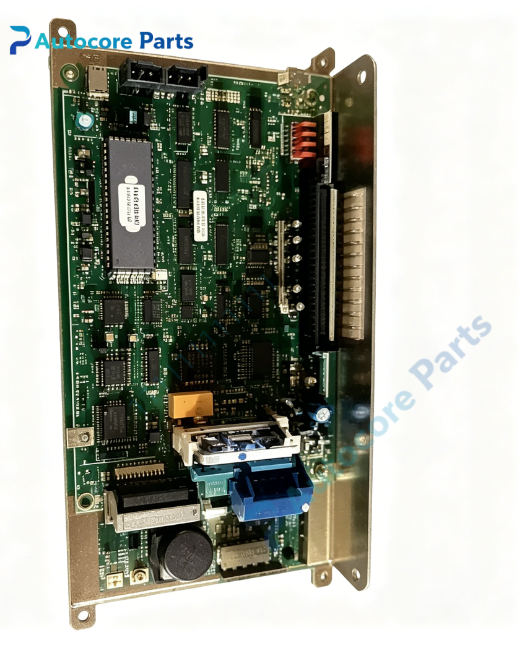

Onboard components:Power IGBT module,digital main control PCB,pulse / analog command terminal block,encoder feedback port,DC bus terminal,LED status indicators,emergency stop terminal

LED indicatorsFront panel LED indicators for power, servo ready, enable status, fault alarm and communication.

Hardware self-diagnosis

Visual inspection of power terminals and encoder connector; power-on self-test; input voltage detection; motor wiring continuity inspection; read alarm code and verify signal loop.

Programming software

Sanyo Denki SANMOTION setup software for motor parameter automatic identification, servo gain tuning, command mode setting and alarm log reading.

Electrical & Process Parameters

Input voltage:AC200V class (single / 3 phase) Rated capacity:500W Control mode:Position / Speed / Torque Command input:Pulse train, analog signal Protection:Overcurrent, overvoltage, undervoltage, overheat, overload, encoder fault, E-stop Mounting:DIN rail

Mechanical & Structure

Mounting:Cabinet DIN rail installation Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION PU series digital AC servo amplifier

System compatibility

Matched with Sanyo Denki PU series small power servo motors, suitable for automation light load axis positioning.

Function

A8PU05ABFW0A servo drive manufactured by Sanyo Denki. It provides power driving and closed-loop motion control for matched servo motor, realizes stable low-speed operation and high precision positioning. Wrong encoder wiring, mechanical overload or improper parameter setting will trigger servo alarm and stop motion. It is compact motion control driver for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Cut off power of the whole servo system. Mount servo drive on DIN rail and reserve clearance for heat dissipation. Wire AC power cable, motor power cable and encoder feedback cable. Connect control signal and emergency stop circuit. Configure parameters via SANMOTION software, complete jog test and positioning verification before formal operation.

InterfaceAC power input terminal, motor power output terminal, encoder feedback connector, pulse/analog signal terminal block, emergency stop terminal, front LED indicators on housing of A8PU05ABFW0A.

Diagnostic

Servo not ready:Power supply missing or internal hardware damage. Motor no rotation:Servo enable signal missing, wrong wiring or incorrect motor parameters. Overload alarm:Mechanical jam, over load or motor winding defect. Encoder alarm:Cable broken, poor contact or encoder failure.

Product Brief

A8PU05ABFW0A Sanyo Denki SANMOTION PU series 500W AC servo drive,AC200V class,digital dual loop control,supports pulse/analog command,DIN rail mount,matching PU series servo motors,for semiconductor wet bench and chemical delivery light load precision motion axis control.
