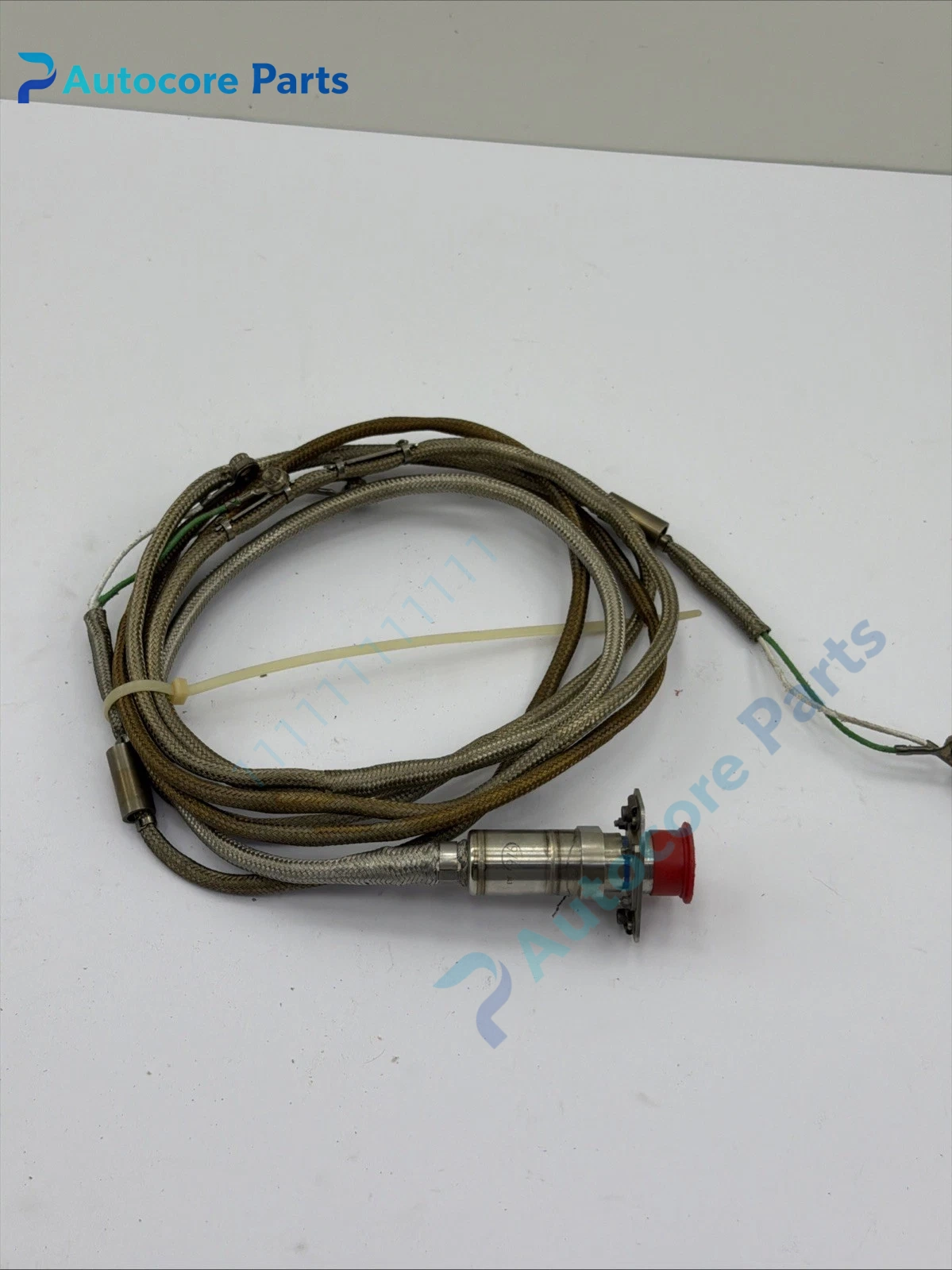

Pratt & Whitney 1023605-1 EGT Harness Unit

Module Feature

1023605-1 is dedicated EGT signal wiring harness for Pratt & Whitney gas turbine engine.

It connects exhaust gas temperature thermocouple sensors to engine control unit, transfers temperature analog signal. It adopts high temperature resistant shielding cable structure, anti-vibration and flame retardant design. It is widely used for PW1519G, PW1521G, PW1919G and related turbine engine maintenance.

Working principle

Thermocouple millivolt signal is transmitted through shielded harness.

The harness isolates external electromagnetic interference, ensures accurate temperature feedback to ECU. It supports multi-point EGT sampling, provides temperature data for engine monitoring and over-temperature protection logic.

Onboard components

High temperature shielded cable, thermocouple connectors, backshell shielding assembly, strain relief and fixation brackets.

LED indicators

No built-in LED indicators, signal health status is displayed on engine control panel.

Hardware self‑diagnosis

Engine controller continuously monitors open circuit, short circuit and abnormal temperature signal, alarm message is triggered once harness fault detected.

Programming software

Pratt & Whitney Engine Monitoring Software, used for EGT channel checking and engine health diagnosis.

Electrical & Process Parameters

Model:1023605-1 Brand:Pratt & Whitney Device type:EGT thermocouple wiring harness Signal type:Thermocouple millivolt signal Function:Exhaust gas temperature signal transmission for gas turbine engine

Mechanical & Structure

Mounting:Engine compartment fixed routing installation

Protection class:IP20

Housing:High temperature insulation sheath with metal shielding braid

Environmental

Operating temperature:-40℃ ~ +350℃ local hot zone Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:AS9100

Status:Original Pratt & Whitney turbine engine spare

Installation

Install harness along engine specified routing and secure brackets.

Match thermocouple and ECU connector pin definition, check continuity and insulation resistance before commissioning.

Interface

Thermocouple sensor connector, engine controller signal connector.

Diagnostic

EGT channel fault: Harness open circuit, short to ground or loose connector.

Abnormal temperature drift: Shielding damage, signal interference.

Channel mismatch: Wrong pin assignment during wiring.

Product Brief

Pratt & Whitney 1023605-1 EGT wiring harness, high temperature thermocouple cable assembly for gas turbine engine temperature monitoring replacement.
