OPTIMATION OL4228 OptiLogic RTU

Module Feature

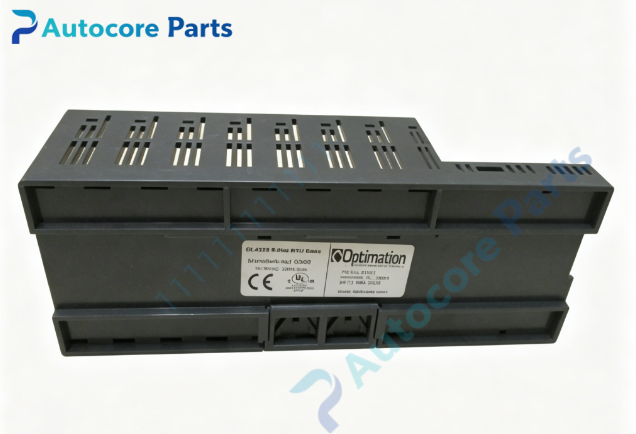

OPTIMATION OL4228 is OptiLogic series 8-slot Remote Terminal Unit base chassis. It supports hot-plug OL series I/O modules, integrated 10BaseT Ethernet communication supporting OptiLogic/UDP and Modbus TCP/IP protocols (difference from OL4058). Internal backplane provides power and high-speed bus communication for all inserted I/O cards. DIN rail metal housing, freely mix digital input, relay output, analog input and serial communication modules. Widely used for semiconductor wet bench and chemical fluid delivery distributed control systems.

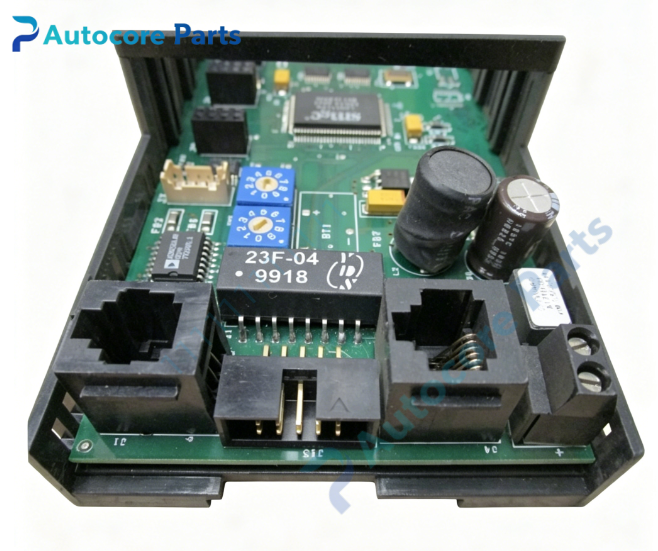

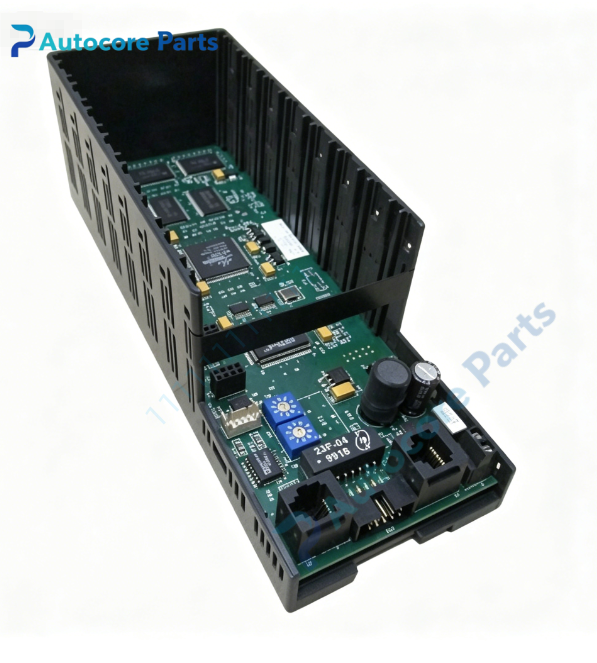

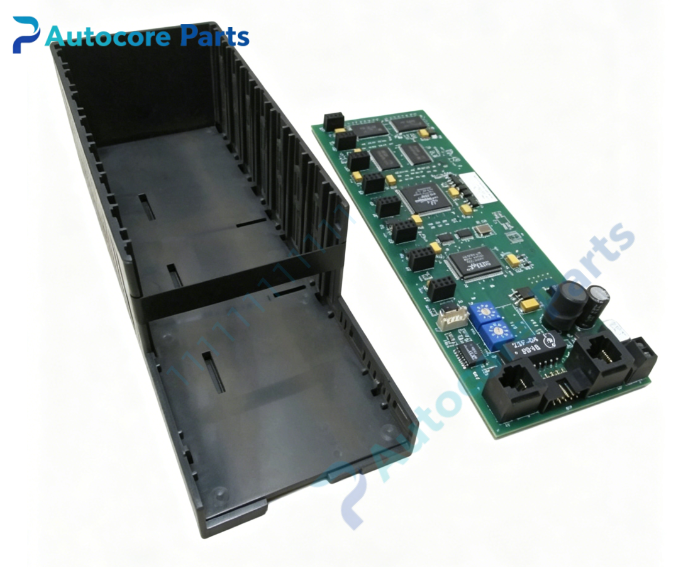

Working principle: The backplane supplies power and internal bus to each installed I/O module. It collects field sensor data from I/O cards, transmits data to host controller over Ethernet via Modbus TCP or OptiLogic/UDP, and receives host control commands to drive field actuators. Onboard components: Metal DIN rail housing, main logic PCB,10BaseT Ethernet circuit,8 module slots,DC power terminal block,backplane edge connectors,front panel status LEDs

LED indicatorsPower, Ethernet link and rack fault LED indicators on front panel

Hardware self-diagnosis

Visual inspection, slot mechanical fit inspection, backplane continuity test, Ethernet link test, module slot recognition verification

Programming software

OPTIMATION OL System Builder software for network address setup, Modbus TCP configuration, I/O module mapping and fault log reading

Electrical & Process Parameters

Power supply:8 ~ 30VDC Backplane power:2.8A @5V for I/O modules Communication:10BaseT Ethernet, OptiLogic/UDP, Modbus TCP/IP Slot quantity:8 OptiLogic standard I/O slots Mount type:DIN rail cabinet mounting

Mechanical & Structure

Mounting:DIN rail snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic 8-slot Modbus TCP RTU base

System compatibility

Compatible with all OptiLogic OL I/O modules including OL2208, OL2108, OL2408, OL2205, OL2109A, OL2602; works with OPTIMATION OP / OM series operator panels and Modbus TCP host PLC.

Function

OL4228 RTU base manufactured by OPTIMATION. It is 8-slot distributed I/O rack with native Modbus TCP support. Poor backplane contact or incorrect network IP configuration will cause module offline and signal loss. It is core remote I/O chassis for wet process automation control cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Mount chassis on DIN rail. Insert I/O modules into empty slots and lock latches. Wire 8-30VDC power and Ethernet cable. Configure network parameters and test all I/O channels before production startup. Install OL0001 blank filler card for unused slots.

InterfaceDC power terminal block,10BaseT Ethernet port,OptiLogic backplane slot connectors,power/link/fault LED indicators on housing of OL4228.

Diagnostic

No Ethernet link:IP address mismatch or cable fault. Module undetected:Poor backplane contact or damaged edge connector. Intermittent I/O signals:Vibration causing loose module seating. Rack power alarm:Power overload or loose power wiring.

Product Brief

OL4228 OPTIMATION OptiLogic 8-slot RTU base chassis,10BaseT Ethernet with OptiLogic/UDP & Modbus TCP/IP,DIN rail mount,for semiconductor wet bench and chemical delivery distributed I/O control system.
