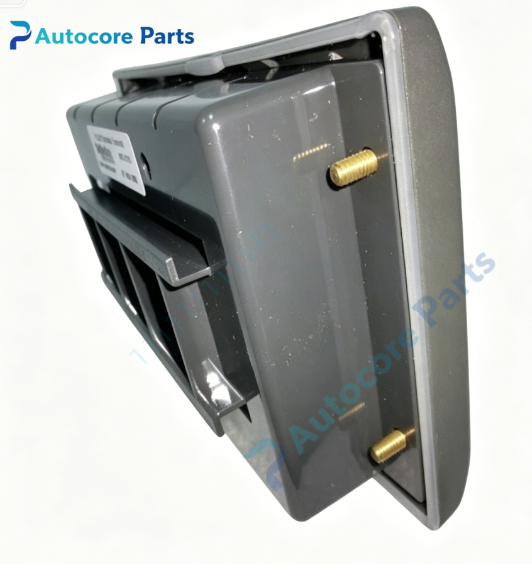

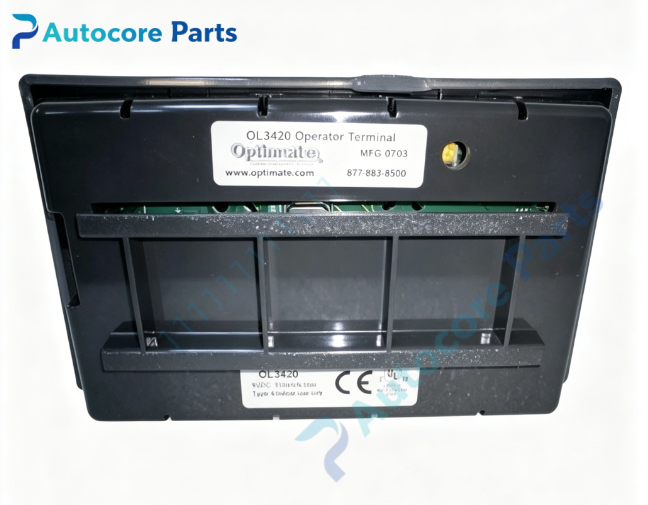

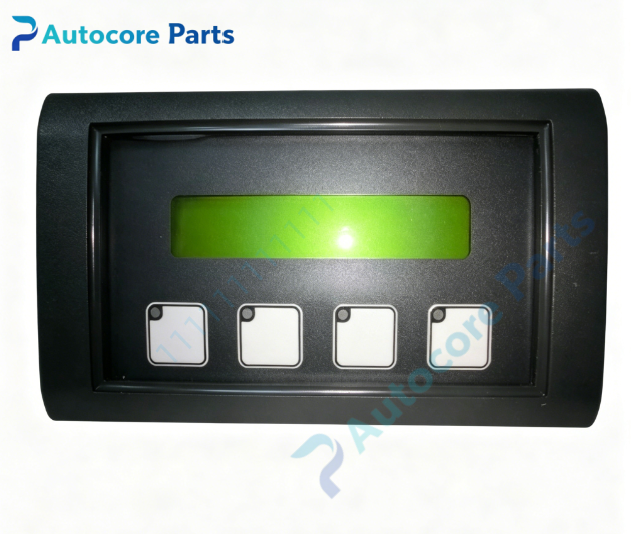

OPTIMATION OL3420 Operator Interface Module

Module Feature

OPTIMATION OL3420 belongs to OptiLogic series slot-type operator interface module. It is designed to be installed into OL4054, OL4058 OptiLogic RTU rack card slot. This interface card acts as internal bridge between RTU mainboard and OptiMate OP/OM series operator panels. It processes serial communication data between rack and front HMI terminal, supports configuration and data exchange for local operation panels. Same mechanical form factor as standard OptiLogic I/O modules, supports hot plug. Widely used in semiconductor wet bench and chemical delivery control cabinet modular I/O rack system.

Working principle: OL3420 connects to RTU backplane bus. It exchanges process data, alarm signals and keypad commands between RTU and OptiMate operator panels, converts internal rack bus signals to HMI serial protocol. Only one OL3420 operator interface module can be installed within a single OptiLogic RTU rack. Onboard components: Interface PCB, serial transceiver circuit, backplane edge connector, front panel status LED indicators

LED indicatorsFront panel bi-color LED indicators for power and serial communication status

Hardware self-diagnosis

Visual inspection, module seating test, backplane communication test, serial port loopback test

Programming software

OPTIMATION OL System Builder software for module recognition and HMI communication configuration

Electrical & Process Parameters

Power supply:Power supplied from rack backplane Mount type:OptiLogic rack slot snap-in mounting Feature:One OL3420 per RTU rack limit

Mechanical & Structure

Mounting:OptiLogic card cage slot installation Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic operator interface module

System compatibility

Compatible with OL4054, OL4058 OptiLogic RTU chassis; works with OP-9001, OM-9001-2 gateway and OP/OM OptiMate HMI panels.

Function

OL3420 operator interface module manufactured by OPTIMATION. It serves as dedicated internal communication bridge for rack-mounted HMI connection. Poor backplane contact will lead to HMI panel communication loss. It is special interface module for wet bench automation OptiLogic rack system.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Insert OL3420 module into empty rack slot and lock latches. Wire operator panel serial wiring, power up rack, verify module identification and HMI data communication via OL System Builder.

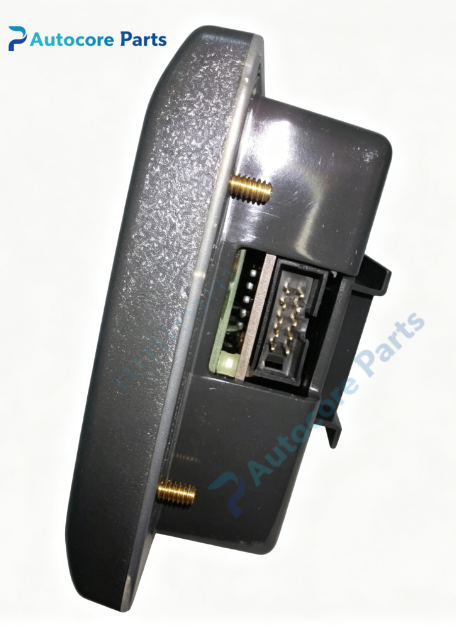

InterfaceBackplane edge connector for rack bus, serial terminal block for HMI panel connection, front status LED indicators on housing of OL3420.

Diagnostic

Module not detected:Poor backplane contact or damaged edge connector. HMI no communication:Serial wiring error or module failure. Intermittent connection:Loose module latch or internal solder joint issue.

Product Brief

OL3420 OPTIMATION OptiLogic operator interface module,rack slot mount interface card for connecting OptiMate HMI panels with OL4054/OL4058 RTU,for semiconductor wet bench and chemical delivery control cabinet I/O rack system.
