OPTIMATION OL2108 OL2108RB Relay Output Module

Module Feature

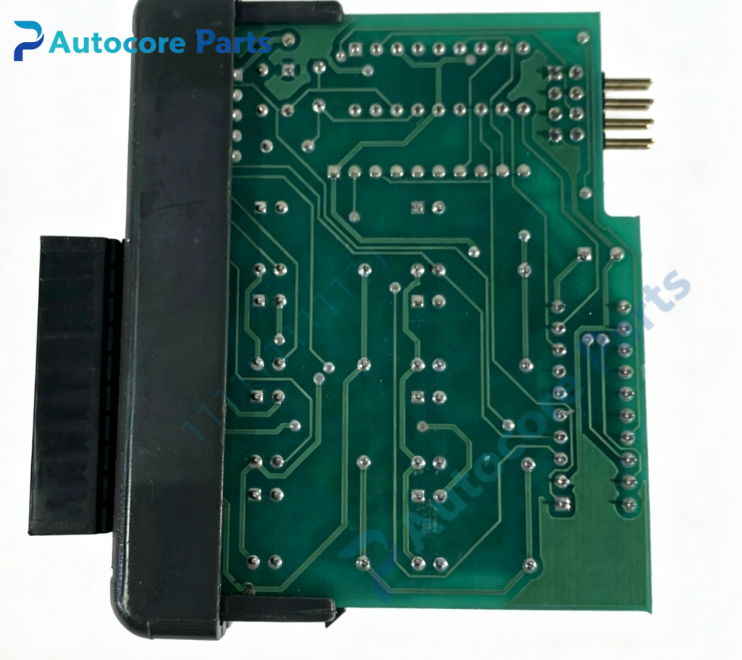

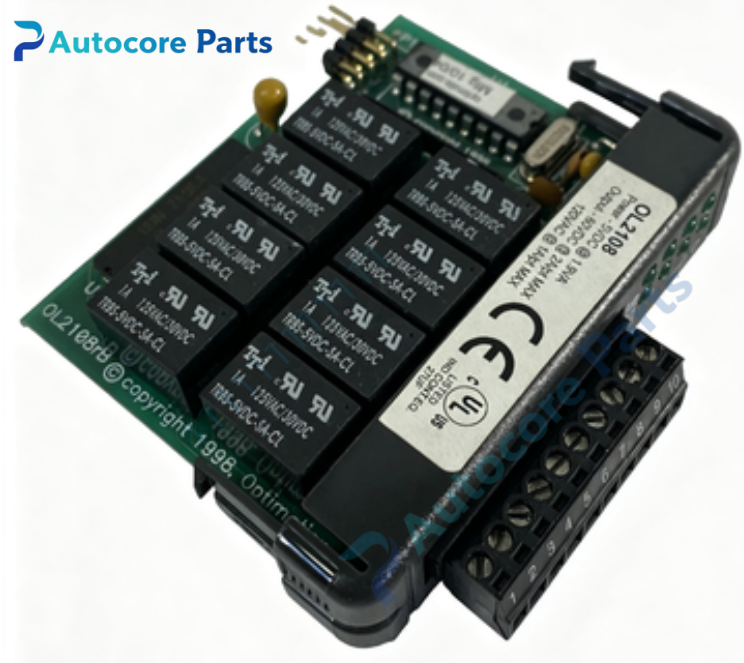

OPTIMATION OL2108 belongs to OptiLogic series 8-channel SPST mechanical relay output module. OL2108RB is the rugged enhanced variant with protective PCB conformal coating for humid chemical cabinets. Each relay provides isolated dry contact switching, resistive load rating 1A per channel at 24VDC /120VAC. Removable screw terminal block, independent LED status indicator for each channel. Standard OptiLogic form factor, pluggable into OL4228, OL4054 and other OptiLogic RTU racks. Widely used to control chemical valves, solenoids, alarm relays for semiconductor wet process and chemical delivery control systems.

Working principle: Host controller sends command through rack backplane bus, module activates corresponding mechanical relay. Relay contact closes or opens to switch external AC/DC field loads. OL2108RB extra coating protects circuit board against moisture and chemical vapor corrosion inside control cabinet. Onboard components: 8 SPST mechanical relays, surge absorption circuit, logic PCB, removable terminal block, backplane edge connector, front panel per-channel LED indicators

LED indicatorsIndividual channel ON/OFF status LED indicators on front panel

Hardware self-diagnosis

Visual inspection, relay switching test, contact continuity test, backplane communication and slot recognition verification

Programming software

OPTIMATION OL System Builder software for channel definition, fail-safe state setup and I/O tag mapping

Electrical & Process Parameters

Power supply:Supplied from rack backplane Output:8 channels SPST isolated mechanical relay contacts Contact rating:1A resistive per channel @24VDC / 120VAC Form factor:OptiLogic standard rack module Version difference:OL2108 standard; OL2108RB rugged with PCB conformal coating Terminal:Removable plug-in screw terminal block

Mechanical & Structure

Mounting:OptiLogic rack slot snap-in mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ (OL2108RB extended anti-corrosion coating) Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic relay output module

System compatibility

Compatible with OL4228, OL4054 OptiLogic RTU racks, matched with OPTIMATION HMI and PLC for discrete on-off field control.

Function

OL2108 / OL2108RB relay output module manufactured by OPTIMATION. It provides isolated relay contact outputs to switch field valves and actuators. OL2108RB conformal coating improves reliability under high humidity chemical cabinet environment. Relay contact wear or wiring overload will lead to channel burnout. It is discrete relay output component for wet bench automation control rack.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Insert module to empty rack slot and lock latches. Wire field load cables to removable terminal block, install terminal back onto module. Test all 8 relay channels before production startup.

InterfaceField wiring removable terminal block, OptiLogic backplane edge connector, per-channel status LED indicators on housing of OL2108 / OL2108RB.

Diagnostic

Channel cannot activate:Relay coil damage or backplane poor contact. Intermittent switching:Relay contact oxidation and wear. Module undetected:Bad backplane connector contact. Contact burnout:Overload or inductive surge without protection.

Product Brief

OL2108 OPTIMATION OptiLogic 8-channel SPST relay output module,OL2108RB rugged coated version,isolated dry contact 24VDC/120VAC 1A rating,for semiconductor wet bench chemical delivery system solenoid valve and safety alarm relay control.
