OPTIMATION OL0001 Blank Filler Card

Module Feature

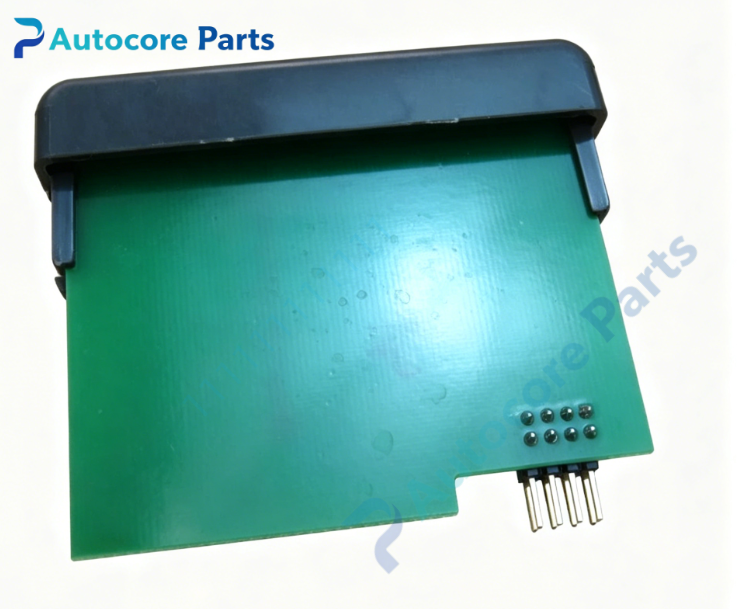

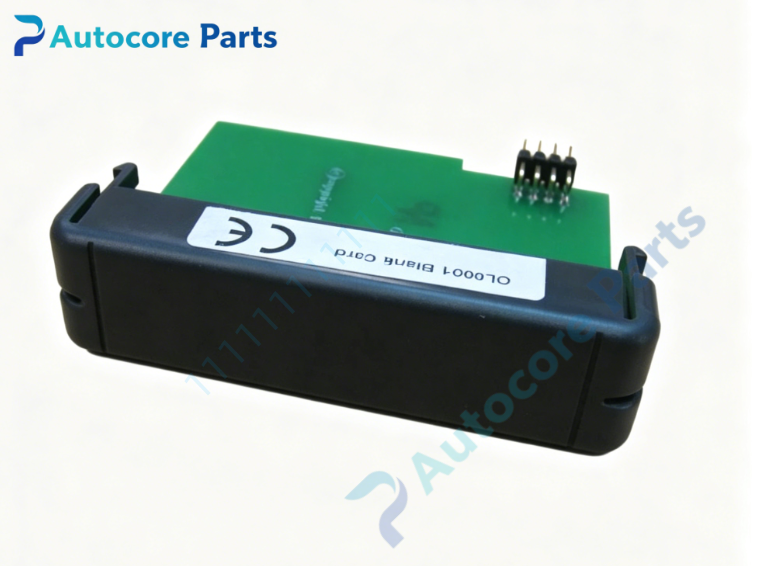

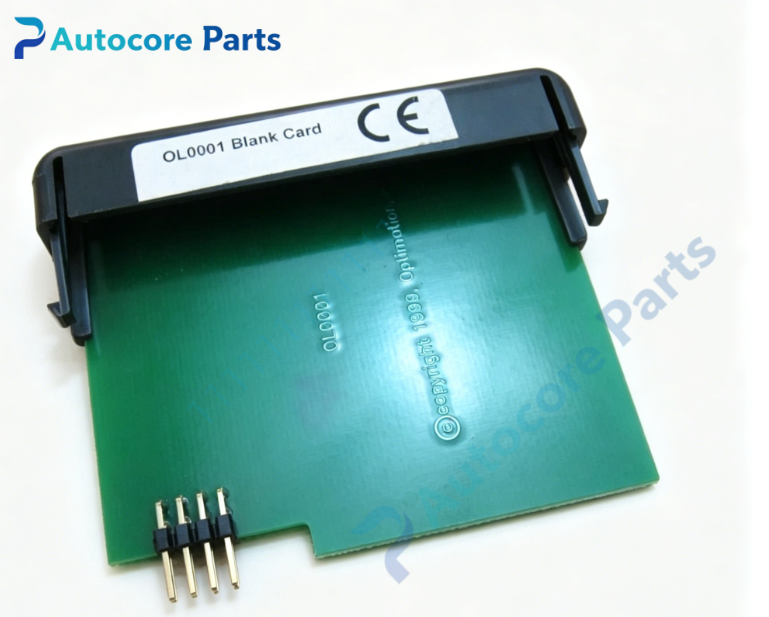

OPTIMATION OL0001 is OptiLogic blank filler card, dummy panel for empty rack slots of OL series RTU chassis such as OL4054, OL4058, OL4228. No electronic circuit, purely mechanical filler. It seals vacant module slots to preserve cabinet internal airflow, prevent chemical vapor and dust entering, and maintain EMI shielding integrity. Same mechanical form factor as standard OptiLogic I/O modules, snap-in locking latch for quick installation. Widely used in semiconductor wet bench and chemical delivery control cabinet.

Working principle: Installed into empty rack slot, blocking open slot opening. Preserves chassis air circulation, protects control cabinet atmosphere, reduces electromagnetic interference leakage. No bus signal interaction. Onboard components: Plastic front panel, metal mounting bracket, locking latch, no PCB or electronic components.

LED indicatorsNo LED indicators (dummy filler card)

Hardware self-diagnosis

Visual inspection, mechanical fit check, latch locking verification

Programming softwareNo configuration required, no software setup

Electrical & Process Parameters

Power supply:None (passive dummy filler) Function:Slot cover filler Form factor:Standard OptiLogic module size Mount type:OptiLogic rack slot snap-in mounting

Mechanical & Structure

Mounting:OptiLogic rack slot snap-in Protection class:IP20 when fully installed

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic blank filler card

System compatibility

Compatible with OL4054, OL4058, OL4228, OL4208 all OptiLogic RTU chassis.

Function

OL0001 blank filler card manufactured by OPTIMATION. It fills unused rack slots. Without filler card, cabinet airflow will be disturbed, dust and chemical vapor can enter and corrode active I/O modules. It is mandatory accessory for complete wet bench control cabinet assembly.

Installation

No power required for installation. Insert OL0001 into empty rack slot and lock the latch. Check front panel flush fit.

InterfaceNo electrical interface, only mechanical edge profile matching OptiLogic backplane slot.

Diagnostic

Loose filler:Locking latch not fully engaged. Poor fit:Wrong module form factor or bent rack guide rail.

Product Brief

OL0001 OPTIMATION OptiLogic blank filler card,mechanical dummy slot cover for OptiLogic I/O rack,maintain airflow and EMI shielding,for semiconductor wet bench and chemical delivery control cabinet unused slot sealing.
