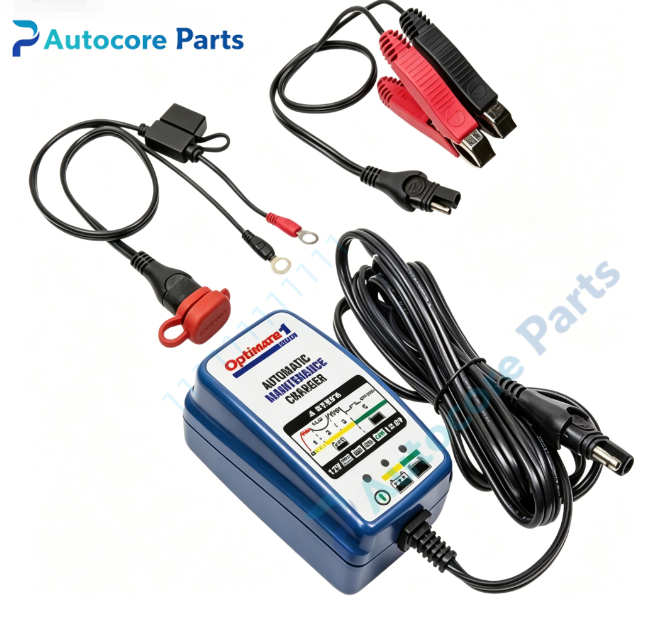

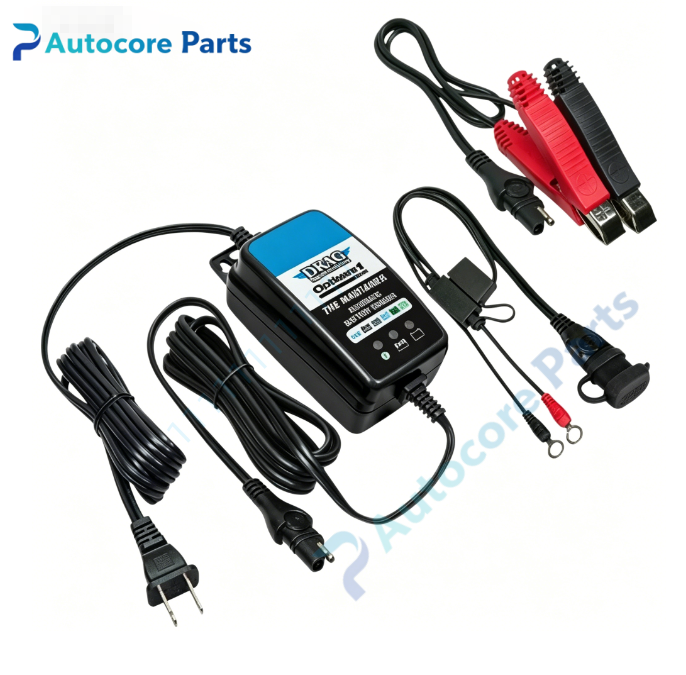

OPTIMATION 31670-BMS-004D Battery Maintainer

Module Feature

OptiMate 31670-BMS-004D is dual-chemistry automatic battery maintainer. It can automatically identify battery type and switch charging profile, compatible with 12V lead-acid batteries (AGM, STD, GEL) and 12.8V/13.2V LiFePO4 lithium batteries. Equipped with low-voltage rescue charging function to recover deeply discharged batteries. Built-in BMS protection logic, multi-stage charging cycle, automatically switch to float maintenance after full charge. Waterproof outer casing, suitable for cabinet installation. Widely used for backup battery maintenance in semiconductor wet bench and chemical delivery control cabinet.

Working principle: The charger detects battery voltage and internal state at startup, selects corresponding charging curve. Execute bulk charge, absorption charge and float maintenance sequentially. Once battery reaches full voltage, it enters low-current maintenance mode, compensates self-discharge. If battery voltage drops below threshold, it restarts charging cycle. Multiple safety protections stop charging on overvoltage, overheat or reverse connection. Onboard components:Main charger PCB, power input terminal, battery output cable, LED status indicator, overheat protection circuit

LED indicatorsMultiple LED indicators for power, charging progress, full charge, fault alarm.

Hardware self-diagnosis

Visual inspection for cable damage, insulation test, battery charging test, reverse polarity protection verification.

Programming softwareNo configuration software required.

Electrical & Process Parameters

Input voltage:100~240V AC Output:For 12V Lead Acid /12.8~13.2V LFP Charging method:Multi-stage automatic charging Protection:Over voltage, over current, over heat, reverse polarity protection

Mechanical & Structure

Mounting:Wall or cabinet mounting Housing:Waterproof plastic casing Protection class:IP54

Environmental

Operating temperature:-20℃ ~ +50℃ Ambient humidity:5~95% non-condensing Status:Industrial automatic battery maintainer

System compatibility

Compatible with control cabinet backup lead acid and LFP batteries for wet bench automation system.

Function

31670-BMS-004D battery maintainer manufactured by OptiMate. It keeps backup batteries fully charged and extends service life. Wrong battery type selection, reverse wiring or overheating will trigger protection and stop charging. It is backup battery maintenance accessory for wet bench automation control cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Disconnect battery before wiring. Connect charger output to battery terminals, connect AC power input. Verify LED status, confirm charging cycle runs normally.

InterfaceAC power input port, battery output terminals, status LED indicators on housing of 31670-BMS-004D.

Diagnostic

No charging:AC power missing or reverse polarity connection. Cannot fully charge:Battery aging or internal short. Fault LED on:Overheat, overvoltage or damaged battery cell. Intermittent charge:Cable loose or poor terminal contact.

Product Brief

31670-BMS-004D OptiMate automatic battery maintainer,supports 12V lead-acid and 12.8V/13.2V LFP lithium batteries,multi-stage charging with safety protection,for semiconductor wet bench and chemical delivery control cabinet backup battery maintenance.
