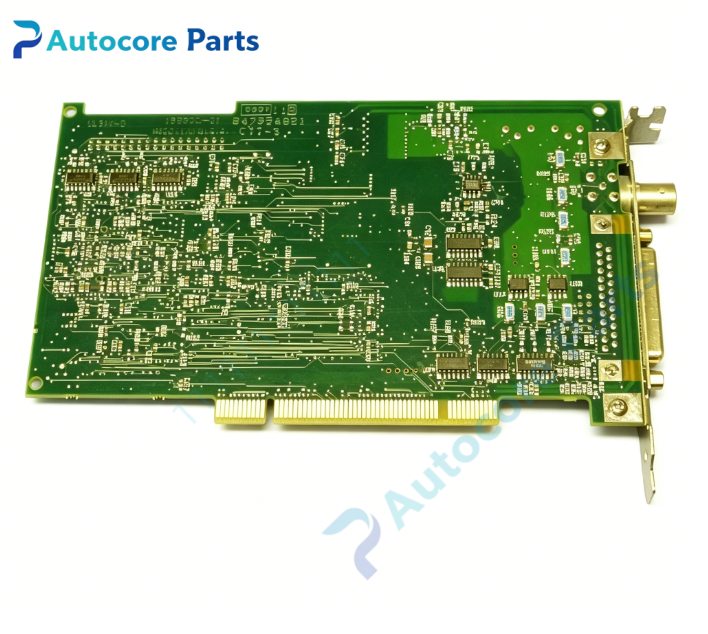

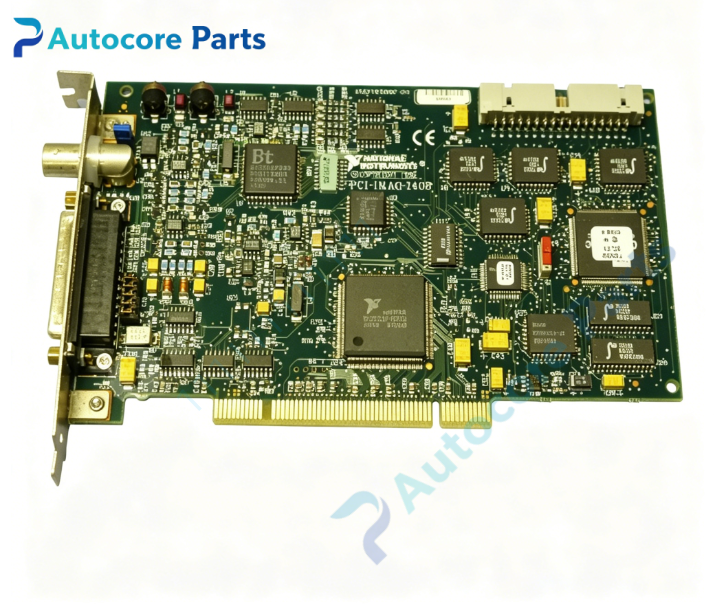

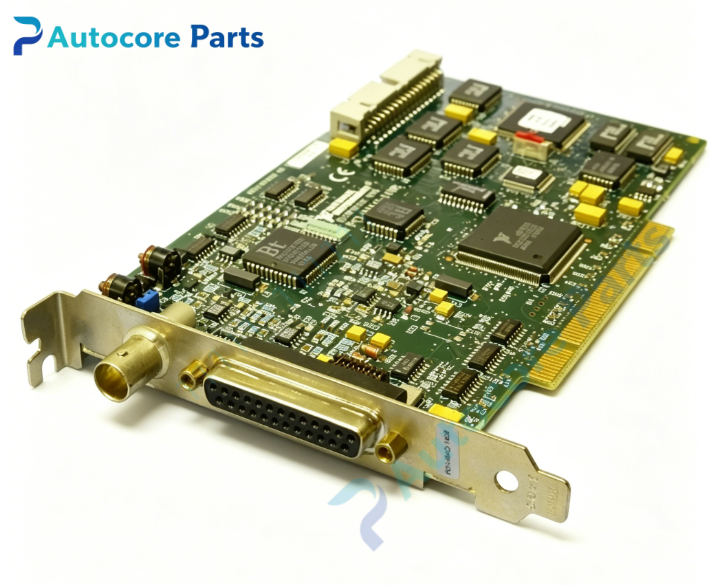

NI PCI-1408 PCI 4-Channel Monochrome Analog Video Frame Grabber Board

Technical Specifications

Model:PCI-1408

Brand:NI

Part No:778839-01

Product type:PCI Bus 4-Channel Monochrome Analog Video Frame Grabber

ADC:8-bit flash ADC

Video standard:RS-170,CCIR,NTSC,PAL,variable scan support

Video Input:4 channels monochrome analog video,75Ω input impedance

Buffer:4KB FIFO buffer

Pixel clock:max 16.4MHz

Onboard LUT:256×8bit lookup table for gamma & contrast adjustment

Function:ROI region capture,image scaling,hardware trigger

Synchronization:RTSI bus

Bus:PCI

Dimension:175mm106mm20mm

Weight:190g

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-1408 belongs to NI IMAQ vision hardware platform.It works with standard PCI industrial PC,driven by NI-IMAQ and Vision Acquisition Software,supported by LabVIEW,widely used for multi monochrome CCD camera image capture,multi-station product inspection and position recognition in legacy machine vision systems.It is spare part for legacy automation equipment overhaul.

Function

PCI-1408 is multi-channel monochrome analog frame grabber.It can switch and collect video signal from 4 analog monochrome cameras,8-bit ADC converts analog video to digital image.Hardware LUT supports real-time image contrast adjustment.ROI and scaling reduce data transmission load,RTSI bus realizes synchronous trigger with DAQ and motion hardware.

Installation

Insert PCI-1408 into computer PCI slot and fasten bracket.Connect monochrome camera to BNC ports.Install NI-IMAQ vision driver.Take ESD protection before installation.

Interface

‑4×BNC analog video input connectors

‑RTSI synchronization bus connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-1408 classic NI four-channel monochrome analog frame grabber board.Typical faults:BNC connector damage,ADC circuit failure,LUT memory error.Inspect camera signal and multi-channel image capture before replacement.

Diagnostic

Fault phenomenon:no image,channel signal loss,image distortion.Check BNC shielded cable,camera power supply,PCI slot contact,NI-IMAQ driver and RTSI sync configuration.

Product Brief

PCI-1408 is NI PCI 4-channel 8-bit monochrome analog frame grabber supporting RS-170,CCIR,NTSC and PAL standards,with ROI capture and hardware LUT,for multi-camera legacy machine vision inspection and old visual test equipment renovation.Mainly used for maintenance and replacement of old vision equipment.ESD protection must be followed during handling.
