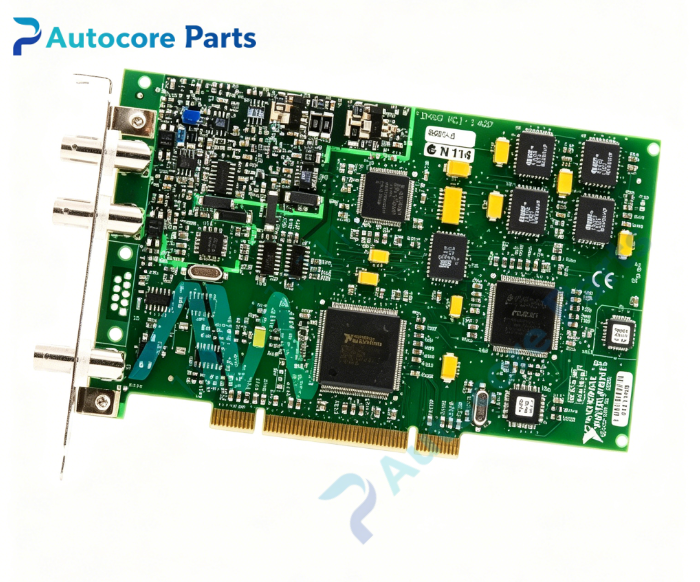

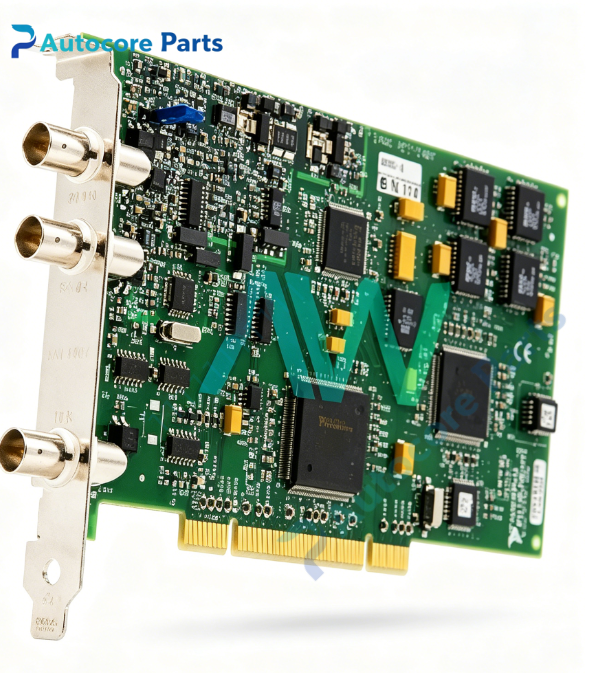

NI PCI-1407 PCI Monochrome Analog Video Frame Grabber Board

Technical Specifications

Model:PCI-1407

Brand:NI

Part No:778836-01

Product type:PCI Bus Monochrome Analog Video Frame Grabber

ADC:8-bit flash ADC

Video standard:RS-170(30fps),CCIR(25fps),supports progressive scan

Input:1 channel monochrome analog video,75Ω input impedance

Buffer:4KB FIFO buffer

Pixel clock:11.66~15.78MHz

Function:ROI region capture,pixel/line scaling,hardware trigger

Synchronization:RTSI bus

Bus:PCI

Dimension:175mm107mm20mm

Weight:130g

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:5~90% non-condensing

Certification:CE

System compatibility

PCI-1407 belongs to NI IMAQ vision hardware platform.It fits standard PCI industrial PC,driven by NI-IMAQ and Vision Acquisition Software,supported by LabVIEW,widely used for monochrome analog CCD camera image capture,product visual inspection and position recognition in legacy machine vision systems.It is spare part for legacy automation equipment overhaul.

Function

PCI-1407 is monochrome analog image acquisition board.It converts analog monochrome video signal to digital image by 8-bit flash ADC.Supports ROI partial capture and pixel scaling.RTSI bus realizes hardware synchronous trigger with DAQ and motion hardware,adopts scatter-gather DMA for stable high-speed image transmission.

Installation

Insert PCI-1407 into computer PCI slot and fasten bracket.Connect monochrome analog camera to BNC port.Install NI-IMAQ vision driver.Take ESD protection before installation.

Interface

‑BNC analog video input connector

‑RTSI synchronization bus connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-1407 classic NI monochrome analog frame grabber board.Typical faults:BNC connector damage,ADC circuit drift,failure of DMA transmission.Inspect camera signal and image capture before replacement.

Diagnostic

Fault phenomenon:no image output,image distortion,frame loss.Check BNC shielded cable,camera power supply,PCI slot contact,NI-IMAQ driver and RTSI sync parameter.

Product Brief

PCI-1407 is NI PCI 8-bit monochrome analog frame grabber supporting RS-170 and CCIR video standards,with ROI capture and RTSI synchronization,for legacy monochrome CCD machine vision,image sampling and visual inspection equipment renovation.Mainly used for maintenance and replacement of old vision equipment.ESD protection must be followed during handling.
