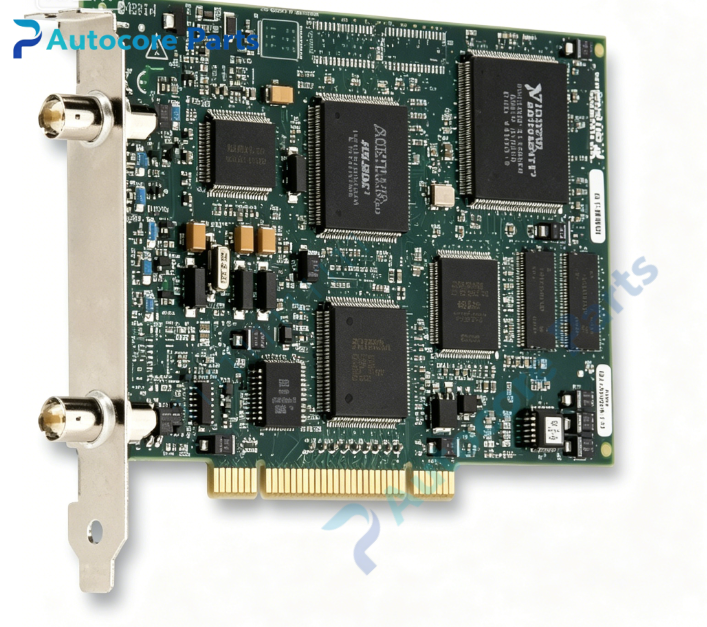

NI PCI-1405 PCI Analog Camera Image Acquisition Frame Grabber Board

Technical Specifications

Model:PCI-1405

Brand:NI

Part No:778838-01

Product type:PCI Bus Analog Video Frame Grabber

Resolution:8-bit monochrome / color

Video standard:NTSC 30fps, PAL 25fps, RS-170, CCIR

Onboard memory:16MB

Connector:2×BNC composite video, RTSI synchronization port

Pixel clock:max 25MHz

Digital I/O:2 input,2 output

Bus:PCI

Dimension:175mm107mm20mm

Weight:0.136kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:5~90% non-condensing

Certification:CE

System compatibility

PCI-1405 belongs to NI vision hardware platform.It works with standard PCI industrial PC,driven by NI-IMAQ and Vision Acquisition Software,supported by LabVIEW,widely used for analog camera image capture,product defect detection and visual inspection in legacy machine vision systems.It is spare part for legacy automation equipment overhaul.

Function

PCI-1405 is low-cost PCI analog image acquisition board.It collects real-time video signal from analog cameras,supports ROI partial capture and programmable gain/offset.RTSI bus realizes synchronous trigger with DAQ and motion hardware,16MB onboard buffer ensures stable image transmission for visual inspection.

Installation

Insert PCI-1405 into computer PCI slot and fasten bracket.Connect analog camera to BNC port.Install NI-IMAQ vision driver.Take ESD protection before installation.

Interface

‑2×BNC composite video connectors

‑RTSI synchronization bus connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-1405 classic NI analog frame grabber board.Typical faults:BNC connector damage,frame memory failure,video decoding circuit drift.Inspect camera signal and image capture before replacement.

Diagnostic

Fault phenomenon:no image,blurry picture,frame loss.Check BNC cable,camera power,PCI slot contact,NI-IMAQ driver and RTSI sync configuration.

Product Brief

PCI-1405 is NI PCI analog video frame grabber board supporting NTSC/PAL analog cameras,with 16MB onboard memory and RTSI synchronization,for legacy industrial machine vision,image capture and automated visual inspection renovation.Mainly used for maintenance and replacement of old vision equipment.ESD protection must be followed during handling.
