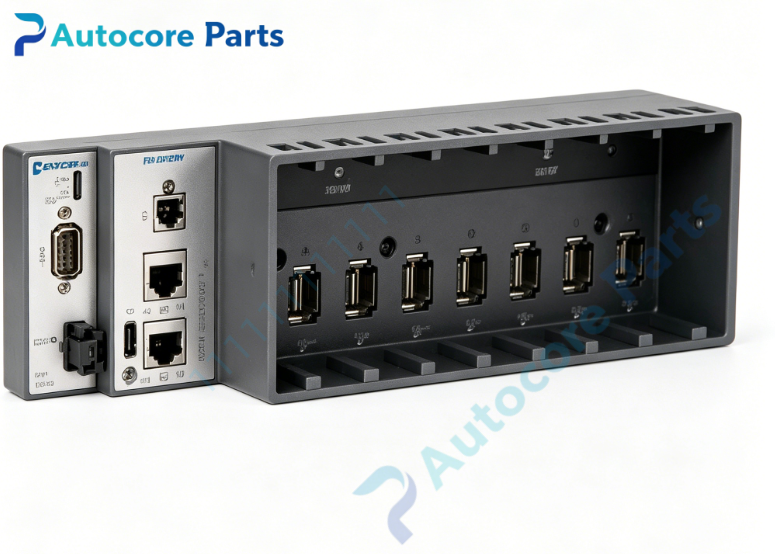

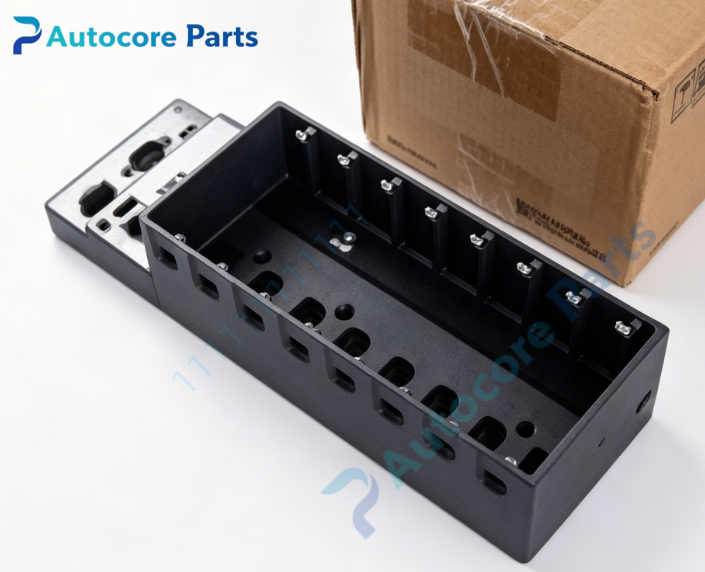

NI cRIO-9067 CompactRIO Zynq Real-Time 8-Slot Controller

Technical Specifications

Model:cRIO-9067

Brand:NI

Part No:783170-01

Product type:CompactRIO Zynq Real-Time Embedded Controller

SoC:Xilinx Zynq XC7Z020,667MHz dual-core Cortex-A9

FPGA:XC7Z020,85000 logic cells

Memory:512MB DDR3 DRAM

Storage:1GB NAND Flash

Ports:2×Gigabit Ethernet,1×USB2.0 host,1×USB2.0 device,1×RS232

Power input:9~30VDC

Power consumption:11W typical

Dimension:130mm127mm40mm

Weight:0.48kg

Operating temperature:-40℃ ~ +70℃

Storage temperature:-55℃ ~ +85℃

Relative humidity:10~90% non-condensing

Certification:CE,UL

System compatibility

cRIO-9067 belongs to NI CompactRIO platform.It integrates 8-slot C-series I/O chassis,runs NI Linux Real-Time OS,supports LabVIEW FPGA and Scan Interface,widely used for high-speed control,data acquisition and test systems.It is spare part for legacy automation equipment overhaul.

Function

cRIO-9067 is fanless rugged integrated CompactRIO controller with built-in 8-slot I/O slots.The Zynq SoC combines real-time processor and reconfigurable FPGA to realize high-speed deterministic control.Two Gigabit Ethernet ports support industrial communication for harsh field environments.

Installation

Mount cRIO-9067 on DIN rail or panel,tighten mounting screws.Connect 9~30VDC power and network cables.Take ESD protection before installation.

Interface

‑Dual Gigabit Ethernet RJ45 ports

‑USB2.0 host & device port

‑RS232 serial port

‑DC power screw terminals

‑Status LED indicators

Feature

cRIO-9067 classic NI integrated CompactRIO controller.Typical faults:flash storage failure,Ethernet port damage,FPGA circuit fault.Inspect power and communication ports before replacement.

Diagnostic

Fault phenomenon:boot failure,network drop,unable to deploy RT program.Check power supply,cable connection,module status LED and I/O backplane communication.

Product Brief

cRIO-9067 is NI 8-slot integrated CompactRIO controller with Zynq XC7Z020 SoC,dual-core 667MHz ARM,512MB DRAM and dual GigE,fanless wide-temperature design for industrial high-speed control and data acquisition.Mainly used for maintenance and replacement of old industrial automation equipment.ESD protection must be followed during handling.
