NI cRIO-9014 CompactRIO 400MHz Real-Time Embedded Controller

Technical Specifications

Model:cRIO-9014

Brand:NI

Part No:779564-01,779564-02,781624-01

Product type:CompactRIO Real-Time Embedded Controller

Processor:400 MHz Freescale PowerPC MPC5200

Memory:128 MB DRAM

Storage:2 GB non-volatile flash storage

Ports:1×10/100Mbps Ethernet,1×USB,1×RS232 serial

Power input:9~35VDC power-up,6~35VDC operating,dual power input

Power consumption:11W typical

Dimension:117mm107mm40mm

Weight:0.5kg

Operating temperature:-40℃ ~ +70℃

Storage temperature:-55℃ ~ +85℃

Relative humidity:10~90% non-condensing

Certification:CE,UL,ATEX,ABS marine certified

System compatibility

cRIO-9014 belongs to NI CompactRIO platform.It needs to work with compatible CompactRIO chassis and C Series I/O modules,runs LabVIEW Real-Time,suitable for deterministic control,data logging and monitoring in industrial automation systems.It is spare part for legacy automation equipment overhaul.

Function

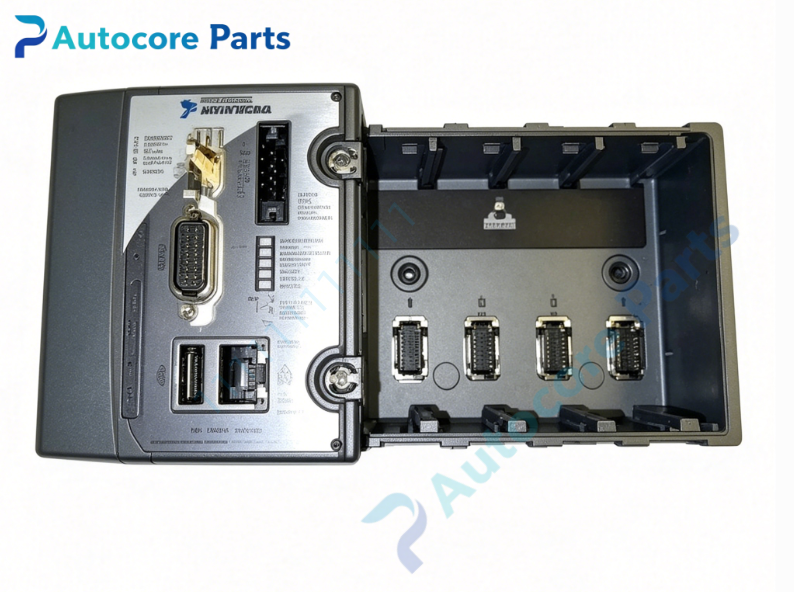

cRIO-9014 is fanless rugged embedded real-time controller for CompactRIO system.It executes LabVIEW real-time application for deterministic control and data recording.Equipped with Ethernet,USB and serial ports for communication,wide temperature design adapts to harsh industrial field environment.

Installation

Mount cRIO-9014 onto compatible CompactRIO chassis,tighten mounting screws.Connect DC power and communication cables.Take ESD protection before installation.

Interface

‑10/100Mbps Ethernet port

‑USB host port

‑RS232 serial port

‑Dual DC power screw terminals

‑Status LED indicators

Feature

cRIO-9014 classic NI CompactRIO real-time controller.Typical faults:power circuit damage,flash storage failure,communication port damage.Inspect power and communication ports before replacement.

Diagnostic

Fault phenomenon:controller fails to boot,network disconnect,unable to deploy RT program.Check power supply,cable connection,chassis communication and module status LED.

Product Brief

cRIO-9014 is NI CompactRIO fanless real-time embedded controller with 400MHz PowerPC,128MB DRAM and 2GB flash storage,supporting LabVIEW RT for industrial deterministic control and data acquisition.Mainly used for maintenance and replacement of old industrial automation equipment.ESD protection must be followed during handling.
