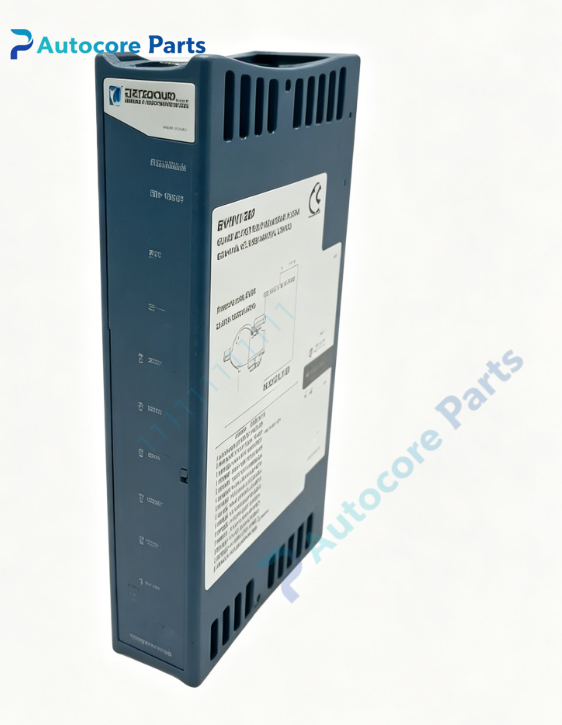

NI cFP-TC-125 Compact FieldPoint 8-Channel 16-Bit Thermocouple Input Module

Technical Specifications

Model:cFP-TC-125

Brand:NI

Part No:cFP-TC-125

Product type:Compact FieldPoint 8-Channel 16-Bit Thermocouple Input Module

Resolution:16-bit delta-sigma ADC

Channels:8 differential input channels

Supported thermocouple types:J,K,R,S,T,N,E,B

mV input range:-20~80mV

Isolation:250Vrms CAT II bank isolation,2300Vrms transient withstand

Filter:software configurable 50Hz/60Hz noise rejection

Update speed:0.22s(filter off),0.99s(filter on)

Diagnostic:thermocouple break detection

Power consumption:0.38W

Dimension:109.5mm91.4mm25.4mm

Weight:0.11kg

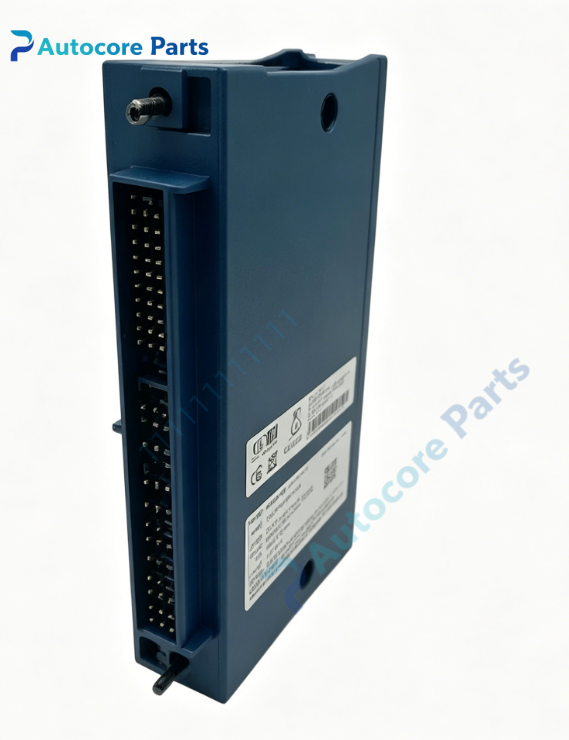

Interface:Screw terminal I/O,Compact FieldPoint backplane connector

Operating temperature:-40℃ ~ +70℃

Storage temperature:-55℃ ~ +85℃

Relative humidity:10~90% non-condensing

Certification:CE,Class I Division 2

System compatibility

cFP-TC-125 belongs to NI Compact FieldPoint platform.It works with cFP series backplanes and real-time controllers,supported by LabVIEW and NI FieldPoint drivers,widely used for furnace,pipe and equipment temperature monitoring.It is spare part for legacy automation equipment overhaul.

Function

cFP-TC-125 is hot-swappable 8-channel thermocouple input module for Compact FieldPoint system.It supports 8 common thermocouple types and millivolt signal acquisition,with built-in cold junction compensation and sensor linearization.Break wire detection helps diagnose faulty probes,supports hot swap replacement without system shutdown.

Installation

Insert cFP-TC-125 into Compact FieldPoint backplane,tighten captive mounting screws.Wire thermocouple cables to front screw terminals.Take ESD protection before installation,supports hot swap operation.

Interface

‑Front screw terminal block for thermocouple sensor wiring

‑Compact FieldPoint backplane connector

‑POWER,READY and module fault LED indicators

Feature

cFP-TC-125 classic NI thermocouple temperature I/O module.Typical faults:terminal block corrosion,ADC circuit damage,backplane pin oxidation.Inspect terminals and test temperature reading before replacement.

Diagnostic

Fault phenomenon:temperature reading drift,intermittent signal,open sensor alarm.Check wiring and terminal tightness,thermocouple probe integrity,verify backplane communication and module status LED.

Product Brief

cFP-TC-125 is NI Compact FieldPoint 8-channel 16-bit thermocouple input module,supporting J/K/R/S/T/N/E/B thermocouple and mV signals,built-in cold junction compensation,250Vrms isolation,hot swappable for industrial temperature acquisition.Mainly used for maintenance and replacement of old industrial automation equipment.ESD protection must be followed during handling.
