NI CVS-1454 Compact Real-Time Compact Vision System

Technical Specifications

Model:CVS-1454

Brand:NI

Part No:188610-01

Product type:Compact Real-Time Machine Vision System

Processor:833 MIPS real-time processor

Memory:128 MB DRAM

Storage:32 MB non-volatile flash

Camera interface:3×IEEE1394a (FireWire),support IIDC compliant cameras

I/O:29 TTL digital I/O,isolated input/output

Ports:10/100 Ethernet,VGA video output,RS232 serial port

Power input:9~30VDC

Power consumption:12W typical

Dimension:170mm122mm62mm

Weight:0.82kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-55℃ ~ +85℃

Relative humidity:10~90% non-condensing

Certification:CE,UL

System compatibility

CVS-1454 belongs to NI CVS compact vision platform.It runs LabVIEW Real-Time and NI Vision software,supports up to 3 IEEE1394 cameras,can connect with Compact FieldPoint modules,widely used for part positioning,defect detection and dimension measurement in factory automated inspection.It is spare part for legacy automation equipment overhaul.

Function

CVS-1454 is rugged real-time embedded vision controller for industrial inspection.It captures and processes image from FireWire cameras,executes vision algorithms and triggers digital I/O signals for pass/fail judgment.Ethernet for data upload,RS232 for PLC communication,VGA port for on-site image preview.

Installation

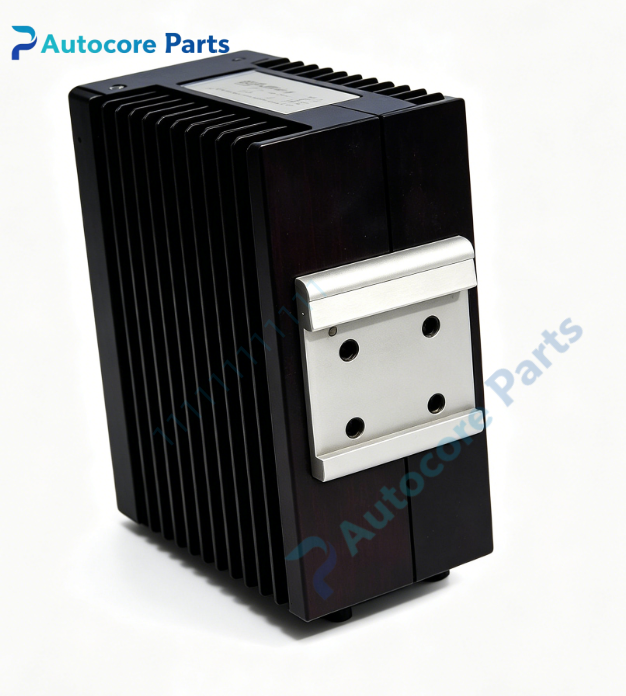

Mount CVS-1454 on DIN rail or panel,tighten mounting screws.Connect DC power,1394 camera cable,network and I/O wiring.Take ESD protection before installation.

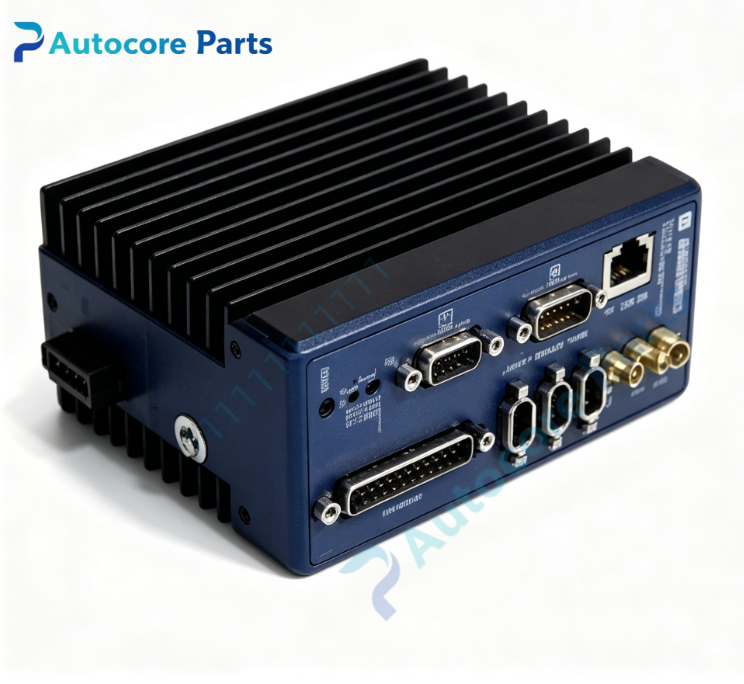

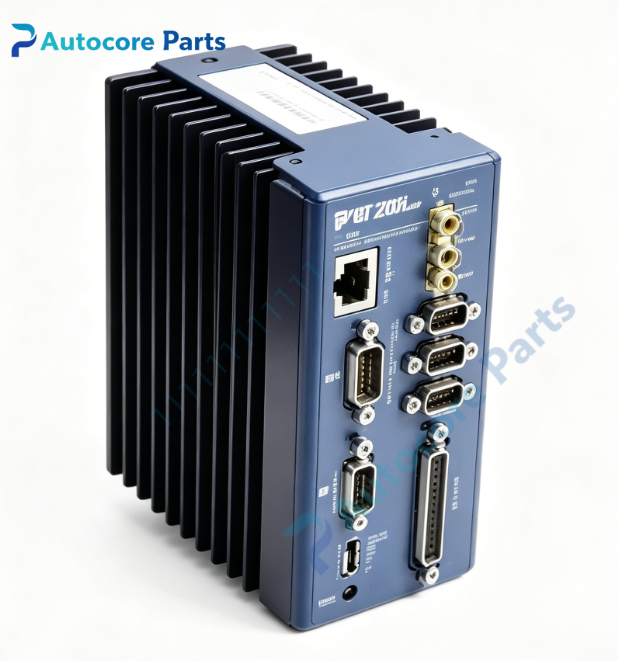

Interface

‑3×IEEE1394a camera ports

‑10/100Mbps Ethernet RJ45

‑VGA display port

‑RS232 DB9 serial port

‑Digital I/O terminal block

‑DC power terminals

‑Status LED indicators

Feature

CVS-1454 classic NI compact machine vision system.Typical faults:1394 port damage,flash failure,I/O circuit fault.Inspect camera interface and power before replacement.

Diagnostic

Fault phenomenon:no image acquisition,vision program crash,I/O no response.Check power supply,camera cable,network connection and module status LED.

Product Brief

CVS-1454 is NI compact real-time vision system with 833MIPS processor,supporting 3 FireWire cameras and 29-channel digital I/O,running LabVIEW RT for factory automated visual inspection and quality checking.Mainly used for maintenance and replacement of old industrial automation equipment.ESD protection must be followed during handling.
