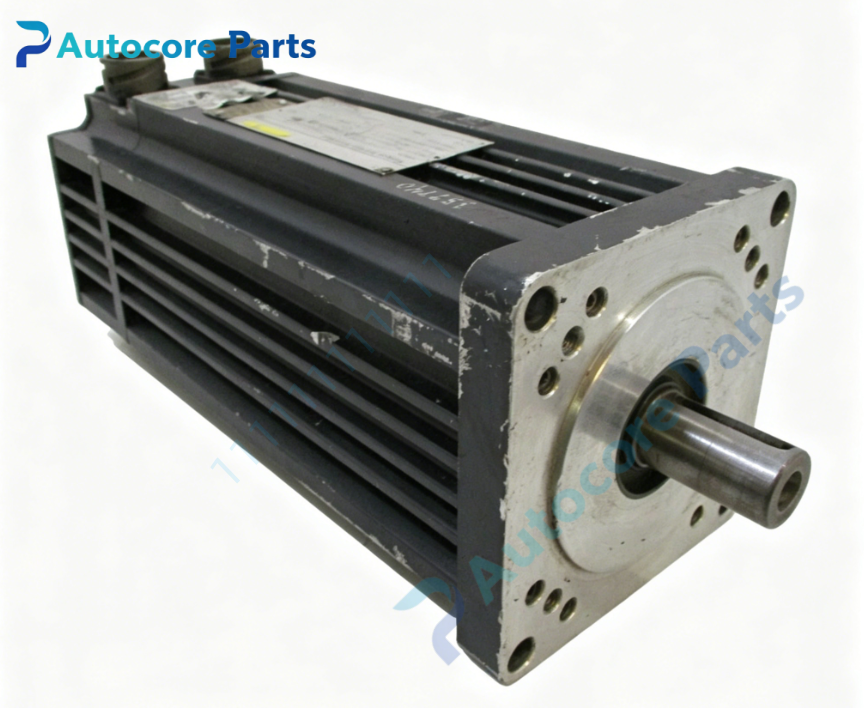

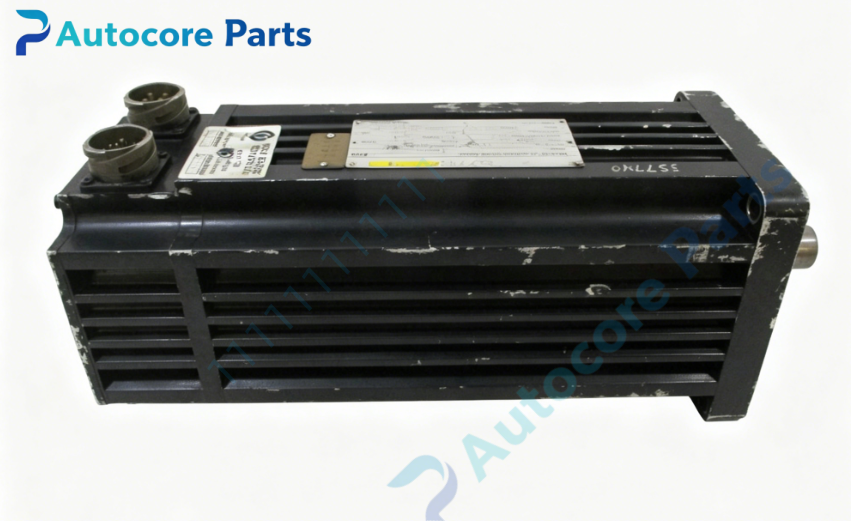

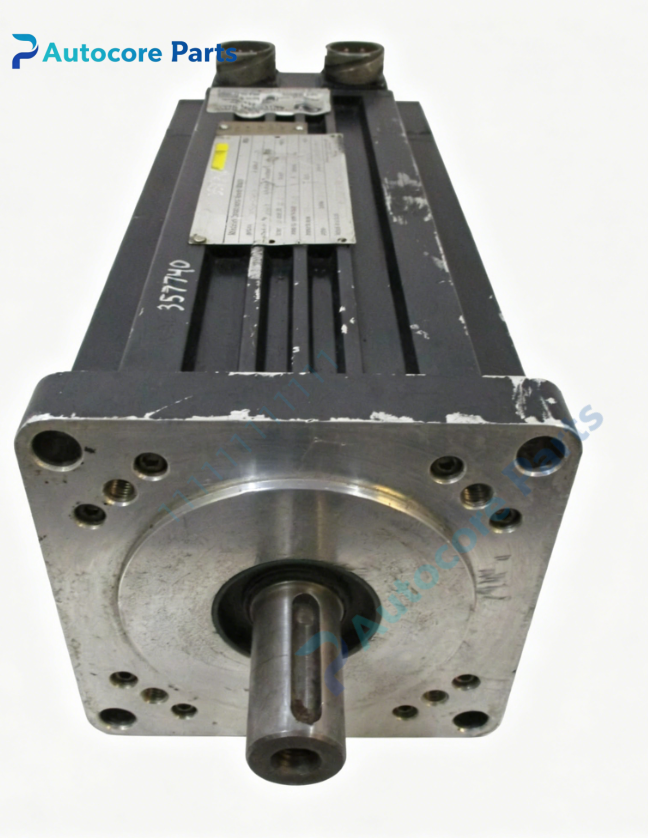

Modicon S74D-PB0-F0V0 Servo Motor

Technical SpecificationsModel:S74D-PB0-F0V0 Brand:Schneider Electric Product Type:S74D Series Brushless Permanent Magnet Servo Motor Rated Power:0.75HP Motor Type:Brushless PM servo,built-in holding brake Feedback:Integrated encoder Mounting:Flange mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:4.2kg Dimension:172mm110mm140mm Protection:IP65

System compatibilityS74D-PB0-F0V0 belongs to Schneider Modicon S74D classic servo motor series. Compatible with matching Modicon servo drive and motion control PLC system. Suitable for packaging machinery, textile equipment, automated assembly lines requiring position holding during power loss, used for high-precision positioning renovation and replacement as industrial spare part.

FunctionS74D-PB0-F0V0 permanent magnet brushless servo motor with holding brake. It converts electrical control signals into precise rotary mechanical motion, realizes speed, position and torque closed-loop control. Built-in encoder feeds back position signal to servo drive for positioning accuracy. Integrated power-off holding brake locks motor shaft when power cuts off to prevent axis sliding. Widely used for high-precision motion control and position locking of automation equipment, serving as reliable motion spare part.

InstallationCut off drive and brake power before installation. Fix the S74D-PB0-F0V0 servo motor by flange mounting. Connect motor power cable, encoder feedback cable and brake cable to servo drive. Perform servo parameter tuning, brake function test and homing test before formal operation.

InterfaceMotor power connector,encoder feedback connector,brake power connector for S74D-PB0-F0V0 Schneider servo motor.

FeatureSchneider S74D-PB0-F0V0 brushless servo motor with power-off holding brake,compact structure,high torque density,closed-loop encoder feedback,stable low-speed running,good overload capacity,shaft brake for position retention,IP65 housing protection for workshop environment. This discontinued legacy industrial spare part used for old Modicon motion automation system maintenance and replacement.

DiagnosticMotor no rotation: check power wiring,encoder cable connection and servo enable signal for S74D-PB0-F0V0. Positioning deviation: inspect encoder fault,parameter setting and mechanical load stuck. Motor overheat alarm: check overload,ventilation condition and power supply abnormality. Vibration and noise: check coupling alignment,mechanical resonance and bearing wear. Brake failure or cannot release: inspect brake power supply and brake coil damage.

Product BriefS74D-PB0-F0V0 is Schneider Modicon S74D series 0.75HP brushless servo motor with built-in holding brake. Equipped with encoder for closed loop position control and power-off shaft locking,used for automated machinery high-precision motion control,classic spare part for legacy industrial motion equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
