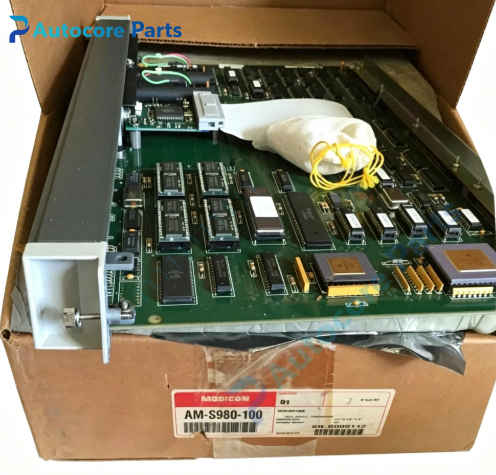

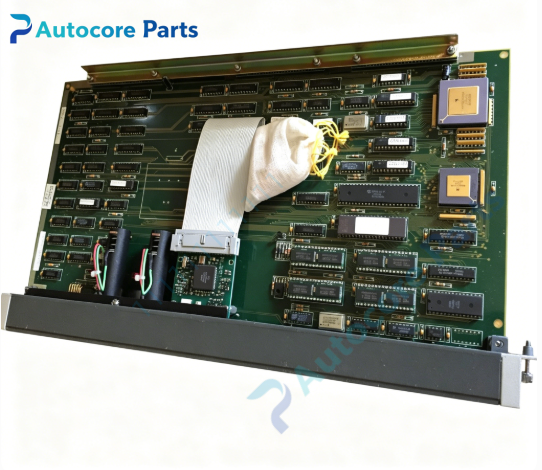

MODICON AM-S980-100 Network Interface Controller

Technical SpecificationsModel:AM-S980-100 Brand:MODICON(Schneider) Product Type:984 Series MAP 3.0 Network Interface Controller Module Communication:MAP 3.0 industrial fieldbus Backplane Bus:Modicon 984 backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +40℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~80%, non-condensing Weight:1.56kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityAM-S980-100 belongs to MODICON 984 series MAP3.0 network interface module. Compatible with MODICON 984 CPU,984 backplane and series I/O modules. It connects multiple PLC racks and automation nodes via MAP3.0 bus. Suitable for chemical plant,water treatment,power plant,large process control distributed network communication renovation and replacement as industrial spare part.

FunctionAM-S980-100 MAP3.0 network interface controller. It acts as communication gateway for Modicon 984 PLC,realizes data interaction between local CPU and remote racks/other PLC stations over MAP3.0 bus. It processes bus protocol,transmits I/O data,alarm messages and program information. Built-in bus communication monitoring,module self-diagnosis and offline fault alarm function. Widely used for multi-rack distributed networking of legacy Modicon 984 automation system, serving as reliable network communication spare part.

InstallationCut off rack power before installation. Insert AM-S980-100 module into MODICON 984 backplane slot and lock the card. Check gold finger contact condition. Connect MAP3.0 shielded bus cable. Configure network station address and bus parameters,complete online communication test before formal operation.

InterfaceBackplane bus connector,MAP3.0 fieldbus port,run/fault/bus status LED indicators for AM-S980-100 MODICON network interface module.

FeatureMODICON AM-S980-100 MAP3.0 communication module,high speed industrial fieldbus,multi-node networking capability,hardware bus diagnostic,standard single slot rack design,industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON 984 PLC system network communication maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for AM-S980-100. Bus offline: inspect MAP3.0 bus cable,termination resistor,shield grounding and station address. Intermittent communication: check electromagnetic interference and connector loose. Bus overload alarm: verify number of network nodes and cable damage. LED fault warning: check module hardware damage and backplane power stability.

Product BriefAM-S980-100 is MODICON 984 series MAP3.0 network interface controller module. It realizes multi-rack distributed bus communication for Modicon 984 PLC system,classic spare part for legacy MODICON large industrial automation control system overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
