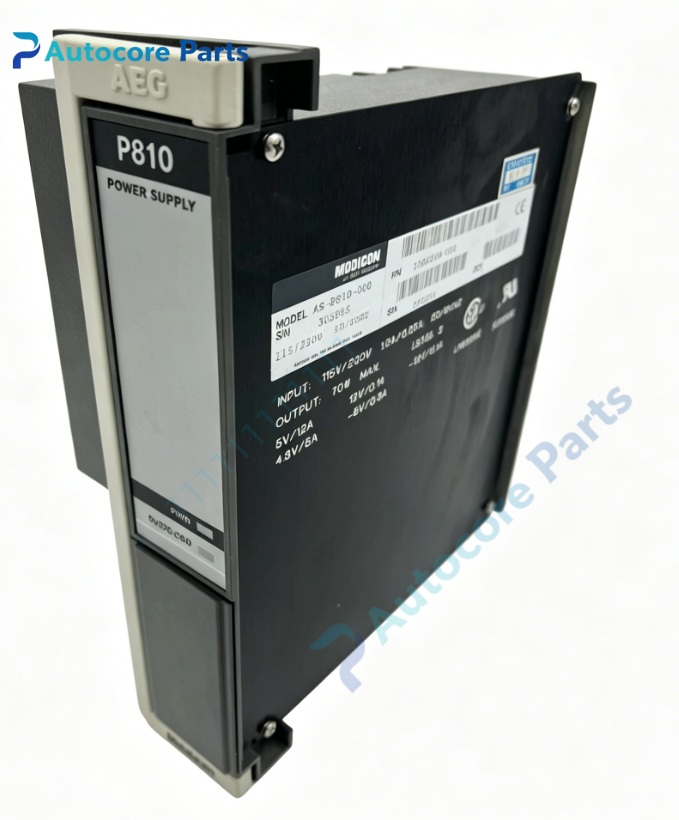

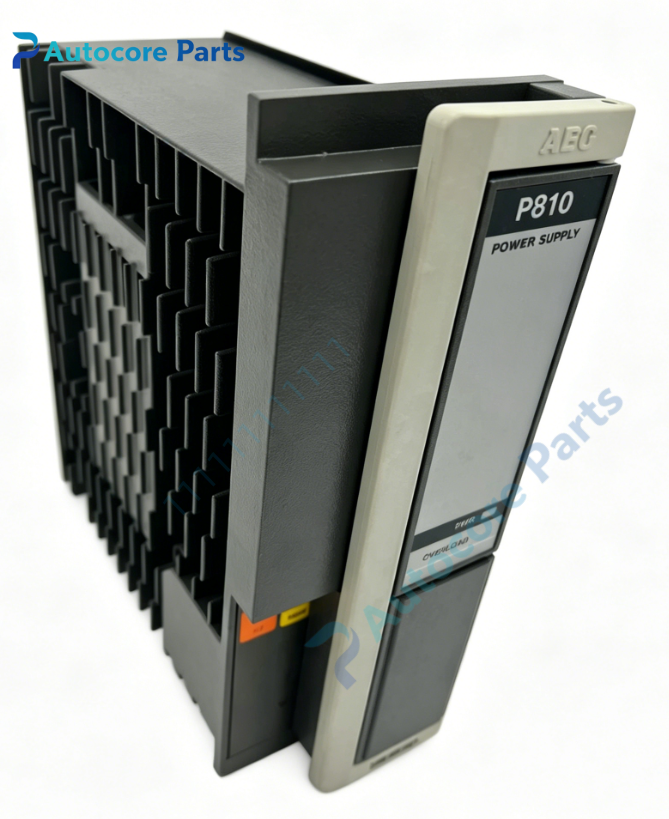

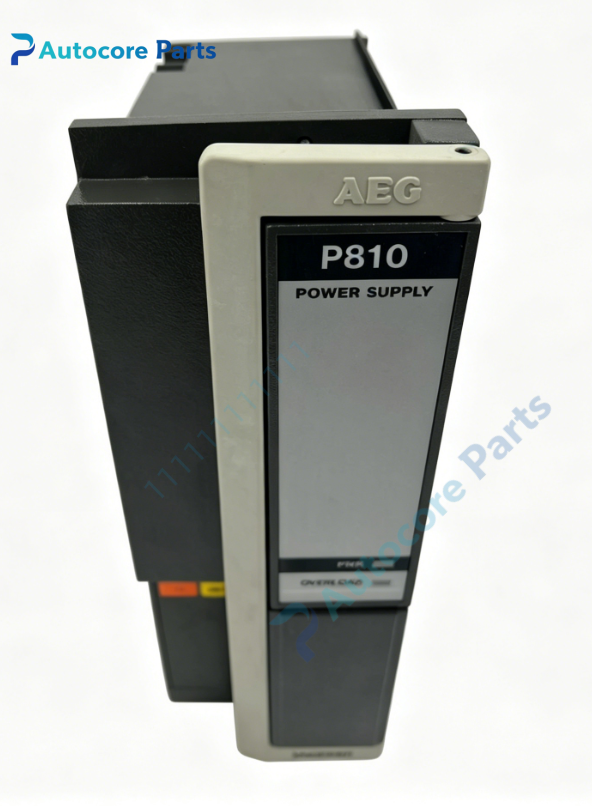

MODICON AS-P810-000 Power Supply Module

Technical SpecificationsModel:AS-P810-000 Brand:MODICON (AEG) Product Type:984 Series Rack Power Supply Module Input Voltage:120/240V AC,50/60Hz Output:5V DC for backplane bus Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:2.5kg Dimension:270mm210mm100mm Protection:IP20

System compatibilityAS-P810-000 belongs to MODICON 984 series P810 rack power supply. Compatible with MODICON 984 series CPU,backplane and 800 series I/O modules. It supplies stable 5VDC power to rack backplane for CPU and all inserted I/O cards. Suitable for chemical,water treatment,metallurgy,old production line classic MODICON 984 PLC system renovation and replacement as industrial spare part.

FunctionAS-P810-000 rack power supply unit. It converts AC mains input into regulated 5V DC power to feed the rack backplane,provides power for CPU,memory and I/O modules. Built-in overvoltage,overcurrent and short circuit protection. It monitors internal power status and sends fault alarm when abnormality occurs. Widely used for MODICON 984 PLC rack power supply, serving as reliable power spare part.

InstallationCut off main AC power before installation. Insert the AS-P810-000 power supply module into MODICON rack backplane slot and lock the unit. Check backplane gold finger contact. Connect AC input cable to module terminal,complete insulation test and power-on test before formal operation.

InterfaceAC input terminal block,backplane bus connector,power status and fault LED indicators for AS-P810-000 MODICON rack power supply module.

FeatureAEG MODICON AS-P810-000 P810 rack power supply,wide AC input range,regulated 5V DC output,multiple built-in protection functions,real-time power status monitoring,stable anti-interference performance for industrial workshop environment,standard rack single slot design,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON 984 PLC rack power maintenance and replacement.

DiagnosticModule no power output: check AC input power supply,fuse and terminal loose fault for AS-P810-000. Power fault LED on: inspect overcurrent,short circuit or overvoltage triggered protection. Intermittent power drop: check AC input fluctuation,connector loose and internal component aging. Backplane no power: verify backplane contact and module insertion. Fault alarm: read module diagnostic information through Modsoft programming software.

Product BriefAS-P810-000 is AEG MODICON 984 series P810 rack power supply module. It converts 120/240VAC to 5VDC to supply power for 984 PLC rack CPU and I/O cards,classic spare part for legacy MODICON 984 automation equipment overhaul.
