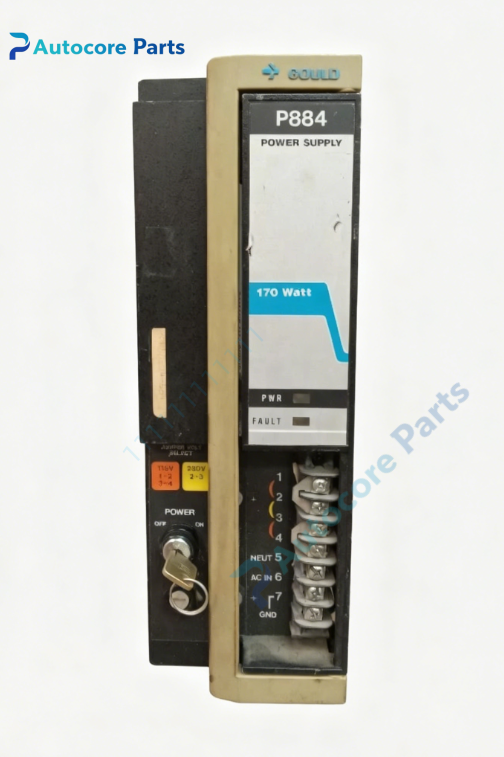

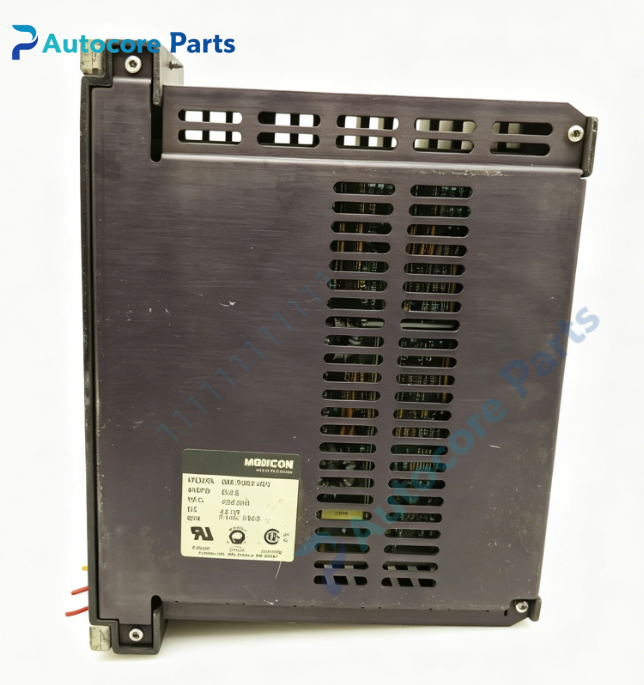

AEG MODICON MA-P884-001 Power Supply Module

Technical SpecificationsModel:MA-P884-001 Brand:AEG MODICON Product Type:884 Series 170W Rack Power Supply Module Input Voltage:120/240V AC,50/60Hz Output:5V DC,2.5A Rated Power:170W Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:2.6kg Dimension:268mm142mm32mm Protection:IP20

System compatibilityMA-P884-001 belongs to MODICON 884 series P884 rack power supply. Compatible with MODICON 884 series CPU,backplane and matching I/O modules. It supplies stable 5V DC power to rack backplane for processor and I/O cards. Suitable for chemical,water treatment,metallurgy,old production line MODICON 884 PLC system renovation and replacement as industrial spare part.

FunctionMA-P884-001 rack power supply unit. It converts AC input into regulated 5V DC power for the PLC rack backplane,provides power for CPU,memory and all I/O modules in the rack. Built-in overvoltage,overcurrent and short circuit protection. It monitors internal power status and triggers fault alarm when abnormal condition occurs. Widely used for MODICON 884 PLC rack power supply, serving as reliable power spare part.

InstallationCut off main AC power before installation. Insert the MA-P884-001 power supply module into MODICON 884 backplane slot and lock the unit. Check backplane gold finger contact. Connect AC input cable to module terminal,complete insulation test and power-on inspection before formal operation.

InterfaceAC input terminal block,backplane bus connector,power status and fault LED indicators for MA-P884-001 AEG MODICON rack power supply module.

FeatureAEG MODICON MA-P884-001 P884 170W rack power supply,wide AC input range,regulated 5V DC output,multiple built-in protection functions,real-time power status monitoring,stable anti-interference performance for industrial workshop environment,standard single slot rack design,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON 884 PLC rack power maintenance and replacement.

DiagnosticModule no power output: check AC input power supply,fuse and terminal loose fault for MA-P884-001. Power fault LED on: inspect overcurrent,short circuit or overvoltage triggered protection. Intermittent power drop: check AC input fluctuation,connector loose and internal component aging. Backplane no power: verify backplane contact and module insertion. Fault alarm: read module diagnostic information through supporting programming software.

Product BriefMA-P884-001 is AEG MODICON 884 series P884 170W rack power supply module. It converts 120/240VAC to 5VDC to supply power for MODICON 884 PLC rack CPU and I/O cards,classic spare part for legacy industrial automation equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
