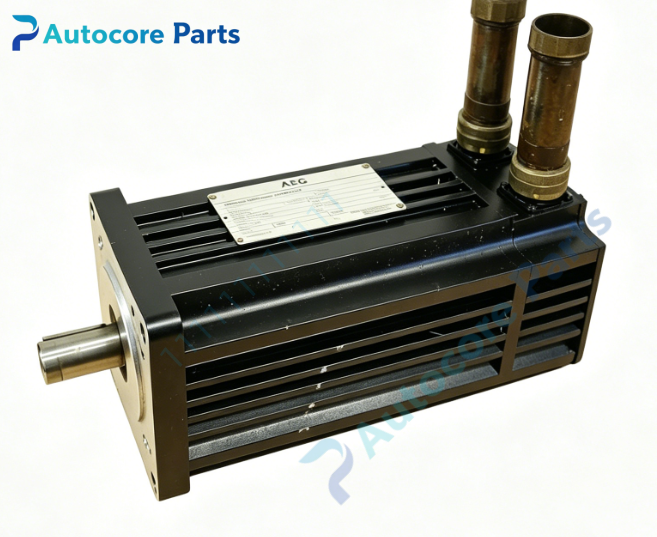

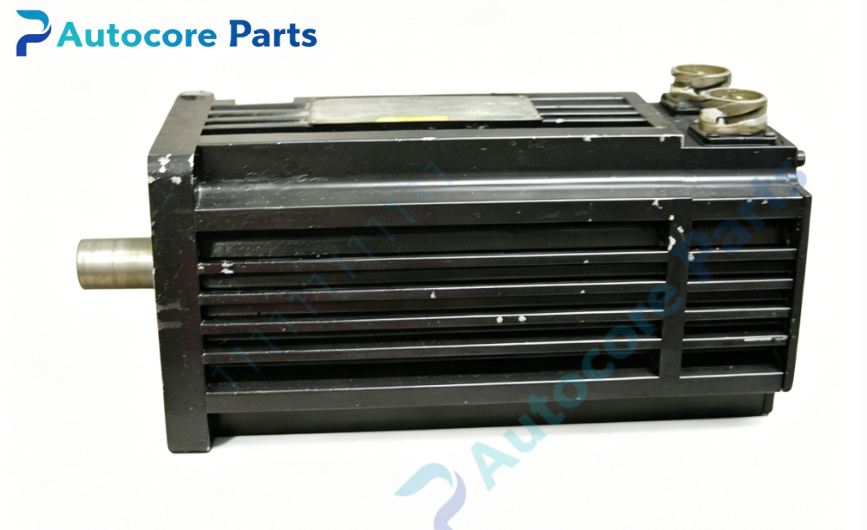

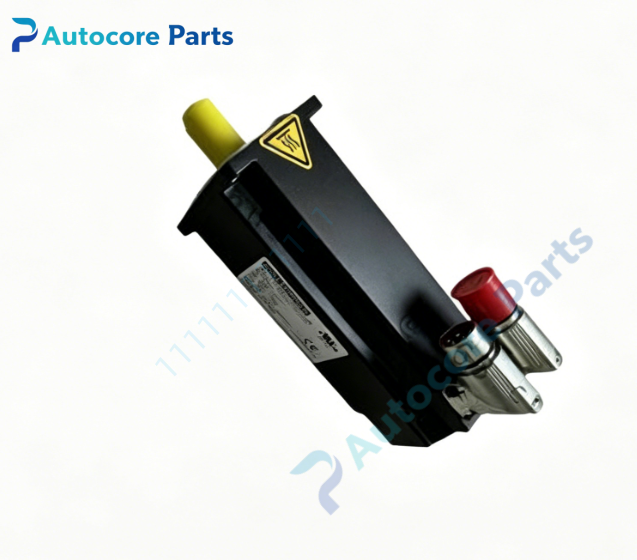

Modicon S74D-V00-F0V0 Servo Motor

Technical SpecificationsModel:S74D-V00-F0V0 Brand:Schneider Electric Product Type:S74D Series Brushless Servo Motor Rated Power:0.75HP Motor Type:Brushless permanent magnet servo Feedback:Built-in encoder Mounting:Flange mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:3.8kg Dimension:160mm110mm140mm Protection:IP65

System compatibilityS74D-V00-F0V0 belongs to Schneider Modicon S74D classic servo motor. Compatible with matching Modicon servo drive and motion control PLC system. Suitable for packaging machinery, textile equipment, automated production line high precision positioning renovation and replacement as industrial spare part.

FunctionS74D-V00-F0V0 permanent magnet brushless servo motor. It converts electrical control signals into precise rotary mechanical motion,realizes speed,position and torque closed-loop control. The built-in encoder feeds back position signal to servo drive to guarantee positioning accuracy. Widely used for high-precision motion control of automation equipment, serving as reliable motion spare part.

InstallationCut off drive power before installation. Fix the S74D-V00-F0V0 servo motor by flange mounting. Connect power cable and encoder feedback cable to servo drive. Perform servo parameter tuning and homing test before formal operation.

InterfaceMotor power connector,encoder feedback connector for S74D-V00-F0V0 Schneider servo motor.

FeatureSchneider S74D-V00-F0V0 brushless servo motor,compact structure,high torque density,closed-loop encoder feedback,stable low-speed running,good overload capacity,IP65 housing protection for workshop environment. This discontinued legacy industrial spare part used for old Modicon motion automation system maintenance and replacement.

DiagnosticMotor no rotation: check power wiring,encoder cable connection and servo enable signal for S74D-V00-F0V0. Positioning deviation: inspect encoder fault,parameter setting and mechanical load stuck. Motor overheat alarm: check overload,ventilation condition and power supply abnormality. Vibration and noise: check coupling alignment,mechanical resonance and bearing wear. Encoder fault warning: inspect encoder cable damage and connector loose.

Product BriefS74D-V00-F0V0 is Schneider Modicon S74D series 0.75HP brushless servo motor. Equipped with built-in encoder for closed loop position control,used for automated machinery high-precision motion control,classic spare part for legacy industrial motion equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
