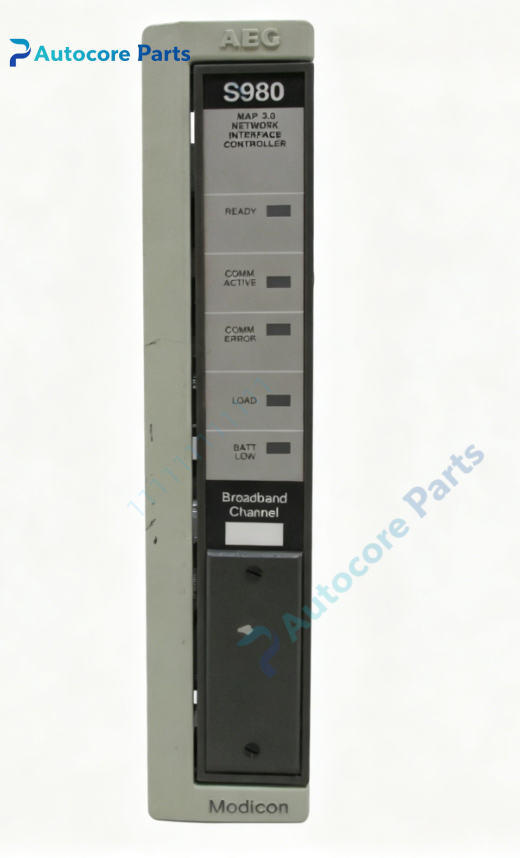

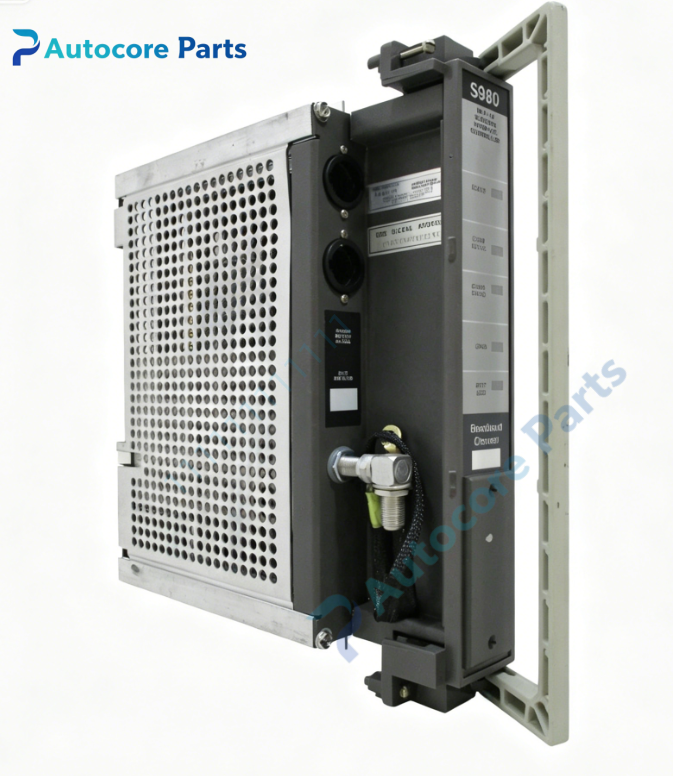

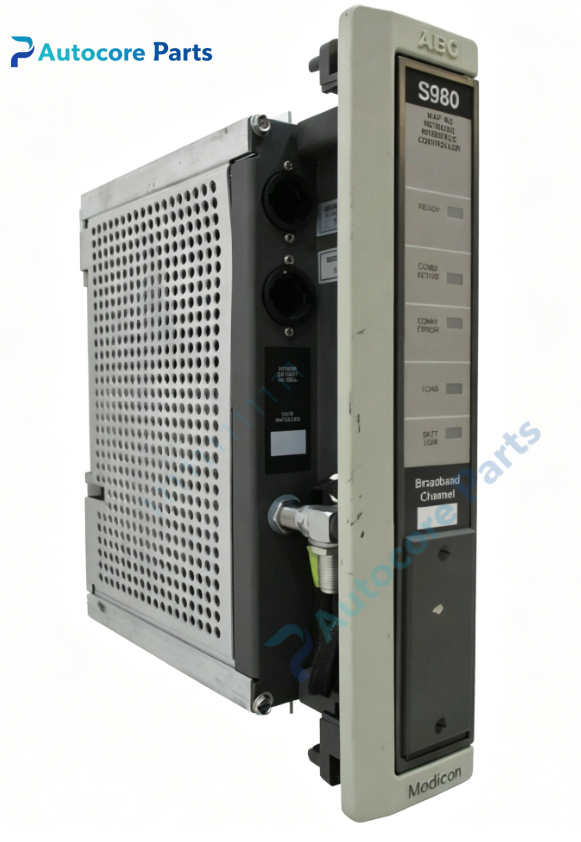

MODICON AM-S980-810 Network Interface Controller Module

Technical SpecificationsModel:AM-S980-810 Brand:AEG MODICON Product Type:MAP 3.0 Network Interface Controller Module Backplane Power:5V DC supplied by rack backplane Communication Protocol:MAP3.0,Modbus Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:2.1kg Dimension:305mm150mm38mm Protection:IP20

System compatibilityAM-S980-810 belongs to MODICON S980 series network interface module. Compatible with MODICON 980 series PLC backplane and matching CPU modules. It can connect with upper monitoring host and other MAP network nodes. Suitable for chemical,energy,water treatment,large process control system network expansion and replacement as industrial spare part.

FunctionAM-S980-810 is dedicated MAP3.0 network interface controller module. It realizes PLC and industrial local area network data interaction,completes protocol conversion,data packaging and transmission. It supports network node address management,communication fault detection and data retransmission mechanism. Widely used for PLC system network communication connection,serving as reliable network interface spare part.

InstallationCut off rack power before installation. Insert the AM-S980-810 network module into designated backplane slot and lock the module. Check backplane bus contact condition. Connect MAP network cable,set node address,complete network communication test before formal operation.

InterfaceBackplane bus connector,MAP network port,status LED indicators for AM-S980-810 AEG MODICON network interface module.

FeatureAEG MODICON AM-S980-810 rack type MAP3.0 network interface,standard single slot design,built-in communication watchdog,real-time network status monitoring,stable data transmission for industrial environment,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON 980 series automation system network maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for AM-S980-810. Network communication interruption: inspect network cable,shielding grounding and node address setting. Data transmission error: check network terminal resistor and cable aging. Status LED abnormal: verify module hardware fault and backplane power supply. Network congestion alarm: check excessive network nodes and data overload.

Product BriefAM-S980-810 is AEG MODICON S980 series MAP3.0 network interface controller module. It establishes MAP industrial network link for MODICON 980 PLC,realizes interconnection between multiple control stations,classic spare part for legacy large process automation system overhaul.
