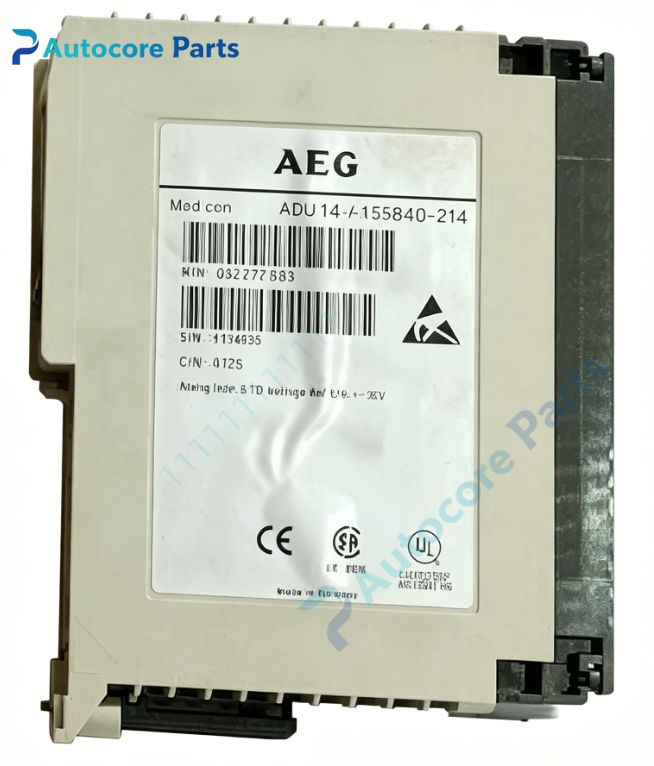

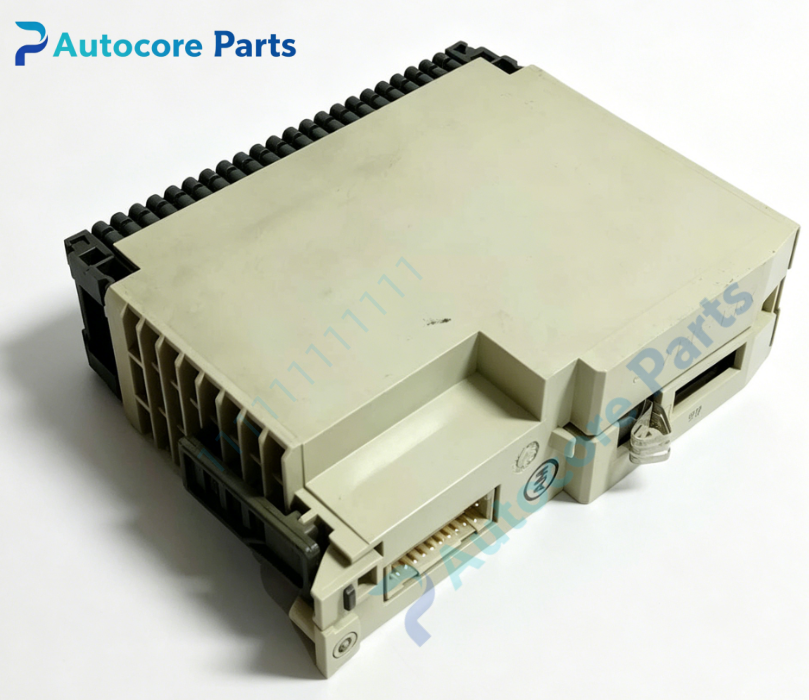

MODICON AS-BADU-214 Analog Input Module

Technical SpecificationsModel:AS-BADU-214 Brand:MODICON Product Type:TSX Compact Series Multi-function Analog Input Module Input Channel:4 four-pole RTD or 8 two-pole voltage channels Signal Type:DC voltage,DC current,RTD platinum thermal resistance Voltage Range:±0.5V,±1V,±5V,±10V,0~0.5V,0~1V,0~5V,0~10V Current Range:0~10mA,0~20mA,4~20mA Resolution:15 bits plus sign Backplane Power:Supplied by rack backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +60℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:0.45kg Dimension:127mm152mm51mm Protection:IP20

System compatibilityAS-BADU-214 belongs to MODICON TSX Compact series analog input module. Compatible with TSX Compact series CPU, backplane and other digital I/O modules. It can collect analog field signals and transmit data to PLC main processor. Suitable for temperature,pressure,flow monitoring in water treatment,chemical,energy and old production line control system replacement as industrial spare part.

FunctionAS-BADU-214 is multi-functional analog input module. It receives analog signals including voltage,current and RTD temperature signals from field transmitters and sensors,converts analog quantity into digital signal for PLC processing. It supports wire break detection and built-in automatic self-calibration function. Widely used for field analog signal acquisition of industrial process control, serving as reliable analog spare part.

InstallationCut off rack power before installation. Insert the AS-BADU-214 module into TSX Compact backplane slot and lock the card. Connect sensor signal cable to module terminal. Set signal type and range in PLC program,complete channel calibration and signal test before formal operation.

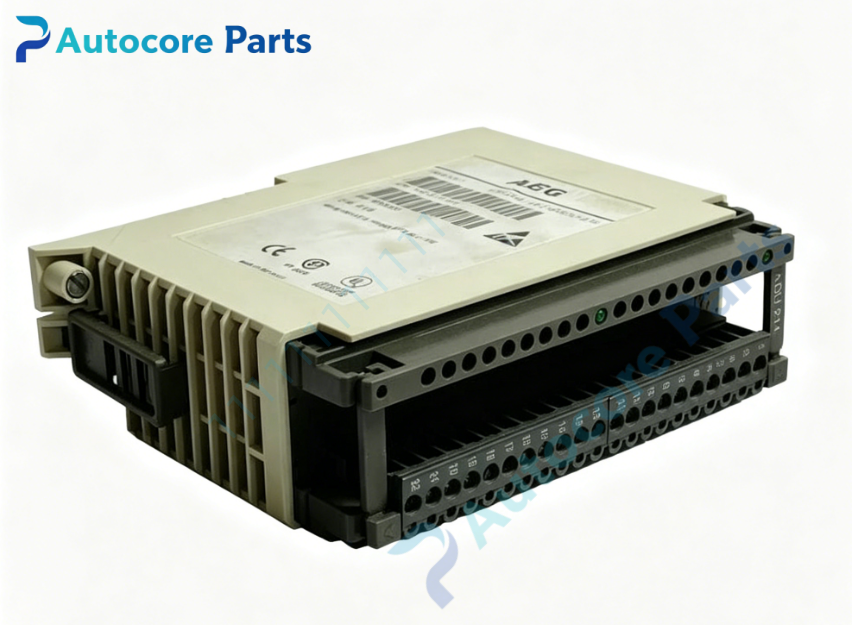

InterfaceBackplane bus connector,field analog signal terminal,channel status LED indicators for AS-BADU-214 MODICON analog input module.

FeatureMODICON AS-BADU-214 multi-range analog input module,support RTD temperature measurement,built-in self-calibration and wire break detection,multiple signal range selection,compact single slot rack design,IP20 cabinet protection. This discontinued legacy industrial spare part used for old TSX Compact PLC system analog signal acquisition maintenance and replacement.

DiagnosticModule not detected: check rack power supply,backplane contact and module insertion for AS-BADU-214. Signal reading deviation: inspect sensor wiring,signal range parameter setting and calibration status. Wire break alarm: check sensor cable breakage and loose terminal connection. Channel reading unstable: check cable shielding,grounding and electromagnetic interference. Fault alarm: read module diagnostic status through supporting programming software.

Product BriefAS-BADU-214 is MODICON TSX Compact series multi-function analog input module. It collects voltage,current and RTD temperature signals for PLC system,classic spare part for legacy process automation equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
