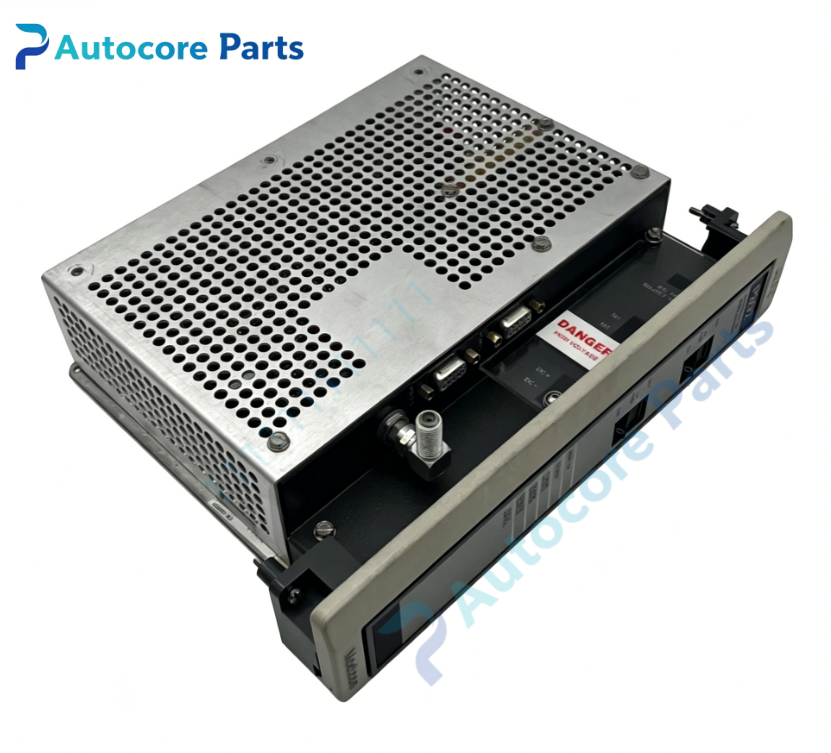

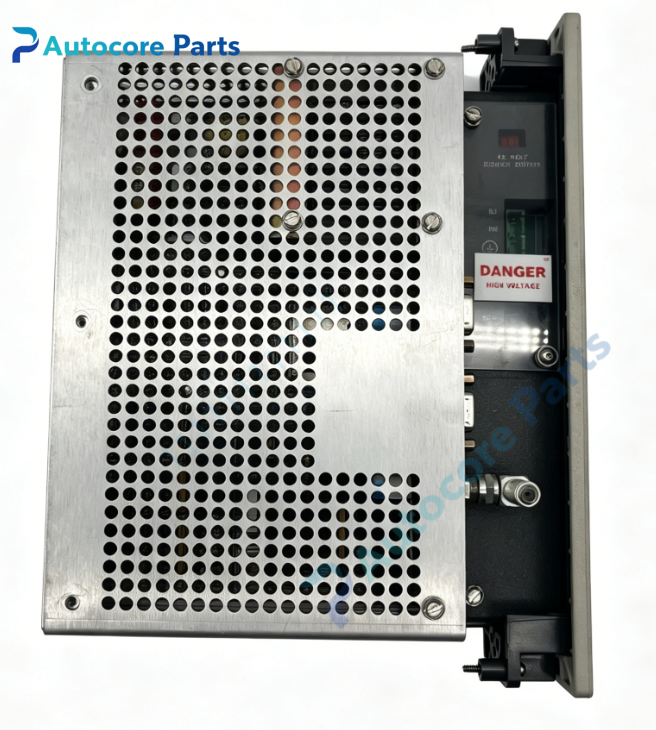

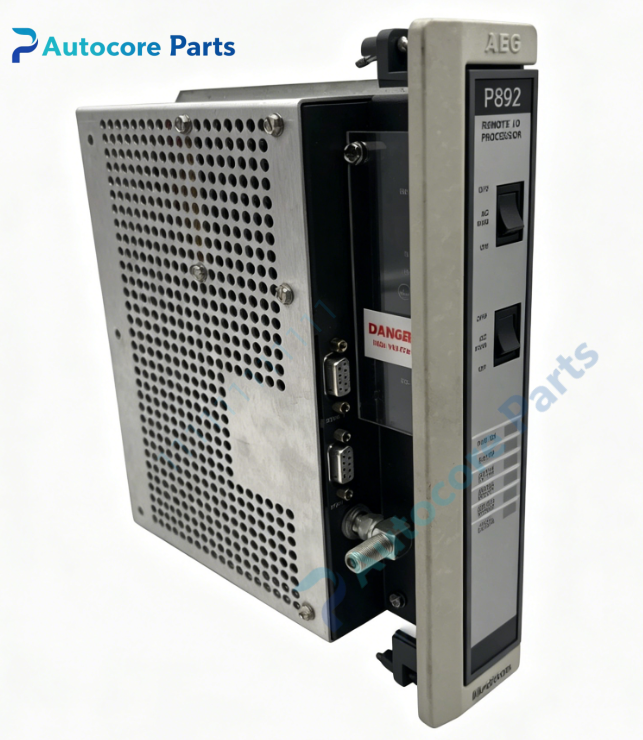

MODICON AS-P892-000 Remote I/O Processor Module

Technical SpecificationsModel:AS-P892-000 Brand:MODICON Product Type:984 Series Remote I/O Processor Module Backplane Power:5V DC supplied by rack backplane Connector:Dual 25-pin D-SUB Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +55℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.88kg Dimension:265mm142mm35mm Protection:IP20

System compatibilityAS-P892-000 belongs to MODICON 984 series remote I/O processor module. Compatible with MODICON 984 series CPU,matching backplane and remote RIO I/O racks. It can cooperate with 800 series digital input,digital output and analog I/O modules. Suitable for chemical,water treatment,metallurgy,old production line distributed PLC control system renovation and replacement as industrial spare part.

FunctionAS-P892-000 is dedicated remote I/O processor unit. It acts as communication bridge between main CPU rack and remote I/O racks,realizes bidirectional transmission of control commands and field collected signals. It completes signal conversion,network station address management and real-time communication fault monitoring. Widely used for distributed field I/O expansion of PLC system,serving as reliable remote communication spare part.

InstallationCut off rack power before installation. Insert the AS-P892-000 module into MODICON backplane slot and lock the card. Connect remote I/O bus cable to 25-pin D-SUB port. Set network station address,check bus terminal resistor,complete network communication test before formal operation.

InterfaceBackplane bus connector,dual 25-pin D-SUB remote I/O ports,communication and status LED indicators for AS-P892-000 MODICON remote I/O processor module.

FeatureMODICON AS-P892-000 rack type remote I/O processor,dual D-SUB communication interface,real-time remote data exchange,built-in communication fault detection,standard single slot rack design,stable operation in industrial environment,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON 984 distributed automation system maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for AS-P892-000. Remote rack communication loss: inspect D-SUB cable,shielding grounding and station address setting. Data intermittent loss: check bus terminal resistor and cable aging condition. Status LED abnormal: verify module hardware failure and backplane power. Network fault alarm: read network diagnostic information through Modsoft programming software.

Product BriefAS-P892-000 is MODICON 984 series remote I/O processor module. It connects main control rack and distributed remote I/O stations,realizes long-distance field signal collection and output control,classic spare part for legacy industrial distributed control system overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
