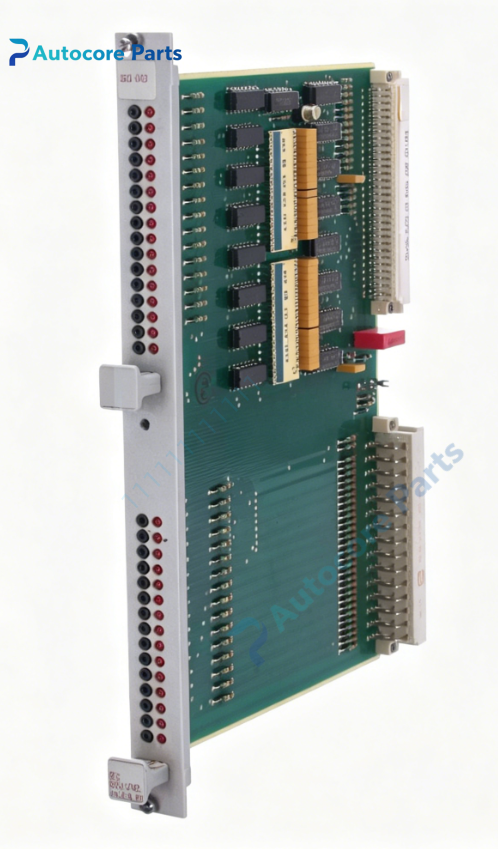

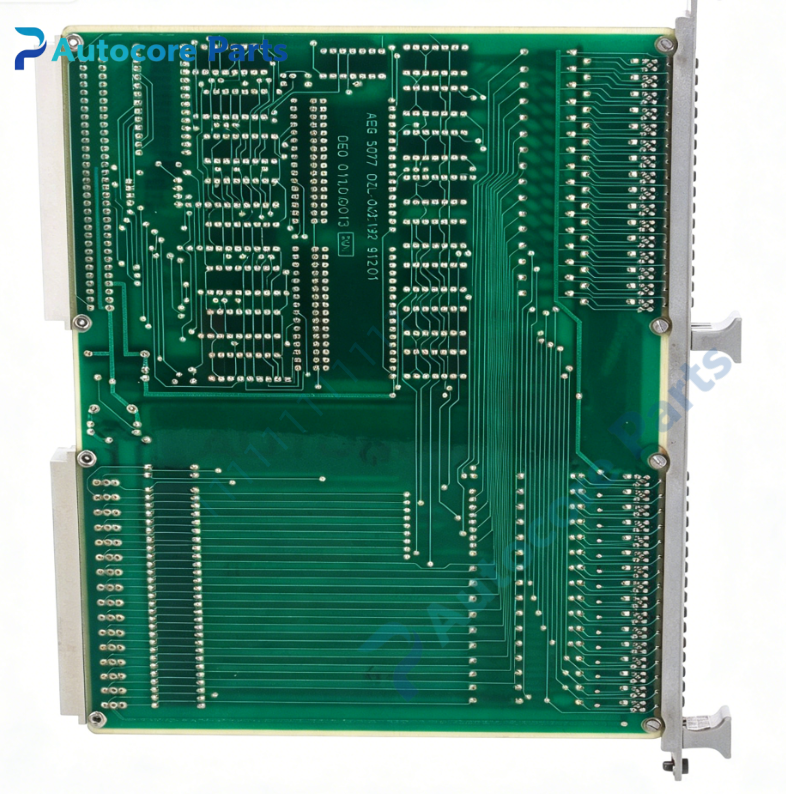

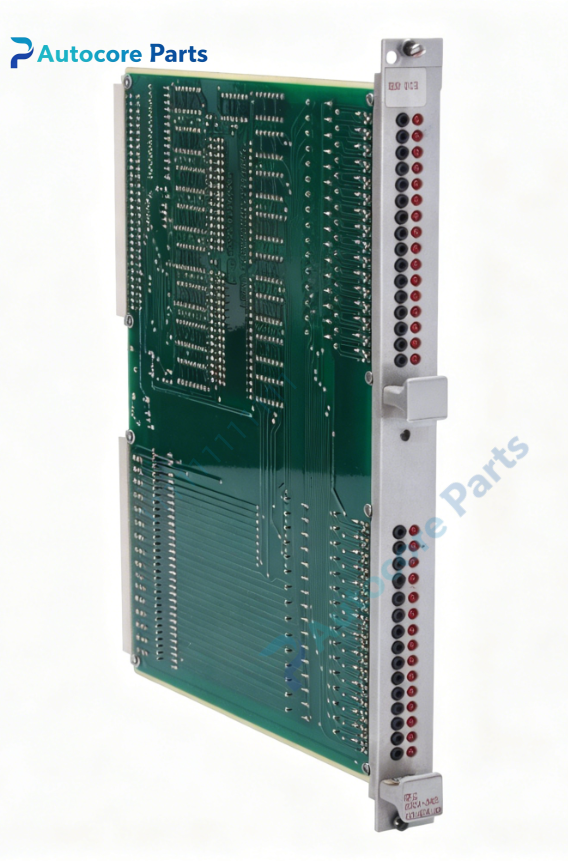

MODICON 6051-042 Digital Output Module

Technical SpecificationsModel:6051-042 Brand:AEG MODICON Product Type:DAP112 Series 32-Channel Digital Output Module Channel:32 digital output points Field Voltage:24V DC Backplane Power:5V DC supplied by rack backplane Isolation:Galvanic isolation between backplane and field side Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.3kg Dimension:260mm140mm30mm Protection:IP20

System compatibility6051-042 belongs to AEG MODICON DAP112 series digital output module. Compatible with AEG Modicon rack CPU, backplane and matching I/O modules. It can work together with DEP112 digital input modules in the same rack. Suitable for production line, packaging machinery, water treatment, chemical plant discrete on-off control renovation and replacement as industrial spare part.

Function6051-042 is 32-point discrete output module. It receives control commands from PLC processor and outputs 24VDC switch signals to drive relays, solenoid valves and contactors. It supports channel status monitoring, built-in overcurrent and short-circuit protection for each channel. Widely used for field on-off actuator control in industrial automation, serving as reliable digital output spare part.

InstallationCut off rack and field power before installation. Insert the 6051-042 module into AEG MODICON backplane slot and lock the card. Check gold finger contact condition. Wire field output cables to module terminal block. Configure module address, verify each channel output and complete function test before formal operation.

InterfaceBackplane bus connector,field signal terminal block,channel status LED indicators for 6051-042 AEG MODICON digital output module.

FeatureAEG MODICON 6051-042 DAP112 32DO module,galvanic isolation design,individual channel overcurrent protection,LED status indication per channel,standard single slot rack design,anti-interference design for industrial workshop environment,IP20 cabinet protection. This discontinued legacy industrial spare part used for old AEG Modicon PLC system digital output maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for 6051-042. No channel output: check field 24VDC power supply, wiring and overcurrent protection trigger. Intermittent output failure: inspect cable shielding,grounding and terminal loose fault. LED abnormal: verify module hardware damage and backplane power. Fault alarm: read module diagnostic information through supporting programming software.

Product Brief6051-042 is AEG MODICON DAP112 series 32-channel digital output module. It outputs 24VDC discrete signals to control solenoid valves and relays,classic spare part for legacy AEG Modicon automation equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
