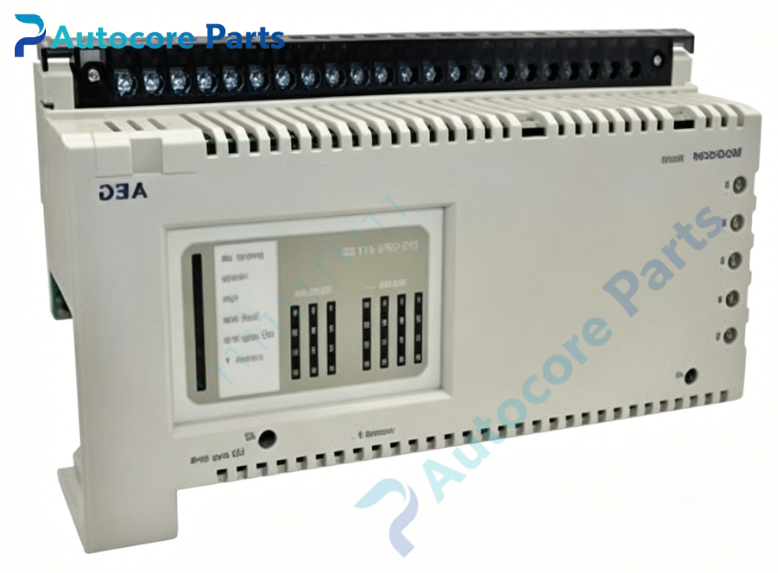

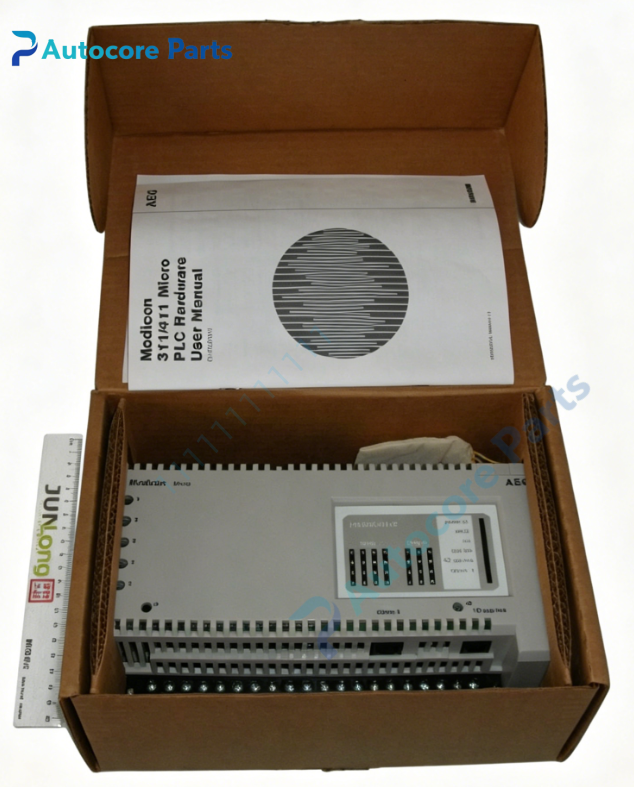

MODICON 110CPU41102 PLC Controller

Technical SpecificationsModel:110CPU41102 Brand:MODICON Product Type:Micro Series Integrated PLC CPU Controller Power Supply:230V AC,50/60Hz Mounting:Cabinet DIN rail mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.87kg Dimension:205mm110mm75mm Protection:IP20

System compatibility110CPU41102 belongs to MODICON Micro series integrated PLC controller. Compatible with Micro series expansion I/O modules, supporting RS232 and RS485 serial communication. It can connect with HMI, sensors and actuators, communicate with other MODICON Micro PLC units. Suitable for packaging machinery, small production line, general machine control system replacement as industrial spare part.

Function110CPU41102 is compact all-in-one programmable logic controller with onboard I/O. It executes user logic program, collects 16 digital input signals and outputs control signals via 12 built-in outputs. It supports program storage, battery-backed data retention, high-speed counter and interrupt function, fault self-diagnosis. Widely used for standalone machine automation control, serving as reliable PLC spare part.

InstallationCut off power before installation. Mount the 110CPU41102 controller on DIN rail inside electrical cabinet. Connect 230V AC power cable and field I/O wiring. Connect serial communication cable for programming. Download PLC program and complete I/O test before formal operation.

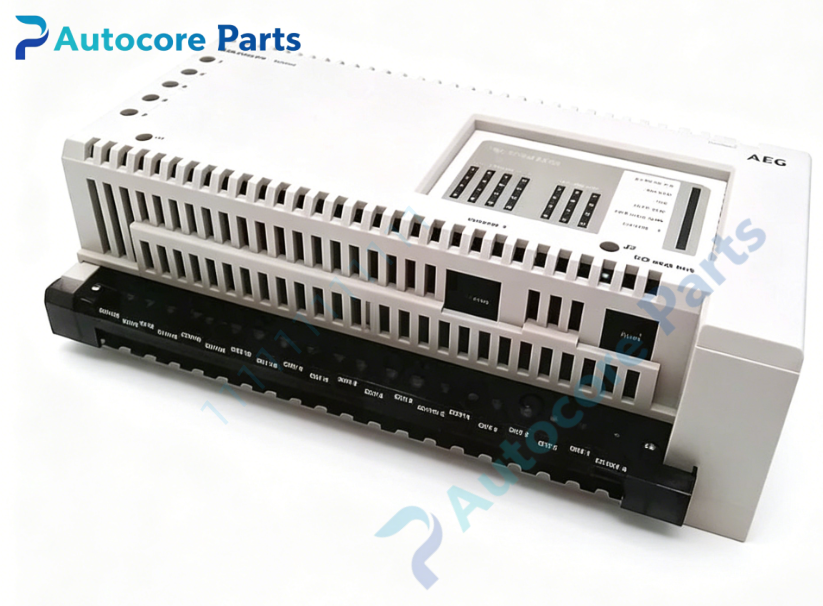

InterfaceRS232 programming port, RS485 expansion communication port, digital input terminals,digital output terminals, status LED indicators for 110CPU41102 MODICON PLC controller.

FeatureMODICON 110CPU41102 Micro integrated PLC,CPU, power supply and I/O integrated design,compact DIN rail installation,built-in high-speed counter,battery memory retention,IP20 cabinet protection. This discontinued legacy industrial spare part used for old standalone machine control system maintenance and replacement.

DiagnosticController no power: check 230V AC input, fuse and power wiring for 110CPU41102. CPU run failure: check program error, battery status and memory fault. I/O signal abnormal: inspect field sensor wiring, actuator circuit and terminal contact. Communication failure: verify serial cable, station address and baud rate configuration. Fault alarm: read fault information via ProWORX programming software.

Product Brief110CPU41102 is MODICON Micro series integrated PLC controller with built-in I/O and power supply. This compact PLC is widely used for small machinery automation control, integrated design saves cabinet space, classic spare part for legacy equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
