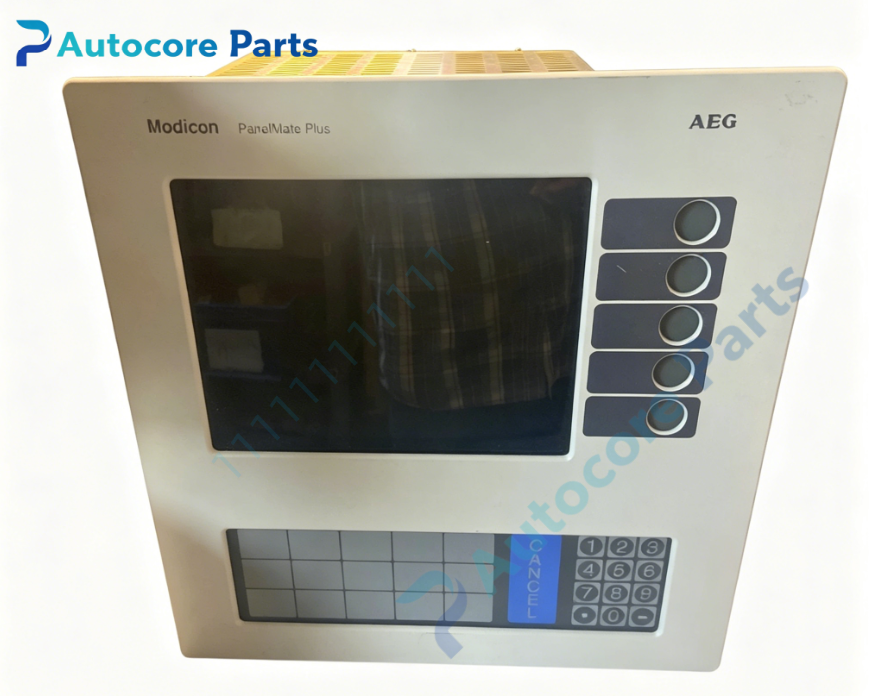

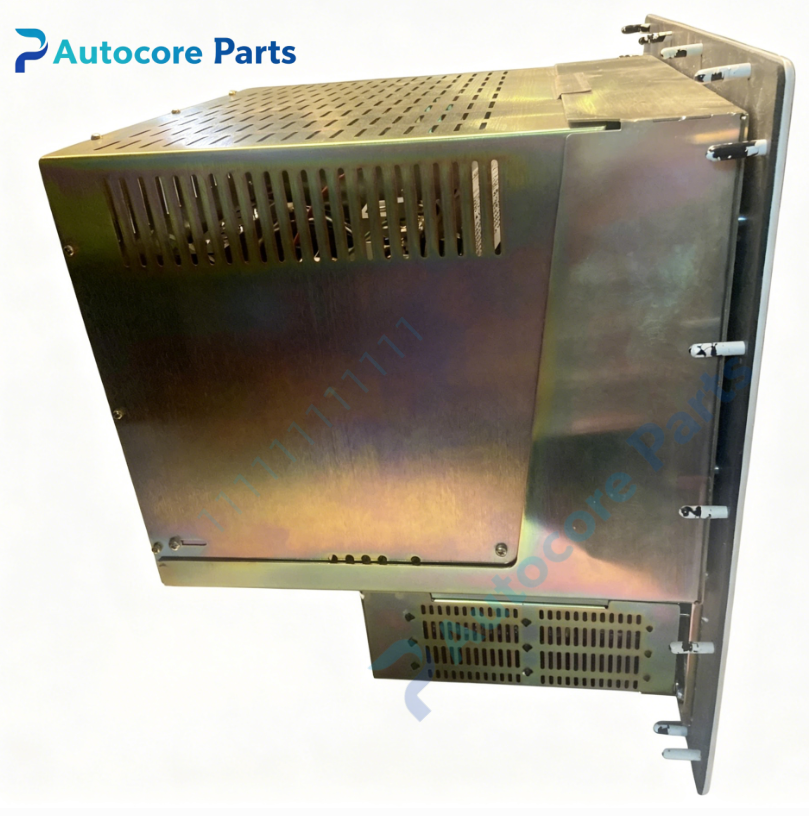

MODICON MM-PMC2-300 Operator Panel

Technical SpecificationsModel:MM-PMC2-300 Brand:MODICON Product Type:PanelMate Plus Series Industrial HMI Operator Panel Power Supply:110/230V AC,85VA Mounting:Control cabinet panel cutout mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:3.2kg Dimension:310mm240mm85mm Protection:Front panel IP65, rear side IP20

System compatibilityMM-PMC2-300 belongs to MODICON PanelMate Plus HMI series. Compatible with MODICON 984, Quantum and Momentum PLC series. It supports Modbus communication protocol, can connect with PLC, frequency converter and field sensors. Suitable for production line, water treatment, metallurgy and legacy process control system as industrial spare part.

FunctionMM-PMC2-300 is industrial human machine interface operator panel. It realizes real-time data display, parameter setting, manual operation, alarm display and data recording. It uploads field running data and sends operation commands to PLC. Widely used for on-site monitoring and operation of automated equipment, serving as reliable HMI spare part.

InstallationCut off power before installation. Embed the MM-PMC2-300 panel into cabinet cutout and fasten mounting brackets. Connect AC power cable and Modbus communication wiring. Download HMI project and complete communication test before formal operation.

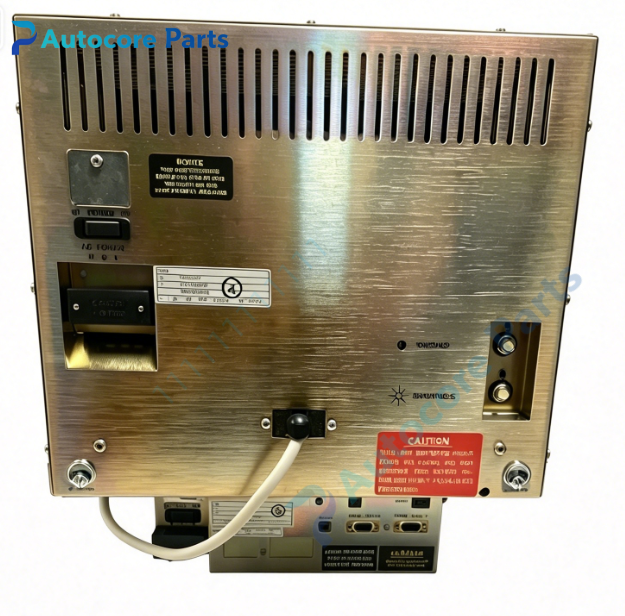

InterfaceModbus communication port, programming download port, power terminal, membrane function keypad, display screen for MM-PMC2-300 MODICON HMI panel.

FeatureMODICON MM-PMC2-300 PanelMate Plus operator panel,membrane keypad design,front panel IP65 dustproof and waterproof,real-time alarm message,data logging function,stable operation in workshop environment. This discontinued legacy industrial spare part used for old automation system HMI maintenance and replacement.

DiagnosticPanel no power: check AC input, fuse and power wiring for MM-PMC2-300. Screen no display: inspect backlight circuit and power supply of display unit. Communication failure: verify Modbus address, baud rate and communication cable. Keypad unresponsive: check membrane keypad wiring and keypad wear condition. Alarm abnormal: check PLC data register and HMI project configuration.

Product BriefMM-PMC2-300 is MODICON PanelMate Plus series industrial HMI operator panel. This classic HMI is widely matched with MODICON PLC for old factory automation equipment, supporting field parameter adjustment and status monitoring, popular industrial spare part for legacy system overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
