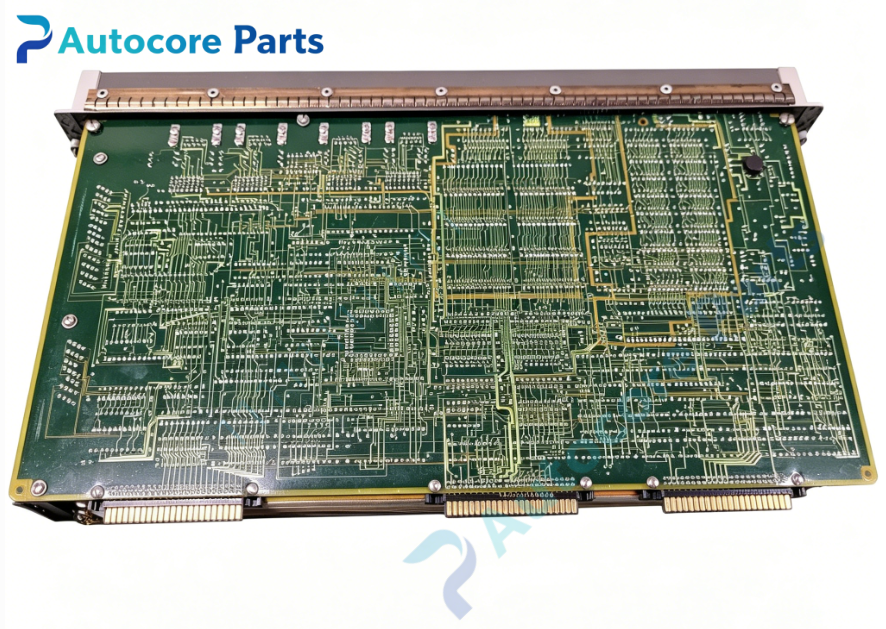

MODICON AM-C986-004 Coprocessor Module

Technical SpecificationsModel:AM-C986-004 Brand:MODICON Product Type:984 Series High Speed Coprocessor Module Power Supply:5V DC, supplied by backplane Mounting:Rack backplane slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.79kg Dimension:265mm142mm30mm Protection:IP20

System compatibilityAM-C986-004 belongs to MODICON 984 series coprocessor module. Compatible with MODICON 984 series CPU backplane and related I/O modules. It works together with main CPU to undertake high-speed calculation and data processing tasks, supporting RS232C / RS422 serial communication. Suitable for legacy industrial production line, metallurgy and chemical control system upgrade and replacement as industrial spare part.

FunctionAM-C986-004 is high-speed coprocessor board for MODICON 984 PLC rack. It offloads complex mathematical operation, motion calculation and mass data processing from main CPU, improves overall PLC scan speed. It carries 256KB SRAM memory for data buffer and program operation, supports data exchange with main processor and external serial devices. Widely used for complex process control, serving as reliable expansion spare part.

InstallationCut off rack power before installation. Insert the AM-C986-004 coprocessor module into designated slot of MODICON backplane and lock the board. Check backplane bus contact. Configure coprocessor parameters via programming software and complete online communication test before formal operation.

InterfaceBackplane bus connector,RS232C / RS422 serial port, status LED indicators for AM-C986-004 MODICON coprocessor module.

FeatureMODICON AM-C986-004 10MHz high speed coprocessor,256KB SRAM onboard memory,rack plug-in design,shared backplane power supply,reduces main CPU calculation load,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON 984 PLC system maintenance and replacement.

DiagnosticModule no recognition: check rack power supply, backplane slot contact and module insertion for AM-C986-004. Coprocessor communication fault: inspect serial wiring, baud rate and station address configuration. Data calculation abnormal: verify coprocessor firmware version and program mapping settings. Memory error: check SRAM fault and backup battery condition. Status alarm: read diagnostic information through ProWORX programming software.

Product BriefAM-C986-004 is MODICON 984 series high-speed coprocessor module. This board cooperates with main CPU to handle heavy data computation, enhances system response speed, classic industrial spare part for legacy MODICON PLC system overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
