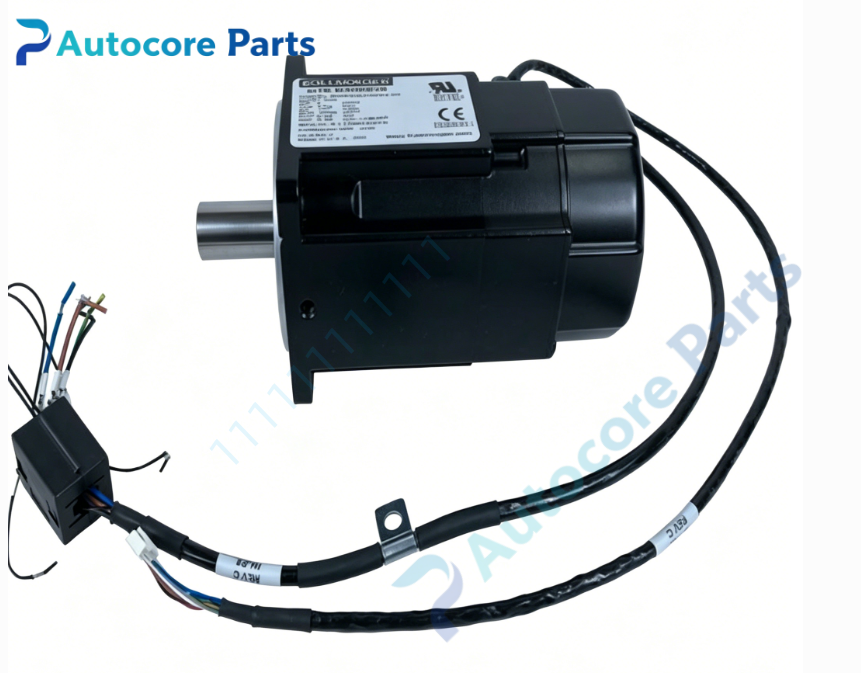

Kollmorgen AKM65M-ANCNR-00 Synchronous Servo Motor Spare Part

Technical Specifications

Model:AKM65M-ANCNR-00

Brand:Kollmorgen

Part No:AKM65M-ANCNR-00

Product type:AC synchronous servo motor with holding brake

Rated speed:3000 rpm

Rated power:4.7 kW

Rated torque:15 Nm

Brake:24V DC power-off holding brake

Input voltage:400V AC

Dimension:215mm130mm185mm

Weight:18.6kg

Feedback:resolver feedback

Mounting:IM B5 flange mounting

Protection class:IP65

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

AKM65M-ANCNR-00 belongs to Kollmorgen AKM6 servo motor family,matched with Kollmorgen AKD series servo drives,widely used in heavy-duty machine tools,packaging machinery,material handling and textile equipment.This is a legacy spare part for industrial equipment maintenance replacement.

Function

AKM65M-ANCNR-00 is high torque density permanent magnet synchronous servo motor with built-in 24V holding brake.It features low cogging torque,large continuous torque output,suitable for heavy load high-precision positioning applications.Resolver transmits rotor position signal to servo drive to realize closed-loop speed and position control.The built-in brake locks the shaft once power is cut to prevent axis sliding.

Installation

Install AKM65M-ANCNR-00 via flange mounting.Align coupling accurately,connect power cable,resolver feedback cable and brake control cable.Tighten terminals and check cable shielding before power-on commissioning.

Interface

‑Power cable connector

‑Resolver feedback connector

‑Brake 24V DC connector

‑Flange mounting interface

‑Shaft with keyway

‑Shield grounding terminal

Circuit feature

Permanent magnet rotor structure,low loss stator winding,resolver position detection circuit,built-in brake coil,strong overload capacity,adapt to heavy-load frequent start-stop working condition.

Feature

AKM65M-ANCNR-00 is obsolete Kollmorgen spare part.Typical faults:bearing wear,winding insulation aging,resolver signal failure,brake coil burnout,shaft damage,connector corrosion.Inspect winding resistance,resolver signal and brake operation before replacement.

Diagnostic

When motor fails,motor overheat,abnormal mechanical noise,position deviation,resolver signal loss,overcurrent alarm,brake fails to release or lock,axis cannot run normally.

Built‑in function:Heavy torque dynamic output,rotary position detection,power-off shaft holding,axis speed and position control,used as Kollmorgen heavy-duty machine tool servo motor spare replacement.

Product Brief

AKM65M-ANCNR-00 is Kollmorgen AKM6 series heavy-duty servo motor with resolver feedback and 24V holding brake.Match with AKD servo drives.Verify feedback type,brake function and shaft dimension before ordering.ESD protection required during handling and installation.
