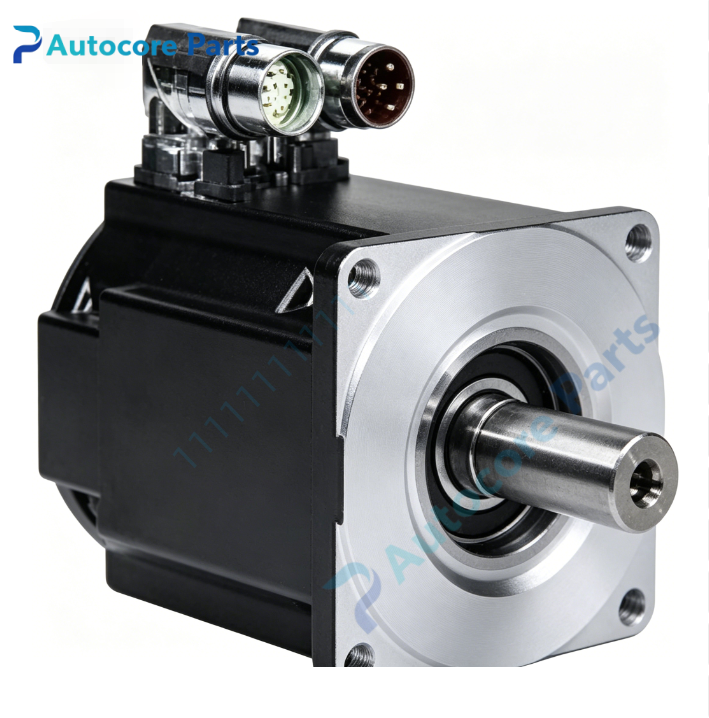

Kollmorgen AKM54K-ANC2AB01 Servo Motor Spare Part

Technical Specifications

Model:AKM54K-ANC2AB01

Brand:Kollmorgen

Part No:AKM54K-ANC2AB01

Product type:Permanent magnet AC synchronous servo motor

Rated power:3.85kW

Rated speed:4000rpm

Continuous torque:15.2Nm

Peak torque:43.1Nm

Max DC bus voltage:640V DC

Protection class:IP65

Dimension:435mm108mm130mm

Weight:14.80kg

Feedback interface:Comcoder 2048PPR encoder

Mounting:108mm IEC flange mounting

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

AKM54K-ANC2AB01 belongs to Kollmorgen AKM servo motor family,matched with Kollmorgen AKD series servo drives,widely used in machine tools,packaging machinery,material handling and medium-load precision multi-axis automation systems.This is industrial spare part for equipment overhaul and maintenance.

Function

AKM54K-ANC2AB01 is AKM high-performance synchronous servo motor.It features ultra-low cogging torque and smooth rotation performance.Comcoder 2048PPR encoder delivers high-resolution position signal,stable signal transmission.High energy density rare-earth permanent magnet rotor delivers excellent dynamic response,this model is with built-in 24V DC holding brake,keyway shaft.

Installation

Install AKM54K-ANC2AB01 via IEC flange mounting on machine fixture.Connect motor power cable,Comcoder encoder cable and brake power cable.Tighten mounting bolts and connector locking rings,separate power and signal wiring,complete shielding grounding before power-on test.

Interface

‑3 phase motor power connector

‑Comcoder encoder feedback connector

‑24V DC brake terminal

‑Shield grounding terminal

Feature

AKM54K-ANC2AB01 Kollmorgen servo motor.Typical faults:winding insulation aging,encoder element damage,bearing wear,brake failure,connector pin oxidation.Test winding resistance,insulation resistance and feedback signal before replacement.

Diagnostic

Motor faults will trigger overload,overcurrent or feedback loss alarm;motor jitter,position tracking error,brake release failure,motor fails to start,intermittent positioning deviation.

Built‑in function:Convert electrical command into precise mechanical torque,realize high accuracy speed and position closed-loop control,as Kollmorgen AKM series servo motor spare replacement.

Product Brief

AKM54K-ANC2AB01 is Kollmorgen AKM 3.85kW servo motor,108mm flange,Comcoder 2048PPR encoder,with 24V holding brake,key shaft,compatible with AKD servo drives for medium-load automation equipment maintenance.Confirm feedback type and shaft specification before ordering.ESD protection required during handling and installation.
