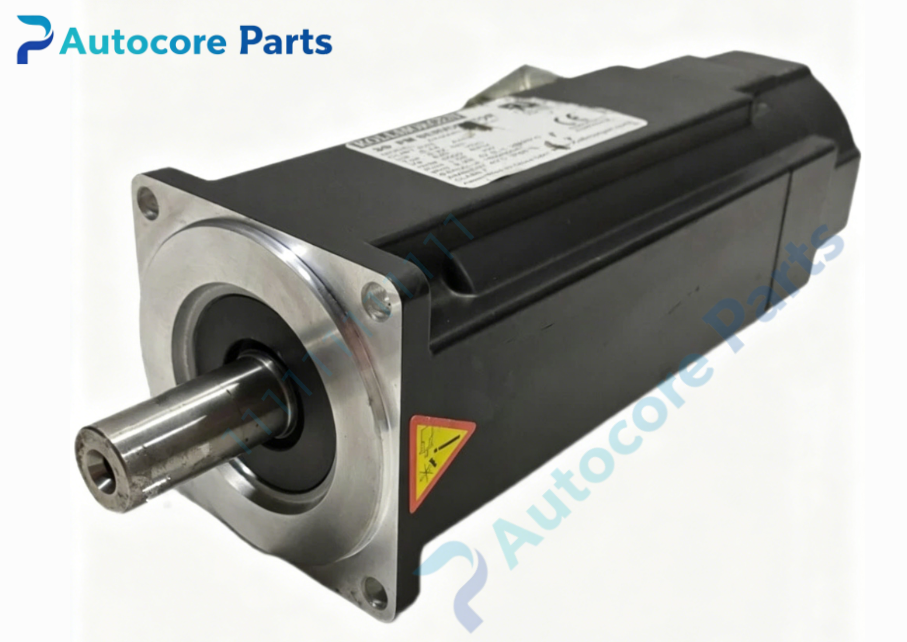

Kollmorgen AKM44E-ANCNDA00 Synchronous Servo Motor Spare Part

Technical Specifications

Model:AKM44E-ANCNDA00

Brand:Kollmorgen

Part No:AKM44E-ANCNDA00

Product type:AC synchronous servo motor with holding brake

Rated speed:4500 rpm

Rated power:2.85 kW

Rated torque:6.05 Nm

Brake:24V DC power-off holding brake

Input voltage:400V AC

Dimension:172mm105mm142mm

Weight:6.4kg

Feedback:resolver feedback

Mounting:IM B5 flange mounting

Protection class:IP65

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

AKM44E-ANCNDA00 belongs to Kollmorgen AKM4 servo motor family,matched with Kollmorgen AKD series servo drives,widely used in machine tools,packaging machinery,material handling and textile equipment.This is a legacy spare part for industrial equipment maintenance replacement.

Function

AKM44E-ANCNDA00 is high torque density permanent magnet synchronous servo motor with built-in 24V holding brake.It features low cogging torque,stable continuous torque output,suitable for medium heavy load high-precision positioning applications.Resolver transmits rotor position signal to servo drive to realize closed-loop speed and position control.The built-in brake locks the shaft when power cut to prevent axis sliding.

Installation

Install AKM44E-ANCNDA00 via flange mounting.Align coupling accurately,connect power cable,resolver feedback cable and brake control cable.Tighten terminals and check cable shielding before power-on commissioning.

Interface

‑Power cable connector

‑Resolver feedback connector

‑Brake 24V DC connector

‑Flange mounting interface

‑Shaft with keyway

‑Shield grounding terminal

Circuit feature

Permanent magnet rotor structure,low loss stator winding,resolver position detection circuit,built-in brake coil,strong overload capacity,adapt to frequent start-stop working condition.

Feature

AKM44E-ANCNDA00 is obsolete Kollmorgen spare part.Typical faults:bearing wear,winding insulation aging,resolver signal failure,brake coil burnout,shaft damage,connector corrosion.Inspect winding resistance,resolver signal and brake operation before replacement.

Diagnostic

When motor fails,motor overheat,abnormal mechanical noise,position deviation,resolver signal loss,overcurrent alarm,brake fails to release or lock,axis cannot run normally.

Built‑in function:High torque dynamic output,rotary position detection,power-off shaft holding,axis speed and position control,used as Kollmorgen machine tool servo motor spare replacement.

Product Brief

AKM44E-ANCNDA00 is Kollmorgen AKM4 series servo motor with resolver feedback and 24V holding brake.Match with AKD servo drives.Verify feedback type,brake function and shaft dimension before ordering.ESD protection required during handling and installation.
