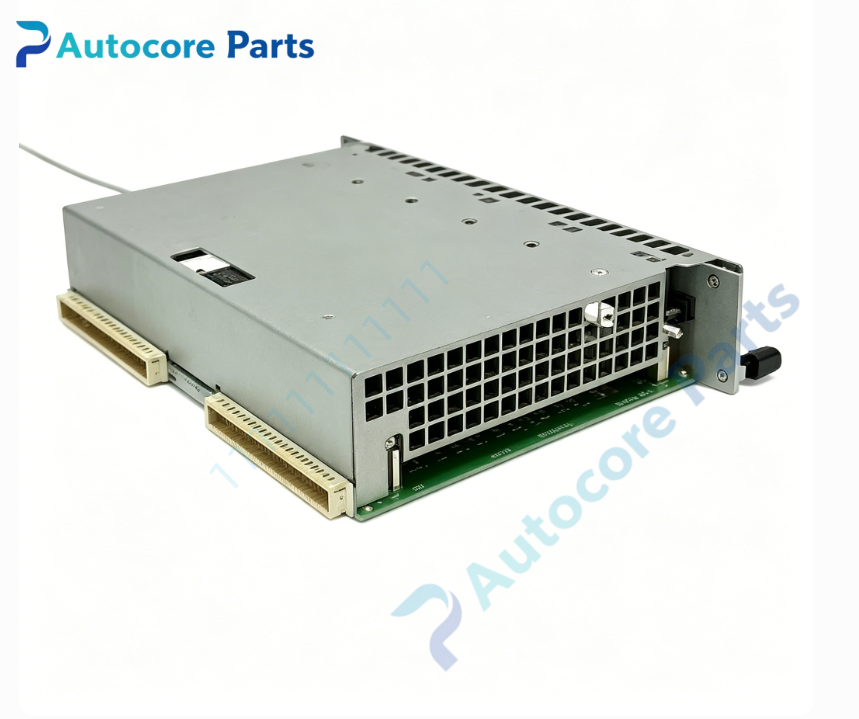

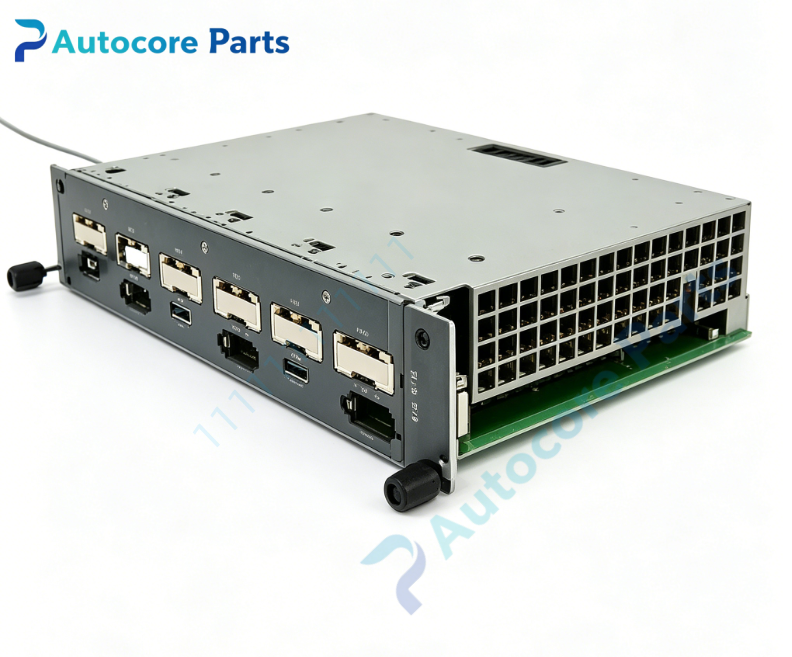

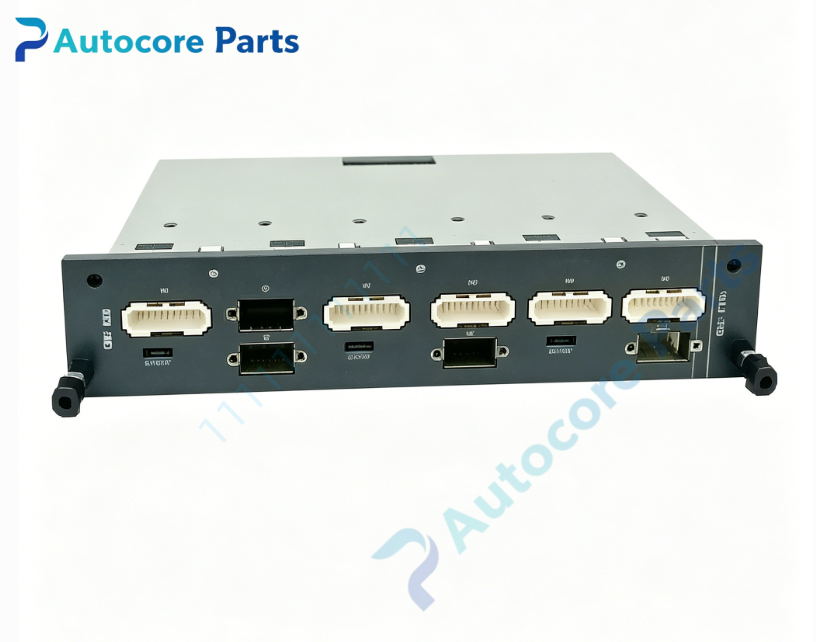

KEBA SC-102 Digital I/O Module

Technical Specifications

Model:SC-102

Brand:KEBA

Product type:Rack mount digital I/O module

Power supply:24 Vdc,19.2~28.8V tolerance,max 0.8A

Control function:Digital signal input & output,signal acquisition,actuator driving,overcurrent protection,signal status monitoring,hardware self-diagnosis,fault indication

Communication:Kemro K2 backplane bus

Mounting:Plug-in rack slot installation

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.32kg

Dimension:260mm64mm25mm

Certification:CE

Protection class:IP20

System compatibility

SC-102 belongs to KEBA Kemro K2 control system family,matched with KEMRO-BUS-8 backplane,K2 series CPU and power modules.Widely applied in injection molding,die-casting machine control cabinets.This is a discontinued legacy I/O module for equipment maintenance spare replacement.

Function

SC-102 serves as KEBA rack digital I/O module.It collects digital sensor input signals and outputs switching signals to drive on-site actuators.It integrates overcurrent protection to prevent damage caused by short circuit of field wiring.It continuously monitors signal working status and feeds fault signals back to main controller through backplane bus.It acts as signal acquisition and output component for Kemro K2 modular control system.

Installation

Insert SC-102 into the designated rack slot and lock the latch.Complete field signal wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

Interface

‑24Vdc power input terminal

‑Field digital input and output terminal block

‑Kemro K2 backplane gold finger connector

‑Signal status and fault LED indicator

Circuit feature

Built-in ESD and surge suppression circuit,signal isolation design,strong anti-interference performance for industrial cabinet environment.

Feature

SC-102 is obsolete KEBA series spare part.Typical failures include channel no response,signal loss,overcurrent protection trip,connector oxidation.Check module circuit and gold fingers before replacement.This module must match Kemro K2 series rack system,direct substitution without inspection is not recommended.

Diagnostic

When overcurrent,short-circuit or internal hardware fault occurs,the module triggers protection and lights up fault LED.

Built‑in function:Digital input and output,field signal collection and driving,overcurrent protection,signal status monitoring,self-diagnosis and fault alarm,used as KEBA Kemro K2 series I/O module spare replacement.

Product Brief

SC-102 is KEBA old industrial rack digital I/O module for injection molding and die-casting machine automation equipment.Confirm compatibility with Kemro K2 backplane before ordering.ESD protection required during handling and installation.
