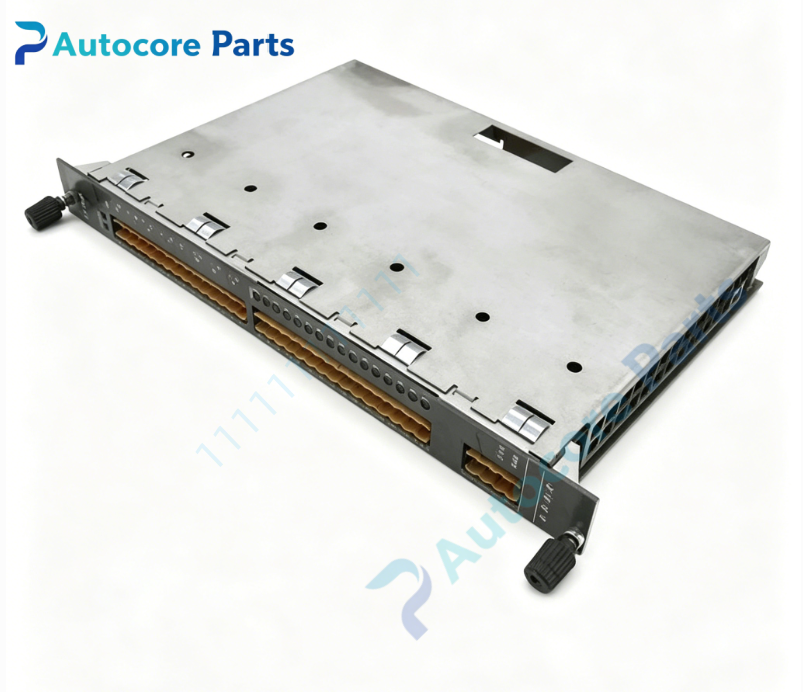

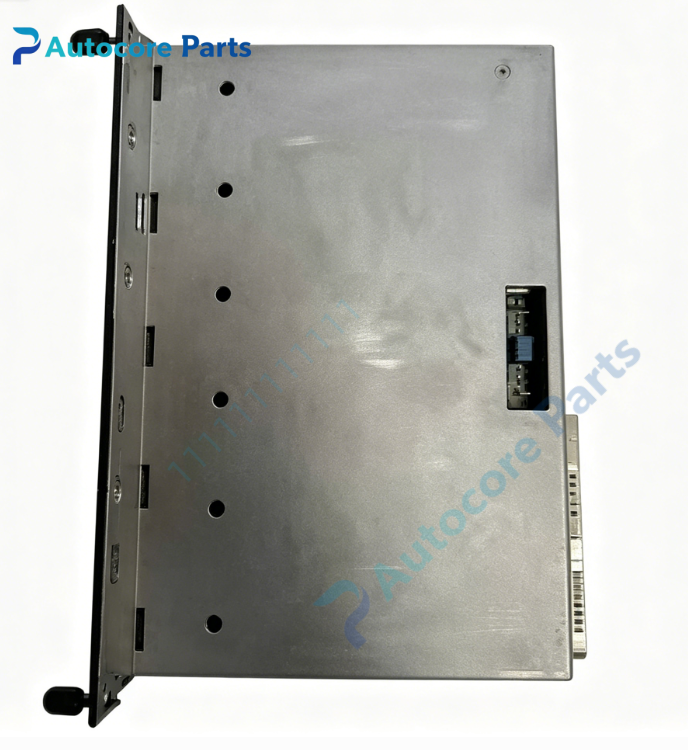

KEBA TT081 02203-7614 Digital Input Module

Technical Specifications

Model:02203-7614

Brand:KEBA

Product type:8-channel digital input module

Power supply:24 Vdc

Control function:Field switch signal acquisition,signal filtering,channel status detection,hardware self-diagnosis,fault indication

Communication:Internal backplane bus

Mounting:Plug-in rack mounting

Operating temperature:-20~60℃

Relative humidity:5~95% non-condensing

Weight:0.15kg

Dimension:90mm90mm35mm

Certification:CE

System compatibility

02203-7614 belongs to KEBA industrial control system family,matched with KEBA CPU and I/O rack.Widely applied in injection molding machine and automated machinery control cabinets.This is a discontinued legacy digital input module for equipment maintenance spare replacement.

Function

02203-7614 serves as KEBA TT081 8-channel digital input module.It collects on-site switching status signals from sensors,limit switches and buttons,transmits digital signals to main controller through backplane bus.Each channel adopts signal filtering and overvoltage protection,can detect input channel abnormality and feed back status information to the host.It is the signal acquisition component of KEBA machinery control system.

Installation

Insert 02203-7614 into the designated rack slot and lock the handle.Complete field switch wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

Interface

‑Rack backplane connector

‑Screw terminal block for field input

‑Channel status LED indicator

‑Module fault status lamp

Circuit feature

Isolated input circuit,built-in ESD and surge suppression design.Stable switch signal collection,strong anti-interference performance for industrial cabinet environment.

Feature

02203-7614 is obsolete KEBA series spare part.Typical failures include channel no signal input,indicator abnormal,backplane communication failure.Check module circuit and terminal pins before replacement.This module must match corresponding KEBA rack system,direct substitution without inspection is not recommended.

Diagnostic

When channel signal loss,short-circuit or internal hardware fault occurs,the module uploads fault information to main controller and lights up fault LED.

Built‑in function

8-channel digital signal acquisition,input signal filtering,channel status monitoring,used as KEBA TT081 series digital input module spare replacement.

Product Brief

02203-7614 is KEBA old industrial series 8CH digital input module for injection molding machine and automated production equipment.Confirm KEBA rack and CPU model matching before ordering.ESD protection required during handling and installation.
