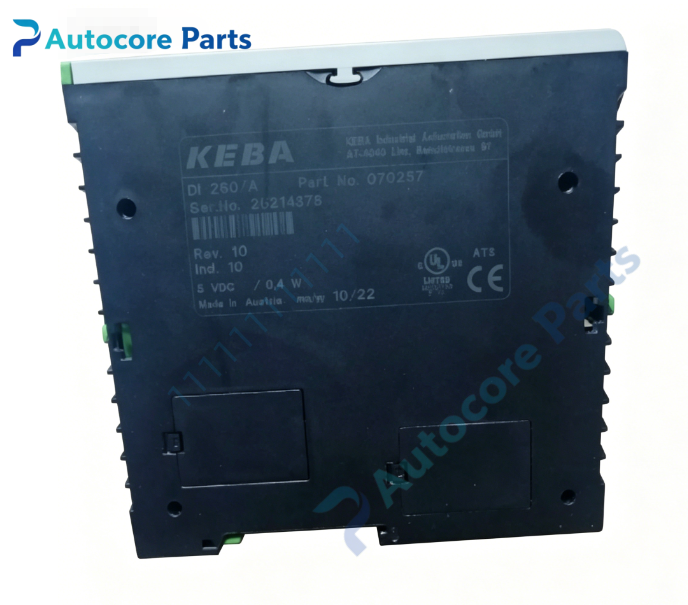

KEBA DI260/A Digital Input Module

Technical Specifications

Model:DI260/A

Brand:KEBA

Product type:Rack mount 16-channel digital input module

Power supply:24 Vdc,19.2~28.8V tolerance,max 0.8A

Control function:Digital signal collection,sensor signal acquisition,signal filtering,channel status monitoring,hardware self-diagnosis,fault indication

Communication:Kemro K2 backplane bus

Mounting:Plug-in rack slot installation

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.13kg

Dimension:120mm32.5mm100mm

Certification:CE

Protection class:IP20

System compatibility

DI260/A belongs to KEBA Kemro K2 control system family,matched with KEMRO-BUS-8 backplane,CPU modules and power modules.Widely applied in injection molding,die-casting machine control cabinets.This is a discontinued legacy digital input module for equipment maintenance spare replacement.

Function

DI260/A serves as KEBA rack 16-channel digital input module.It collects digital switching signals from field proximity switches and sensors.Two channels support interrupt input function,input filter can be configured to eliminate signal jitter.It adopts galvanic isolation design to protect internal control circuit.It feeds channel signal status back to main controller through backplane bus.It acts as field digital signal acquisition component for Kemro K2 modular control system.

Installation

Insert DI260/A into the designated rack slot and lock the latch.Complete field sensor wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

Interface

‑24Vdc power input terminal

‑Field digital input terminal block

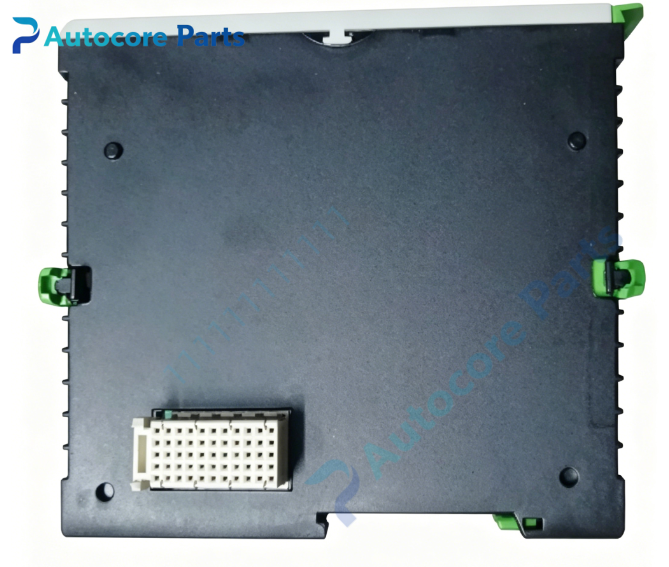

‑Kemro K2 backplane gold finger connector

‑Channel status and fault LED indicator

Circuit feature

Built-in ESD and surge suppression circuit,galvanic isolation design,configurable input filter,strong anti-interference performance for industrial cabinet environment.

Feature

DI260/A is obsolete KEBA series spare part.Typical failures include channel no signal acquisition,signal loss,connector oxidation.Check module circuit,input channels and gold fingers before replacement.This module must match Kemro K2 series rack system,direct substitution without inspection is not recommended.

Diagnostic

When signal abnormality or internal hardware fault occurs,the module triggers protection and lights up fault LED.

Built‑in function:Digital signal acquisition,sensor signal collection,configurable signal filtering,galvanic isolation,status monitoring,self-diagnosis and fault alarm,used as KEBA Kemro K2 series digital input module spare replacement.

Product Brief

DI260/A is KEBA old industrial rack 16-channel digital input module for injection molding and die-casting machine automation equipment.Confirm compatibility with Kemro K2 backplane before ordering.ESD protection required during handling and installation.
