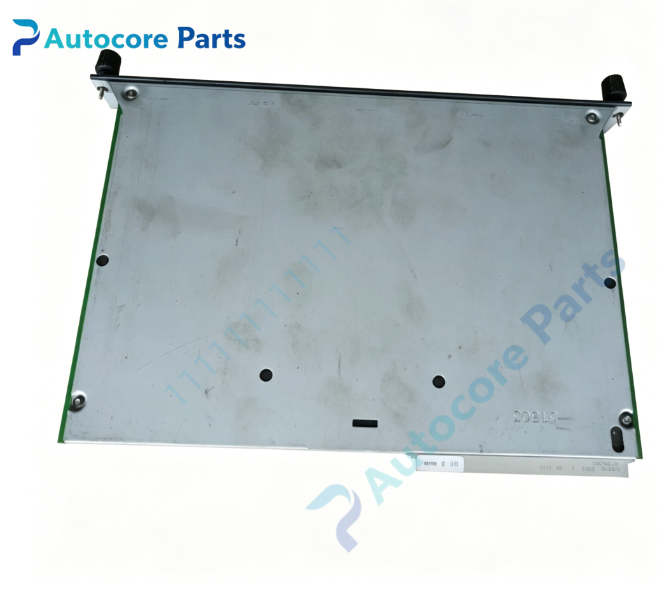

KEBA D0321 Digital Output Module

Technical Specifications

Model:D0321

Brand:KEBA

Product type:Rack mount high density digital output module

Power supply:24 Vdc,19.2~28.8V tolerance,max 0.8A

Control function:Digital signal output,actuator driving,overcurrent protection,channel status monitoring,hardware self-diagnosis,fault indication

Communication:Kemro K2 backplane bus

Mounting:Plug-in rack slot installation

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.32kg

Dimension:260mm64mm25mm

Certification:CE

Protection class:IP20

System compatibility

D0321 belongs to KEBA Kemro K2 control system family,matched with KEMRO-BUS-8 backplane,CPU modules and power modules.Widely applied in injection molding,die-casting machine control cabinets.This is a discontinued legacy digital output module for equipment maintenance spare replacement.

Function

D0321 serves as KEBA rack high density digital output module.It receives control instructions from the main CPU and outputs switching signals to drive field solenoid valves and actuators.Each channel is equipped with independent overcurrent protection to prevent damage caused by field short circuit.It feeds channel status and fault information back to the controller through backplane bus.It acts as field digital output driving component for Kemro K2 modular control system.

Installation

Insert D0321 into the designated rack slot and lock the latch.Complete field output wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

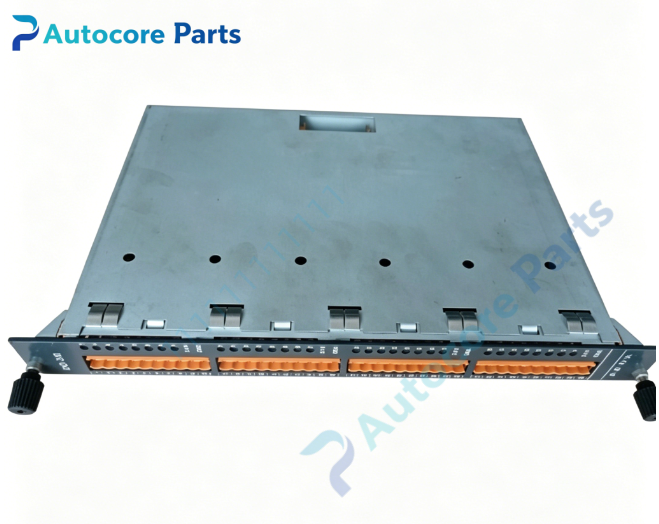

Interface

‑24Vdc power input terminal

‑Field digital output terminal block

‑Kemro K2 backplane gold finger connector

‑Channel status and fault LED indicator

Circuit feature

Built-in ESD and surge suppression circuit,output channel isolation design,strong anti-interference performance for industrial cabinet environment.

Feature

D0321 is obsolete KEBA series spare part.Typical failures include single channel no output,channel burnout,overcurrent protection trip,connector oxidation.Check module circuit,output channels and gold fingers before replacement.This module must match Kemro K2 series rack system,direct substitution without inspection is not recommended.

Diagnostic

When channel short-circuit,overcurrent or internal hardware fault occurs,the module triggers protection and lights up fault LED.

Built‑in function:Digital signal output,field actuator driving,per-channel overcurrent protection,signal status monitoring,self-diagnosis and fault alarm,used as KEBA Kemro K2 series digital output module spare replacement.

Product Brief

D0321 is KEBA old industrial rack high density digital output module for injection molding and die-casting machine automation equipment.Confirm compatibility with Kemro K2 backplane before ordering.ESD protection required during handling and installation.
