ICS TRIPLEX T8444 Analog Output Module

Technical Specifications

Model:T8444

Brand:ICS TRIPLEX

Product type:TMR 4-channel analog output module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T8300 / T8314 expander chassis,T8310 expander processor,T8311 expander interface

Redundancy:TMR triple modular redundant hot swap architecture

Field output:4-20mA / 0~10VDC,4 channels

Accuracy:±0.05% full scale

Galvanic isolation:2500V

Load resistance:≤750Ω for current output

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:0.50kg

Certification:CE,TÜV,SIL3

System compatibility

T8444 belongs to ICS TRIPLEX Trusted SIS safety instrumented system and installs inside T8300 or T8314 expander rack. It receives triplicated safety control commands from expander processor,converts digital safety signals into analog control signals to drive field control valves and positioners. Widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8444 serves as high integrity 4-channel analog output unit of Trusted TMR SIS. It executes TMR 2oo3 hardware voting logic to generate stable 4-20mA or 0-10V analog output for final control elements. Each channel continuously monitors output loop status,short circuit and open circuit faults. It supports hot swap replacement without powering down the safety expansion rack.

Installation

Insert T8444 vertically into dedicated I/O slot of T8300/T8314 expander chassis. Wire field valve positioner cables to terminal assembly. Verify output value and fault alarms via Trusted Workbench engineering software.

Interface

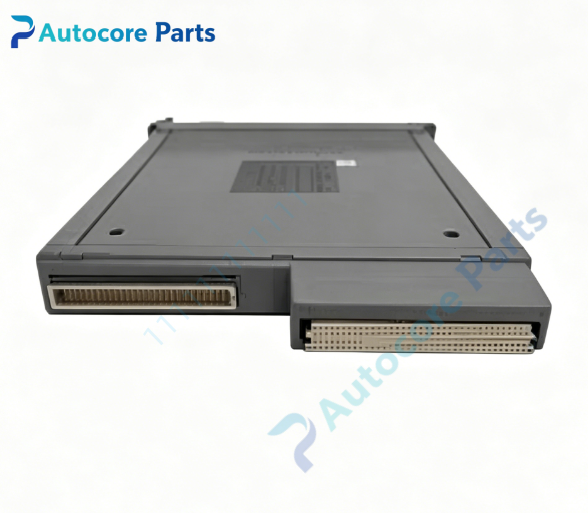

‑Gold finger connector for triple redundant backplane bus

‑Field termination interface for 4-channel analog output wiring

‑Front panel LED indicators for per-channel run,alarm and fault status

‑Onboard TMR output generation and channel diagnostic circuit

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Triple slice independent output control and hardware voting design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8444 is spare 4-channel analog output board for ICS TRIPLEX Trusted SIS. Common faults include output channel burnout,field wiring short circuit and backplane contact fault. Confirm field actuator type and chassis compatibility before replacement.

Diagnostic

When channel open circuit,short circuit or onboard hardware failure is detected,the module triggers fault alarm and uploads diagnostic messages to safety workstation.

Built‑in function

Safety analog control signal output,per-channel loop fault monitoring and TMR signal voting for Trusted TMR expansion rack,used as SIS analog output spare replacement.

Product Brief

T8444 is ICS TRIPLEX Trusted SIL3 TMR 4-channel analog output module,hot swappable for T8300/T8314 expander chassis,suitable for 4-20mA valve positioners. Verify system firmware compatibility before ordering. ESD anti-static protection must be followed during handling installation.
