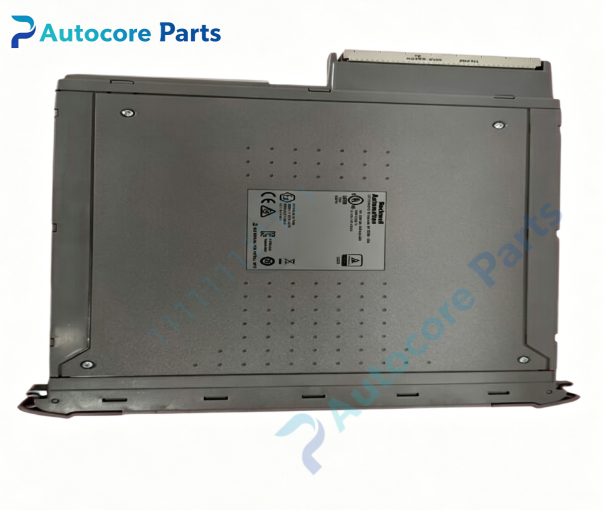

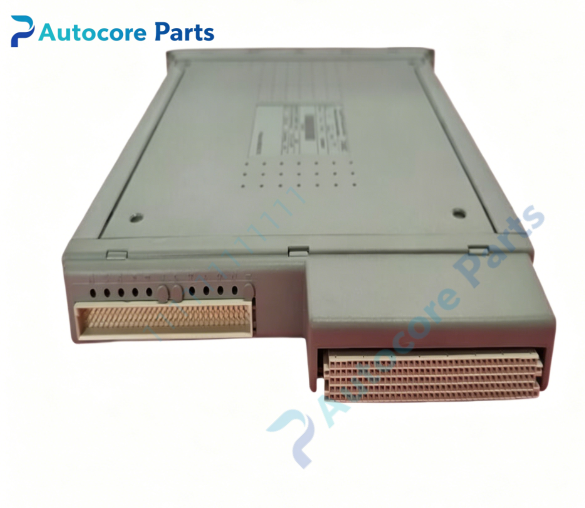

ICS TRIPLEX T8472C Digital Output Module

Technical Specifications

Model:T8472C

Brand:ICS TRIPLEX

Product type:TMR 32-channel 120VAC digital output module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T8300 / T8314 expander chassis,T8310 expander processor,T8311 expander interface

Redundancy:TMR triple modular redundant hot swap architecture

Field output:120VAC,32 channels,4 independent power groups (8 channels per group)

Per channel continuous current:0.5A

Group maximum current:2A

System supply:20~32VDC

Galvanic isolation:2500V AC

Protection:Latching electronic short-circuit protection per channel

Coating:Conformal coated PCB for corrosive,humid and dusty industrial sites

Operating temperature:-5~+60℃

Relative humidity:5~95% non-condensing

Weight:2.10kg

Certification:CE,TÜV,SIL3

System compatibility

T8472C belongs to ICS TRIPLEX Trusted SIS safety instrumented system and installs inside T8300 or T8314 expander rack. It receives triplicated safety trip commands from expander processor and outputs 120VAC discrete signals to drive AC safety relays and solenoid valves. The conformal coated PCB protects internal circuits from moisture and chemical vapour,suited for offshore and heavy industrial safety applications. Widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8472C serves as high integrity 32-channel 120VAC digital output unit of Trusted TMR SIS. It executes TMR 2oo3 hardware voting logic to output safety trip signals for AC final safety elements. Each channel continuously monitors open circuit,short circuit and overload faults. It supports hot swap replacement without shutting down the safety expansion rack.

Installation

Insert T8472C vertically into dedicated I/O slot of T8300/T8314 expander chassis. Connect field AC solenoid and relay wiring to terminal assembly. Verify output status and fault alarms via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus

‑Field termination interface for 32-channel 120VAC digital output wiring

‑Front panel LED indicators for per-channel run,alarm and fault status

‑Onboard TMR output control,short-circuit protection and channel diagnostic circuit

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Triple slice independent output control and hardware voting design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8472C is spare conformal coated 32-channel 120VAC digital output board for ICS TRIPLEX Trusted SIS. Common faults include output channel burnout,field wiring short circuit and backplane contact fault. Confirm field actuator load and chassis compatibility before replacement.

Diagnostic

When channel open circuit,short circuit,overload or onboard hardware failure is detected,the module triggers fault alarm and uploads diagnostic messages to safety workstation.

Built‑in function

AC safety discrete 120VAC signal output,per-channel short-circuit & wiring fault monitoring and TMR signal voting for Trusted TMR expansion rack,used as SIS digital output spare replacement.

Product Brief

T8472C is ICS TRIPLEX Trusted SIL3 TMR conformal coated 32-channel 120VAC digital output module,hot swappable for T8300/T8314 expander chassis,designed for AC safety relay and solenoid valve driving in harsh industrial environments. Verify system firmware compatibility before ordering. ESD anti-static protection must be followed during handling installation.
