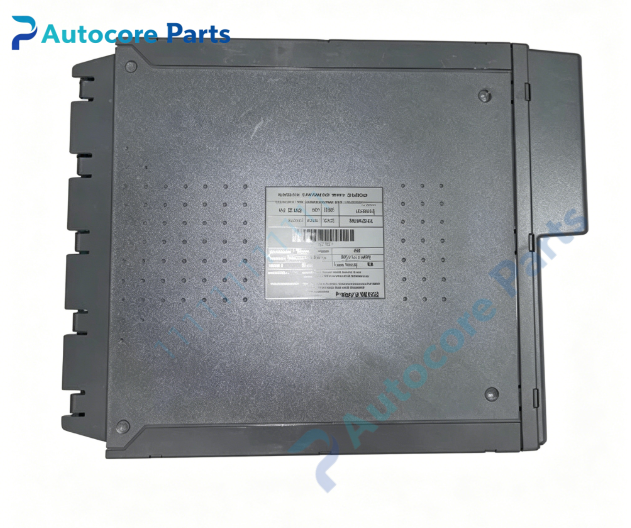

ICS TRIPLEX T8311C Expander Interface Module

Technical Specifications

Model:T8311C

Brand:ICS TRIPLEX

Product type:TMR upgraded expander interface module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus,high-speed differential expander serial bus

Compatible modules:T8300 expander chassis,T8310 expander processor,T84xx I/O modules,T8110 series main processor

Redundancy:TMR triple modular redundant hot swap architecture

Power supply:20~32VDC supplied from T8300 chassis backplane

Expander bus speed:250Mbps

Power dissipation:40W

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:1.14kg

Certification:CE,TÜV,SIL3

System compatibility

T8311C belongs to ICS TRIPLEX Trusted SIS safety instrumented system and installs inside T8300 expansion rack. It works with T8310 expander processor to transmit safety signals between expander CPU and T84xx field I/O modules. It provides stronger fault containment function to restrict I/O bus faults and protect main safety controller. Widely applied in oil & gas,petrochemical and chemical industries for ESD emergency shutdown and fire & gas safety protection.

Function

T8311C is the upgraded expander bus gateway unit of Trusted TMR SIS. It carries out bidirectional safety data transmission between expander processor and distributed I/O modules. It adopts enhanced diagnosis algorithm to monitor bus communication quality,channel health and onboard hardware state. It isolates I/O bus faults to prevent fault propagation to main controller core safety logic,single slice failure will not shut down the whole expansion rack.

Installation

Vertically insert T8311C into dedicated interface slot of T8300 expander rack. Complete expander differential bus wiring and backplane connection. Check bus communication status and fault information through Trusted Workbench.

Interface

‑Gold finger connector for triple redundant backplane bus

‑Rear differential port for expander I/O bus connection

‑Front panel LED indicators for run, alarm and fault

‑Onboard TMR voting and enhanced fault isolation circuit

Circuit feature

Conformal coated multi-layer PCB,built-in surge and overvoltage protection. Triple channel hardware voting and fault containment architecture,fully meets SIL3 functional safety requirements.

Feature

T8311C is spare upgraded expander interface board for ICS TRIPLEX Trusted SIS. Typical faults include bus transceiver damage,backplane contact failure and communication channel error. Confirm T8300 rack slot definition and firmware compatibility before replacement.

Diagnostic

Once expander bus disconnection,channel transmission error or hardware breakdown is detected,the module triggers alarm and uploads diagnostic messages to safety workstation.

Built‑in function

Expander bus signal bridging,fault isolation and enhanced hardware self-diagnosis for Trusted TMR expansion rack,used as SIS expander bus interface spare replacement.

Product Brief

T8311C is ICS TRIPLEX Trusted SIL3 upgraded TMR expander interface module,hot swappable for T8300 chassis. Verify system firmware compatibility before purchase. ESD protection required during handling and installation.
