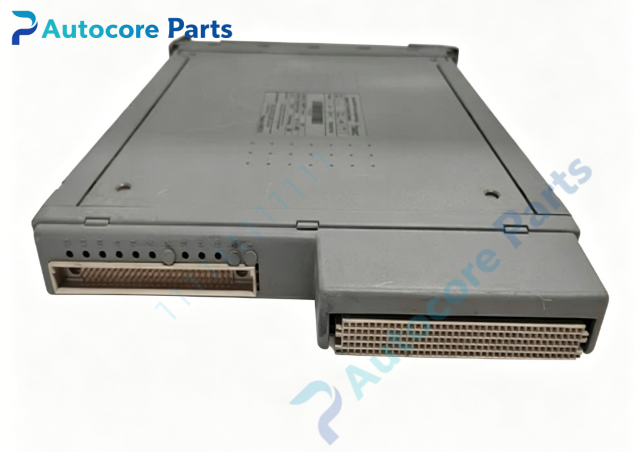

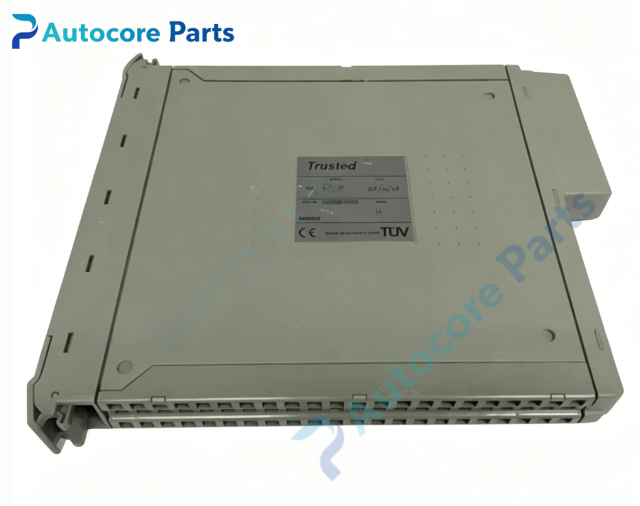

ICS TRIPLEX T8311 Expander Interface Module

Technical Specifications

Model:T8311

Brand:ICS TRIPLEX

Product type:TMR expander interface module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus,high-speed differential expander serial bus

Compatible modules:T8300 expander chassis,T8310 expander processor,T84xx I/O modules,T8110 series main processor

Redundancy:TMR triple modular redundant hot swap architecture

Power supply:20~32VDC supplied from T8300 chassis backplane

Bus speed:250Mbps

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:1.14kg

Certification:CE,TÜV,SIL3

System compatibility

T8311 belongs to ICS TRIPLEX Trusted SIS safety instrumented system,mounted inside T8300 expansion rack. It works with T8310 expander processor to realize high-speed data transmission between expander CPU and T84xx I/O modules. It limits fault spread on the I/O bus and protects main safety controller. Widely applied in oil & gas,petrochemical and chemical industries for ESD emergency shutdown and fire & gas safety protection.

Function

T8311 is the dedicated expander bus gateway unit of Trusted TMR SIS. It performs bidirectional safety data transmission between expander processor and field I/O modules. Continuous self-diagnosis monitors bus communication,channel health and onboard hardware. It isolates bus faults so that local I/O failures will not affect the core safety logic of main controller. Single slice fault will not stop system operation.

Installation

Vertically insert T8311 into dedicated interface slot of T8300 expander rack. Complete expander bus wiring and backplane connection. Check communication status and fault details through Trusted Workbench.

Interface

‑Gold finger connector for triple redundant backplane bus

‑Rear differential port for expander I/O bus connection

‑Front LED indicators for run, alarm and fault

‑Onboard TMR voting and fault isolation circuit

Circuit feature

Conformal coated multi-layer PCB,built-in surge and overvoltage protection. Triple channel hardware voting and fault containment architecture,fully meets SIL3 functional safety requirements.

Feature

T8311 is spare expander interface board for ICS TRIPLEX Trusted SIS. Typical faults include bus transceiver damage,backplane contact failure and communication channel error. Confirm T8300 rack slot definition and firmware compatibility before replacement.

Diagnostic

Once expander bus disconnection,channel transmission error or hardware breakdown is detected,the module triggers alarm and uploads diagnostic messages to safety workstation.

Built‑in function

Expander bus signal bridging,fault isolation and hardware self-diagnosis for Trusted TMR expansion rack,used as SIS expander bus interface spare replacement.

Product Brief

T8311 is ICS TRIPLEX Trusted SIL3 TMR expander interface module,hot swappable for T8300 chassis. Verify system firmware compatibility before purchase. ESD protection required during handling and installation.
