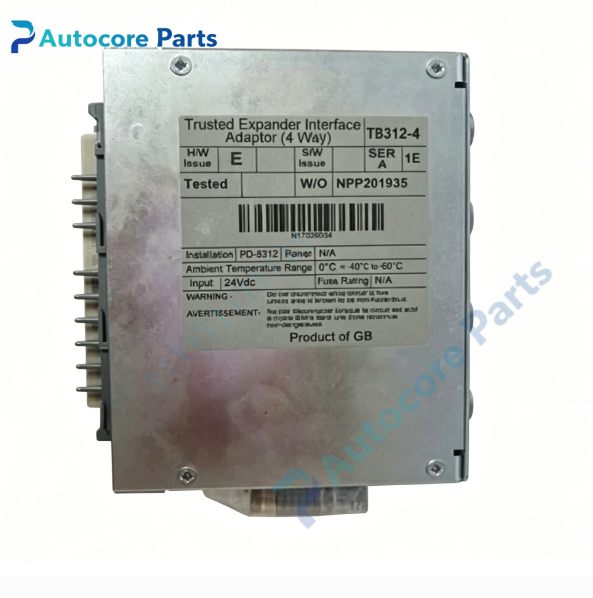

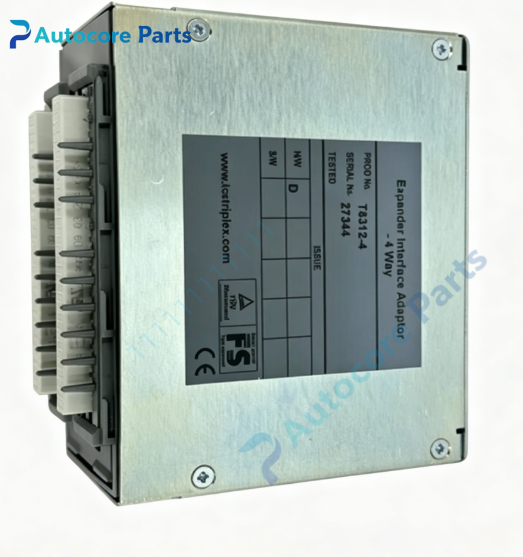

ICS TRIPLEX T8312-4 Expander Interface Adapter

Technical Specifications

Model:T8312-4

Brand:ICS TRIPLEX

Product type:TMR expander interface adapter

System series:Trusted T8000 SIS

Bus type:High-speed differential expander serial bus

Compatible modules:T8310 expander processor,T8300 expander chassis,TC-301 hot link cable,T8110 series main processor

Redundancy:TMR triple modular redundant architecture

Power bus:20~32V DC from T8300 chassis backplane

Data transfer rate:250Mbps

Cable interface:Matched with TC-301 hot link cable

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:0.68kg

Certification:CE,TÜV,SIL3

System compatibility

This expander interface adapter hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system and installs in T8300 expander chassis. It serves as physical interface between T8310 expander processor and TC-301 hot link cable,realizes high-speed data connection between main T8100 controller chassis and remote expansion rack. Widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8312-4 serves as the high integrity hot link interface adapter unit of Trusted TMR SIS. It provides differential signal conversion and physical connection for expander bus communication. It continuously monitors link signal quality and cable connection status. Its TMR design ensures reliable data transmission even with single channel signal degradation,maintaining stable communication between main controller and expansion I/O rack.

Installation

Mount T8312-4 adapter onto the rear connector of T8310 expander processor inside T8300 chassis. Connect TC-301 hot link cable between adapter and main controller chassis. Verify link status and communication quality via Trusted Workbench engineering software.

Interface

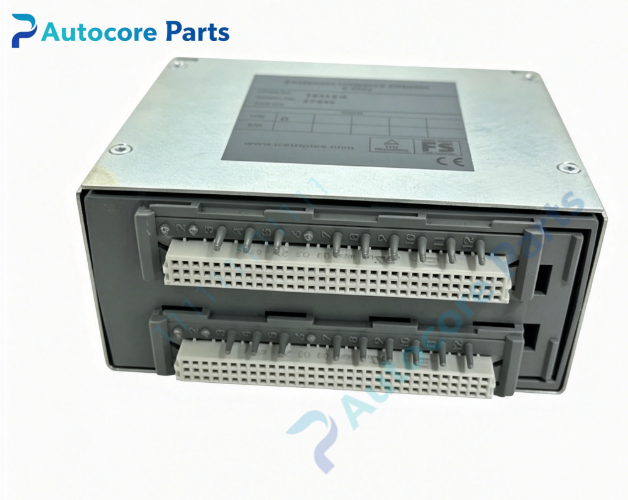

‑Rear connector for T8310 expander processor mating

‑Differential port for TC-301 hot link cable connection

‑Onboard signal conversion and impedance matching circuit

‑LED indicators for link running,alarm and fault prompt

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and ESD protection circuit. Triple channel differential signal design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8312-4 is a spare expander interface adapter for ICS TRIPLEX Trusted SIS system. Common faults include cable connector damage,differential signal circuit failure and backplane contact fault. Confirm T8310 processor compatibility and TC-301 cable specification before replacement.

Diagnostic

When hot link cable disconnection,differential signal loss or adapter hardware fault is detected,the system will trigger communication alarm and upload diagnostic messages to safety workstation.

Built‑in function

Expander bus physical interface,differential signal conversion and link status monitoring for Trusted TMR expansion rack,used as SIS expander interface adapter spare replacement.

Product Brief

T8312-4 is ICS TRIPLEX Trusted SIL3 TMR expander interface adapter,works with T8310 processor and TC-301 hot link cable in T8300 chassis. Verify cable and processor compatibility before ordering. ESD anti-static protection must be followed during handling installation.
