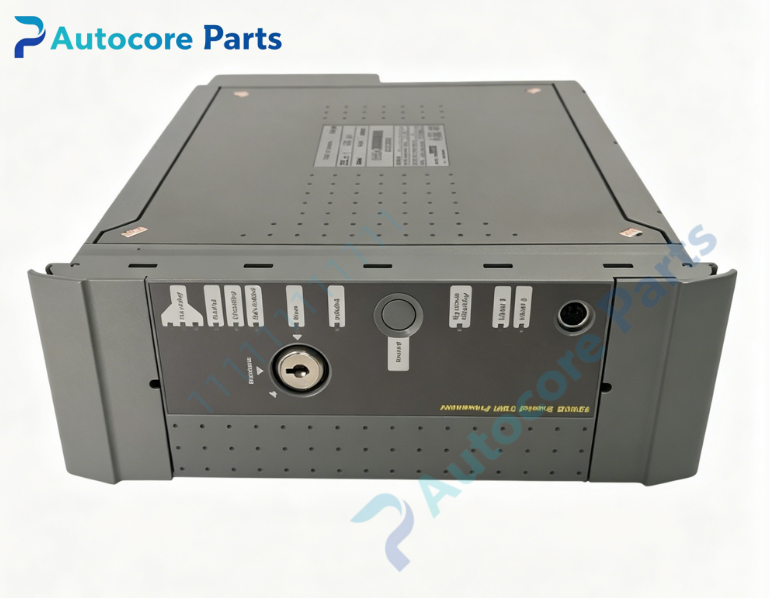

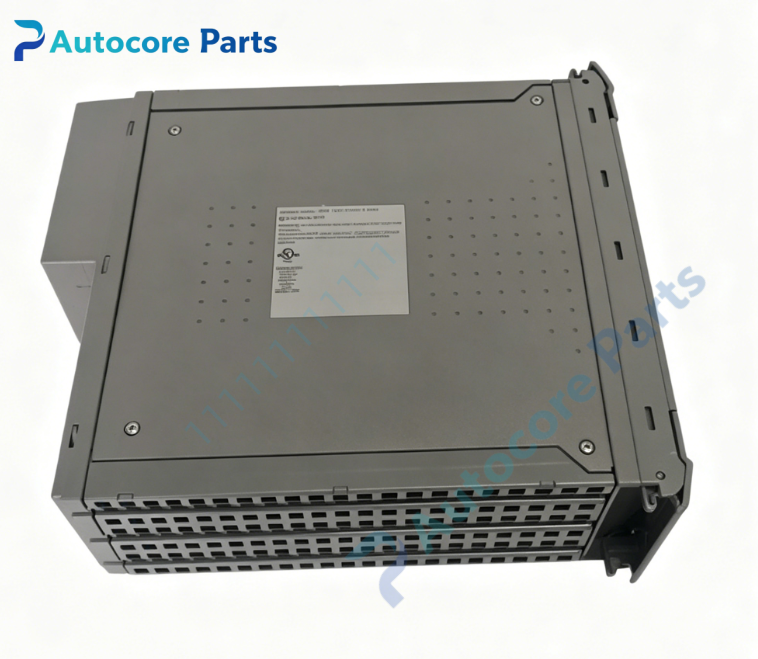

ICS TRIPLEX T8170 Gateway Module

Technical Specifications

Model:T8170

Brand:ICS TRIPLEX

Product type:TMR embedded gateway module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T8110 series processor,T8100 chassis,T8173 adapter,redundant power supply,I/O modules

Redundancy:TMR triple modular redundant hot swap architecture

Power supply:24VDC from rack backplane

Network:Dual 10/100Mbps Ethernet

Auxiliary port:1 serial maintenance port

Peripheral interface:Supports VGA, keyboard, mouse via T8173 adapter

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:2.75kg

Certification:CE,TÜV,SIL3

System compatibility

T8170 belongs to ICS TRIPLEX Trusted SIS safety instrumented system,installed inside T8100 rack. It is an independent embedded gateway,responsible for exchanging safety tags,alarm messages and sequence of events data between Trusted SIS and upper monitoring systems. Widely applied in oil & gas,petrochemical and chemical industries for ESD emergency shutdown and fire & gas safety protection.

Function

T8170 is the embedded gateway unit of Trusted TMR SIS. It runs OPC server to provide upper system access to safety data. It will not interfere with the safety logic running on TMR processor. Continuous self-diagnosis monitors network link,storage and hardware status. Dual redundant Ethernet prevents communication interruption caused by single link failure.

Installation

Vertically insert T8170 into dedicated gateway slot of T8100 rack. Mount T8173 adapter,complete Ethernet wiring and backplane connection. Check gateway operating state and fault information through Trusted Workbench.

Interface

‑Gold finger connector for triple redundant backplane bus

‑Dual 10/100Mbps Ethernet ports for redundant network

‑Serial maintenance port for local debugging

‑Rear connector for T8173 peripheral adapter

‑LED indicators for run, alarm and fault status

Circuit feature

Conformal coated multi-layer PCB,built-in surge and overvoltage protection. Independent hardware architecture,separate from safety voting path,compliant with SIL3 functional safety requirements.

Feature

T8170 is spare embedded gateway board for Trusted SIS. Typical faults include network port damage,storage failure and backplane contact fault. Confirm rack slot definition and firmware compatibility before replacement.

Diagnostic

Once network disconnection,storage abnormality or hardware failure is detected,the module triggers alarm and uploads diagnostic messages to safety workstation.

Built‑in function

Embedded gateway operation,OPC data service,SOE event transmission and hardware self-diagnosis for Trusted TMR rack,used as SIS upper monitoring gateway spare.

Product Brief

T8170 is ICS TRIPLEX Trusted SIL3 embedded gateway module,TMR hot swap capable,must be used together with T8173 adapter. Confirm system compatibility before purchase. ESD protection is required during handling and installation.
