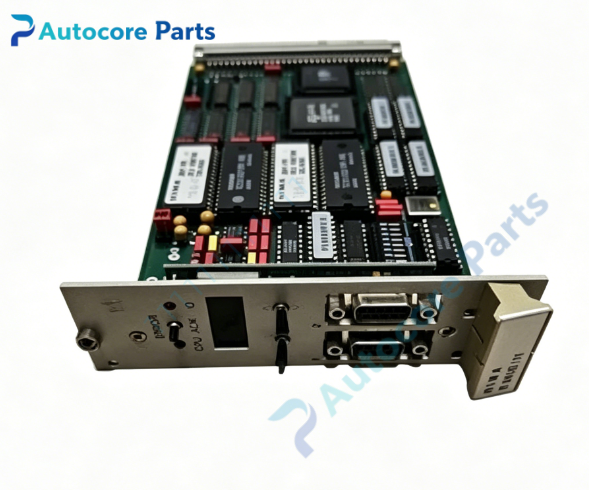

HIMA F8620 Safety Processor Module

Technical Specifications

Model:F8620

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Power supply:24V DC

Architecture:1oo2 dual processor redundant fail-safe

Diagnosis:Hardware watchdog,periodic comprehensive hardware self-test

Mounting:Plug-in subrack installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.395kg

Certification:CE

System compatibility

Designed for HIMA H41q safety system,runs safety application program,processes I/O signals and executes safety interlock logic,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 redundant safety processor module.It executes safety logic program,collects field I/O data,performs safety calculation and outputs safety control commands.Dual CPUs cross-check calculation results,built-in hardware watchdog and continuous self-test.When hardware fault or safety trip triggered,the module automatically enters predefined safe state.

Installation

Plug into H41q rack backplane,match with H41q I/O and communication modules,download safety project via SILworX engineering software.

Interface

‑Backplane safety bus connector

‑Front panel serial communication ports

‑LED indicators for run,fault and communication status

Circuit feature

1oo2 dual redundant fail-safe architecture,continuous hardware self-test,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

H41q series SIL3 safety processor F8620. Common faults:firmware failure,backplane contact failure,communication circuit damage.Confirm rack firmware version before replacement.

Diagnostic

Internal hardware fault or communication error triggers fault alarm;controller executes safety interlock logic.

Built‑in function

F8620 performs safety logic calculation and SOE sequence of event recording for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

F8620 belongs to HIMA H41q family,plug-in SIL3 redundant safety processor module for H41q safety subrack. Verify rack compatibility before ordering.Test safety logic and self-diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
