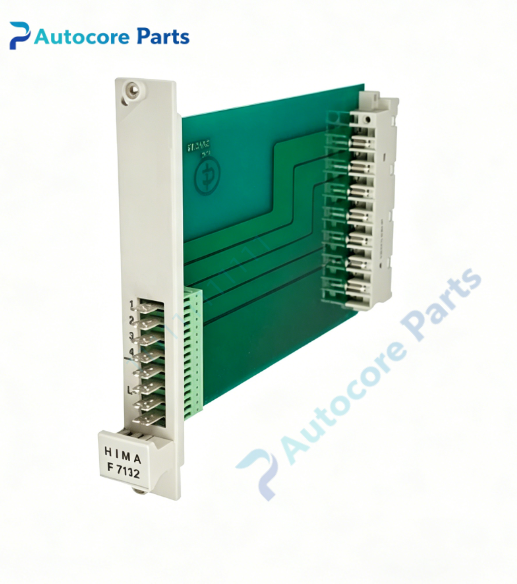

HIMA F7132 Safety Digital Input Module

Technical Specifications

Model:F7132

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Channel:16-channel safety digital input

Input:24V DC,dry contact or PNP/NPN signal

Diagnosis:Per-channel wire break and short circuit loop monitoring

Mounting:Plug-in subrack installation,hot swap support

Protection class:IP20

Power supply:24V DC

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.37kg

Certification:CE

System compatibility

Designed for HIMA H51q safety system,collects digital status signals from field safety switches and sensors,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 16-channel safety digital input module.It acquires digital safety signals from field sensors and transmits converted digital values to H51q safety controller.Each channel performs independent loop fault monitoring.When wire break or short circuit detected,the module triggers fault alarm and system enters predefined safe state.

Installation

Plug into H51q rack backplane,wire field safety sensors to module terminals,configure via SILworX engineering software.

Interface

‑16 channels signal input terminals

‑Backplane safety bus connector

‑LED indicators for channel,communication and fault status

Circuit feature

1oo2 fail-safe safety architecture,continuous hardware self-test,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

H51q series SIL3 digital input module F7132. Common faults:input channel damage,terminal connector failure,backplane contact failure.Confirm rack compatibility before replacement.

Diagnostic

Input circuit wire break or short circuit triggers channel fault alarm;controller executes safety interlock logic.

Built‑in function

F7132 collects field digital safety status signals for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

F7132 belongs to HIMA H51q family,plug-in SIL3 16-channel digital input module for H51q safety subrack. Verify rack compatibility before ordering.Test signal acquisition and fault diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
