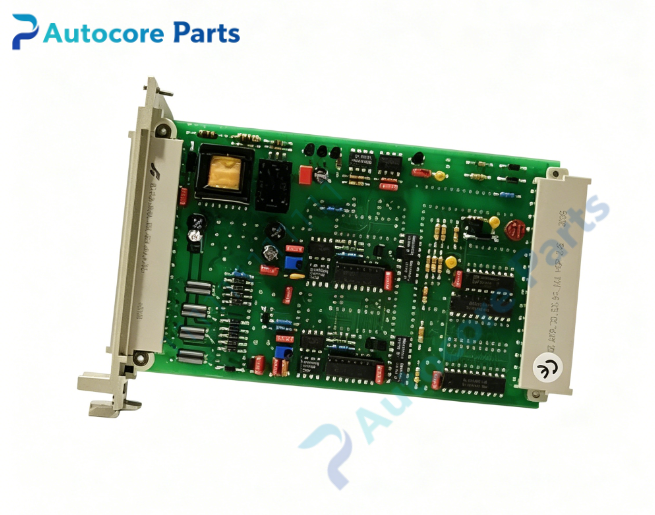

HIMA F67062 Safety Analog Output Module

Technical Specifications

Model:F67062

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Channel:2-channel safety analog output

Signal type:0/4~20mA,0~10V

Resolution:12-bit

Diagnosis:Per-channel wire break,short circuit and load monitoring

Mounting:Plug-in subrack installation

Protection class:IP20

Power supply:24V DC

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.17kg

Certification:CE

System compatibility

Special variant version of F6706,designed for HIMA HIQuad X safety system,outputs analog control signals to field regulating valves,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 2-channel safety analog output module.It receives safety control commands from HIQuad X safety controller and outputs 0/4-20mA or 0-10V analog control signals.Each channel supports galvanic isolation and independent loop fault monitoring.When wire break,short circuit or load fault detected,the module triggers fault alarm and system enters predefined safe state.

Installation

Plug into HIQuad X rack backplane,wire field regulating valves to module terminals,configure signal type via SILworX engineering software.

Interface

‑2 channels analog output terminals

‑Backplane safety bus connector

‑LED indicators for channel,communication and fault status

Circuit feature

1oo2 fail-safe safety architecture,continuous hardware self-test,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad X series special variant SIL3 analog output module F67062. Common faults:output channel damage,terminal connector failure,backplane contact failure.Confirm rack compatibility before replacement.

Diagnostic

Output circuit wire break,short circuit or load error triggers fault alarm;controller executes safety interlock logic.

Built‑in function

F67062 outputs analog control signals for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

F67062 belongs to HIMA HIQuad X family,plug-in SIL3 analog output module (special variant of F6706) for HIQuad X safety subrack. Verify rack compatibility before ordering.Test analog channel and diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
