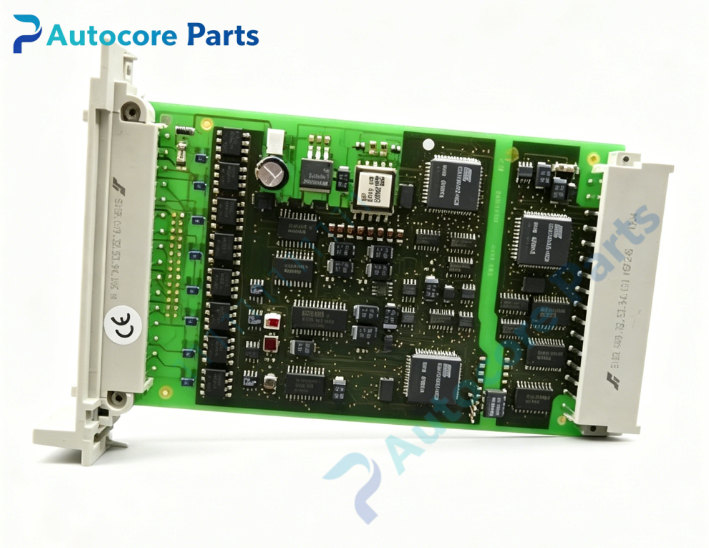

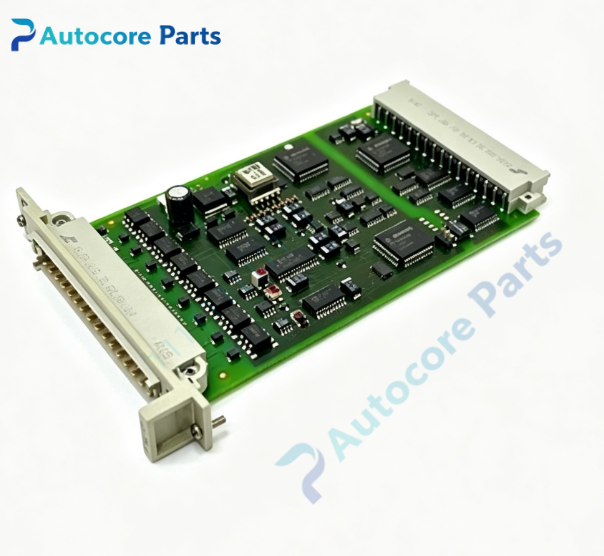

HIMA F6217 Safety Analog Input Module

Technical Specifications

Model:F6217

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Channel:8-channel analog input

Input signal:0/4~20mA,0~5V / 0~10V

Resolution:12-bit

Diagnosis:Wire break,short circuit and signal overrange monitoring

Mounting:Plug-in subrack installation

Protection class:IP20

Power supply:24V DC

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:0.14kg

Certification:CE

System compatibility

Designed for HIMA HIQuad X safety system,collects pressure,flow,temperature analog signals from field transmitters,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 8-channel safety analog input module.It acquires analog field measurement signals,converts to digital values and transmits data to HIQuad X safety controller.Each channel has galvanic isolation and independent loop fault monitoring.When wire break,short circuit or signal out of range occurs,the module triggers alarm and system enters predefined safe state.

Installation

Plug into HIQuad X rack backplane,wire field transmitters to module terminals,configure signal range via SILworX engineering software.

Interface

‑8 channels analog signal input terminals

‑Backplane safety bus connector

‑LED indicators for channel,communication and fault status

Circuit feature

1oo2 fail-safe safety architecture,continuous hardware self-test,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad X series SIL3 analog input module F6217. Common faults:input channel damage,terminal connector failure,backplane contact failure.Confirm firmware version before replacement.

Diagnostic

Input circuit wire break,short circuit or signal overrange triggers fault alarm;controller executes safety interlock logic.

Built‑in function

F6217 collects field analog measurement signals for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

F6217 belongs to HIMA HIQuad X family,plug-in SIL3 8-channel analog input module for HIQuad X safety subrack. Verify rack compatibility before ordering.Test analog channel and diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
