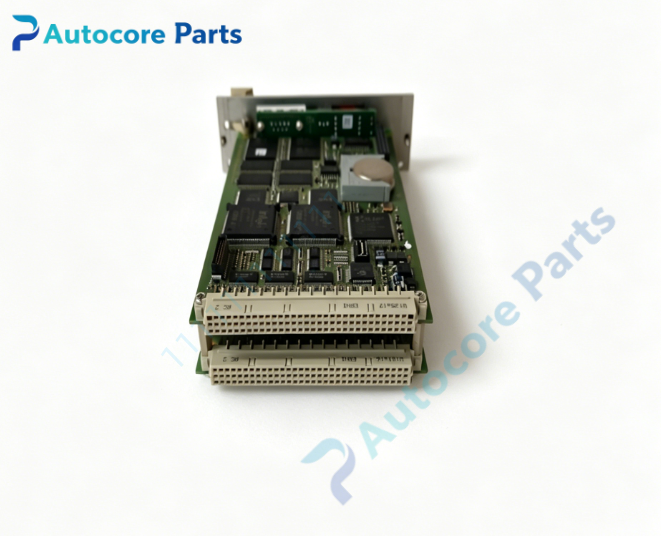

HIMA F6216 Safety Analog Input Module

Technical Specifications

Model:F6216

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Channel:8-channel analog input

Signal type:4~20mA 2-wire transmitter, Pt100 RTD

Resolution:12-bit

Diagnosis:Per-channel wire break,short circuit and transmitter fault monitoring

Mounting:Plug-in subrack installation

Protection class:IP20

Power supply:24V DC

Operating temperature:-20~+70℃

Relative humidity:5~95% non-condensing

Weight:0.41kg

Certification:CE

System compatibility

Designed for HIMA HIQuad X safety system,collects temperature,pressure and flow field signals,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 8-channel safety analog input module.It collects analog measurement signals from field transmitters and RTD sensors,converts signals to digital data and sends to HIQuad X safety controller.Each channel has galvanic isolation and independent loop monitoring.When wire break,short circuit or transmitter failure detected,the module triggers fault alarm and system enters predefined safe state.

Installation

Plug into HIQuad X rack backplane,wire field transmitters and RTD sensors to module terminals,configure signal type via SILworX engineering software.

Interface

‑8 channels analog signal input terminals

‑Backplane safety bus connector

‑LED indicators for channel,communication and fault status

Circuit feature

1oo2 fail-safe safety architecture,continuous hardware self-test,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad X series SIL3 analog input module F6216. Common faults:input channel damage,terminal connector failure,backplane contact failure.Confirm firmware version before replacement.

Diagnostic

Input circuit wire break,short circuit or transmitter fault triggers fault alarm;controller executes safety interlock logic.

Built‑in function

F6216 acquires field analog measurement signals for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

F6216 belongs to HIMA HIQuad X family,plug-in SIL3 8-channel analog input module for HIQuad X safety subrack. Verify rack compatibility before ordering.Test analog channel and diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
