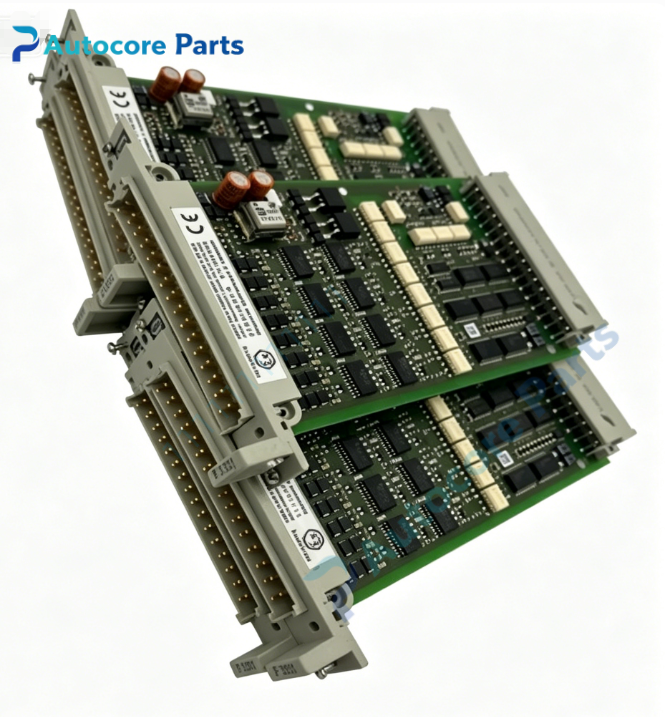

HIMA F3331 Digital Output Module

Technical Specifications

Model:F3331

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified,AK1~AK6

Channel:8-channel safety digital output

Output signal:24V DC,0.5A per channel,max 4A total for module

Diagnosis:Short circuit,overload,wire break and load loop monitoring

Mounting:Plug-in subrack installation,4TE width

Protection class:IP20

Power supply:24V DC

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:0.40kg

Certification:CE

System compatibility

Designed for HIMA HIQuad H41q / H51q safety system,output safety control signals for field solenoid valves,alarm relays and safety actuators,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 8-channel safety digital output module.It receives safety logic command from HIQuad CPU,outputs 24V DC control signal to field safety equipment,supports continuous wiring fault diagnosis for wire break,short circuit and overload.When safety trip triggered,module will cut off output to realize fail-safe protection.

Installation

Plug into HIQuad H41q/H51q rack backplane,wire field actuators to module terminals,complete hardware configuration via ELOPII engineering software.

Interface

‑8 channels digital output terminals

‑Backplane bus connector for power and data exchange

‑LED indicators for channel status and fault

Circuit feature

1oo2 fail-safe safety architecture,periodic hardware self-test,built-in overcurrent protection,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad series 8-channel SIL3 24V DC digital output module F3331. Common faults:output channel burnout,overcurrent damage,connector pin failure.Confirm H41q/H51q rack firmware version before replacement.

Diagnostic

Module or wiring fault triggers channel fault alarm;controller executes safety interlock logic.

Built‑in function

F3331 outputs safety control signals for SIS safety instrumented system emergency shutdown and fire protection interlock,widely used for chemical and power plant safety spare replacement.

Product Brief

F3331 belongs to HIMA HIQuad I/O family,plug-in 8-channel SIL3 digital output module for H41q/H51q safety subrack. Verify rack compatibility before ordering. Test output performance and fault diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
