Fireye YB110UVSC BurnerLogix Y Integrated Burner Control Chassis

Technical Specifications

Model：YB110UVSC Brand：Fireye Product Type: BurnerLogix Y series microprocessor burner control chassis with built-in UV self-check flame amplifier

Control Feature:

• Amplifier type: UV self-check flame amplifier

• Sequence control: Pre-purge, ignition trial, flame supervision, post-purge and safety lockout

• Support burner modes: on/off, high-low-off and modulating burner

• Compatible flame detector: Fireye UV self-check series flame scanners such as UV90L-1, UV90L

• Built-in valve proving, burner runtime log and lockout fault history storage

• Support flame signal strength display and remote reset function

Electrical Parameters:

• Supply voltage: 120 VAC, 50/60Hz

• Power consumption: 25VA

• Flame input terminal: Dedicated UV self-check scanner wiring terminals

• Relay outputs: Fuel valve, ignition, alarm and auxiliary relay outputs

• Digital inputs: Safety interlock, airflow, pressure and temperature switch inputs

• Communication: Optional Modbus RTU communication module

Mechanical & Structure:

• Mounting: DIN rail installation inside control cabinet

• Housing: NEMA1 metal chassis

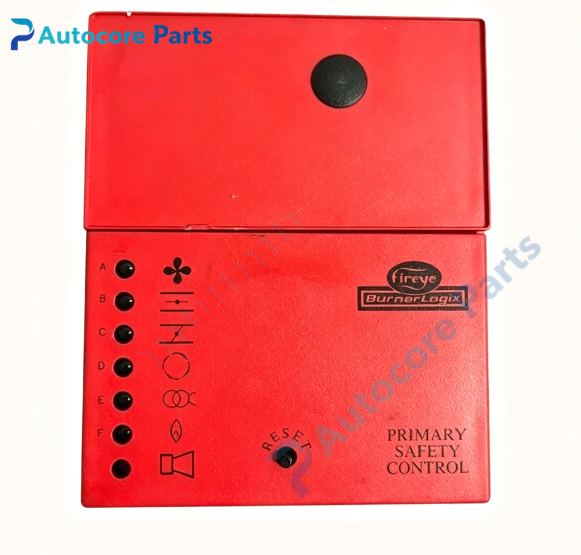

• Front panel: LED status indicators, manual reset button

• Expansion slot: For plug-in YP programmer module

• Optional display: BLV512 OLED or BLL510 LCD display (sold separately)

Environmental:

• Operating temperature: -40℃ ~ +60℃

• Ambient humidity: 0~90% non-condensing

• Certification: UL, FM, CE approved

• Weight: Approx 1.45kg

System compatibility

YB110UVSC belongs to Fireye BurnerLogix Y burner control family. Compatible with Fireye UV self-check flame scanners. Matches YP series programmer modules, BLV512 / BLL510 display units and wiring base 60-2810-1. Suitable for gas, oil and dual-fuel boiler and furnace burners. Widely used for industrial combustion safety control spare replacement.

Function

YB110UVSC is BurnerLogix Y integrated burner control chassis manufactured by Fireye. It integrates burner sequencing logic and UV self-check flame amplifier. The UV self-check circuit continuously validates the health status of UV flame scanner during burner running to prevent false flame signal caused by sensor degradation. The controller executes full burner operating cycle including pre-purge, ignition trial, flame monitoring and post purge. When flame loss or scanner fault is detected, it triggers safety lockout and cuts fuel supply immediately to avoid unburned fuel accumulation and explosion hazard. It supports fuel valve leak proving and records lockout fault history for maintenance troubleshooting. Widely deployed for industrial boilers and furnaces burner safety control spare replacement.

Installation

Follow lockout/tagout safety procedure before installation. Mount YB110UVSC chassis inside control cabinet on DIN rail with wiring base. Install YP programmer module and optional display. Wire 120VAC power, external safety interlock switches, ignition transformer and fuel valve relays. Connect UV self-check flame scanner wiring strictly following Fireye wiring diagram. Complete burner cold test and firing commissioning, verify flame signal and safety lockout function.

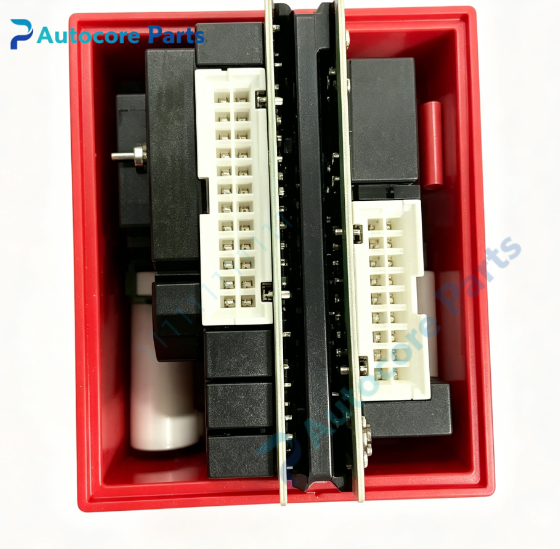

InterfaceAC power terminal block,UV flame scanner input terminals,digital interlock input terminals,relay output terminals,YP programmer module slot,LED indicators & reset button for Fireye YB110UVSC.

FeatureOriginal Fireye YB110UVSC BurnerLogix Y chassis,120VAC power,built-in UV self-check flame amplifier,supports UV self-check scanners,integrated valve proving function,UL & FM & CE safety certified. This spare unit is used for industrial boiler burner sequence and flame safety system maintenance and hardware replacement.

DiagnosticFlame lockout: Inspect UV scanner lens contamination, optical alignment, scanner wiring and flame signal strength. Scanner self-check fault: Verify UV scanner model match, wiring connection and sensor aging status. Interlock lockout: Check external pressure/temperature/airflow limit switches and interlock loop continuity. No power: Check 120VAC supply voltage and internal fuse integrity. Valve proving failure: Inspect fuel valve sealing condition and valve switch wiring.

Product BriefYB110UVSC is Fireye BurnerLogix Y series 120VAC burner management chassis with integrated UV self-check amplifier, used for gas/oil boiler burner sequencing and ultraviolet flame safety interlock,classic spare for industrial furnace combustion control system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
