Fireye PPC4000-230V Parallel Positioning Combustion Controller

Technical Specifications

Model：PPC4000-230V Brand：Fireye Product Type: Parallel positioning fuel-air ratio controller from Nexus PPC4000 series

Control Feature:

• Servo capacity: Max 10 servo motors, up to 4 servos per fuel profile

• Fuel profile: 4 independent fuel profiles, each profile with 24 configurable curve points

• Position accuracy: ±0.1° servo positioning precision, eliminate mechanical hysteresis

• Control loop: Built-in PID loop for pressure / temperature modulation

• Optional function: VFD drive interface, O2 trim for combustion optimization

Electrical Parameters:

• Supply voltage: 230VAC, 50/60Hz

• Power consumption: Approx 15VA (display connected, no extra accessories)

• Communication: RS485 Modbus RTU, daisy-chain servo network

• Analog input: 5 channels of 4-20mA sensor input for pressure/transmitter

• Digital input: User configurable digital inputs, alarm relay contact output

Mechanical & Structure:

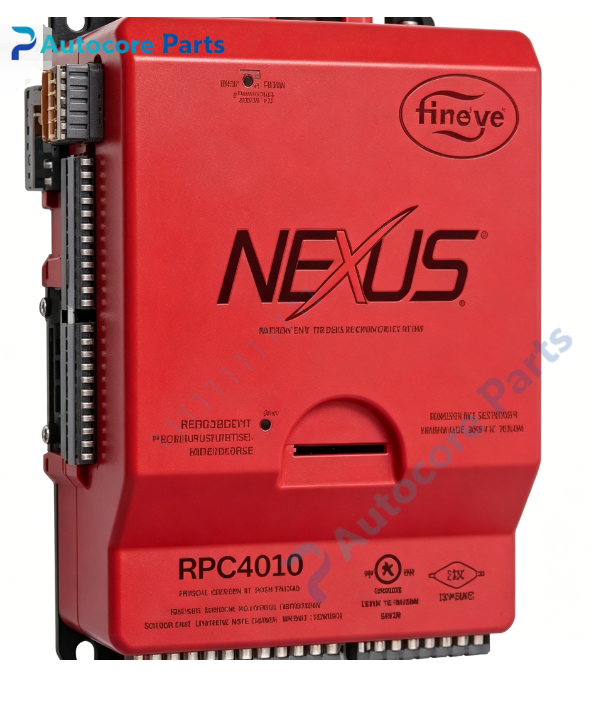

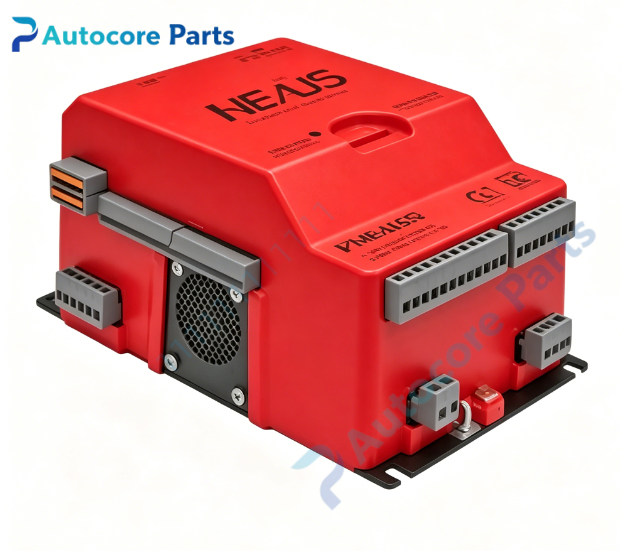

• Housing: Red metal enclosure, cabinet panel mounting

• Mounting: Control cabinet internal installation

• Storage: SD card slot for parameter backup & restore

• Display: Compatible with NX series keypad / touch screen HMI

Environmental:

• Operating temperature: 0℃ ~ +60℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 1.02kg

System compatibilityPPC4000-230V belongs to Fireye Nexus PPC4000 combustion control family. Must pair with Fireye BurnerLogix flame safeguard controllers. Compatible with FX/NXC servo actuators, PXMS pressure transmitters, PSA pressure switches and flame scanners. Applied for gas, oil and dual-fuel industrial boilers and process furnaces. Widely used for combustion system upgrade and spare replacement.

FunctionPPC4000-230V is parallel positioning fuel-air ratio controller manufactured by Fireye. It controls fuel valve and air damper servomotors independently. 24-point programmable curve optimizes air-fuel ratio across full firing range to improve efficiency and reduce emissions. Built-in PID stabilizes boiler pressure or temperature. SD card supports program backup and restoration. It handles burner modulation positioning while external flame safeguard performs flame detection and burner safety sequence. Supports VFD and oxygen trim for energy saving. Widely deployed for industrial boiler combustion optimization and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Mount PPC4000-230V inside NEMA rated control cabinet. Wire servo actuators via communication cable, connect analog/digital inputs strictly follow Fireye PPC4000 wiring manual. Program fuel curve and PID parameters, perform full stroke test and combustion tuning during commissioning.

InterfaceServo communication port,230VAC power terminal block,4-20mA analog input,digital input terminals,alarm relay output,SD card slot,red metal enclosure for Fireye PPC4000-230V.

FeatureOriginal Fireye PPC4000-230V Nexus series parallel positioning controller,230VAC input,4 fuel profiles with 24-point curve,supports up to 10 servos,Modbus RTU communication,UL & FM safety certified. This unit is used for industrial boiler fuel-air ratio modulation,combustion tuning and control hardware replacement.

DiagnosticServo communication failure: Inspect communication cable, terminal connection and bus termination. Combustion curve deviation: Re-calibrate fuel-air profile, check servo mechanical linkage. PID unstable regulation: Adjust PID parameters, verify pressure transmitter signal quality. Parameter lost: Check SD card contact, restore backup program.

Product BriefPPC4000-230V is Fireye Nexus PPC4000 series 230VAC parallel positioning controller for multi-fuel burners,with 24-point fuel curve and PID modulation,classic spare for industrial boiler combustion control system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
