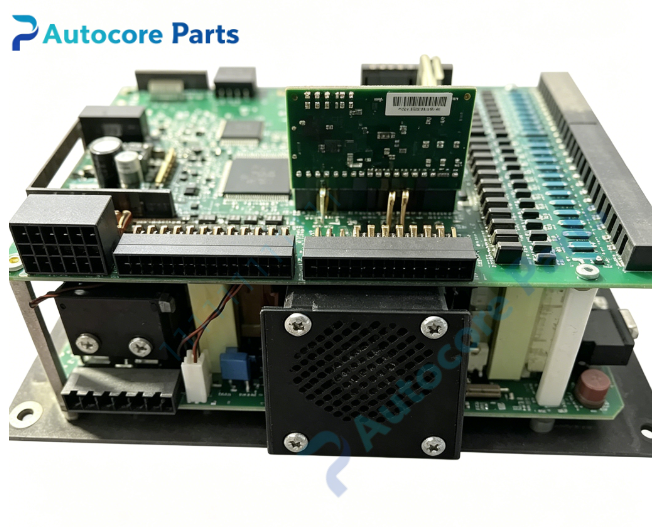

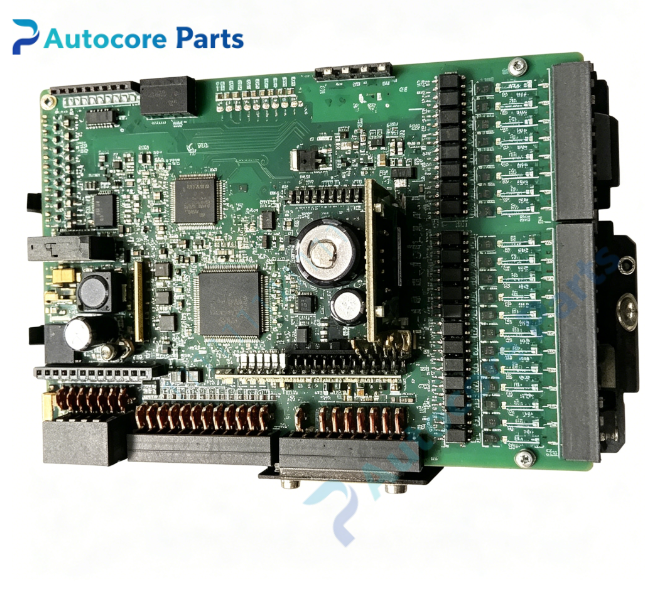

Fireye PPC4000 Parallel Positioning Combustion Controller

Technical Specifications

Model：PPC4000 Brand：Fireye Product Type: Parallel positioning fuel-air ratio controller from Nexus PPC4000 series

Control Feature:

• Servo capacity: Max 10 servo motors, up to 4 servos per fuel profile

• Fuel profile: 4 independent fuel profiles, each profile with 24 configurable curve points

• Position accuracy: ±0.1° servo positioning precision, eliminate mechanical hysteresis

• Control loop: Dual independent PID loops for pressure / temperature modulation

• Optional function: VFD drive interface, O2 trim for combustion optimization

Electrical Parameters:

• Supply voltage: 120VAC, 50/60Hz

• Power consumption: Approx 15VA (display connected, no extra accessories)

• Communication: RS485 Modbus RTU, daisy-chain servo network

• Analog input: 5 channels of 4-20mA sensor input for pressure/transmitter

• Digital input: 10 safety-rated configurable digital inputs, alarm relay contact output

Mechanical & Structure:

• Housing: Red metal enclosure, cabinet panel mounting

• Mounting: Control cabinet internal installation

• Storage: SD card slot for parameter backup & restore, data logging

• Display: Compatible with NX series keypad / touch screen HMI

Environmental:

• Operating temperature: 0℃ ~ +60℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 1.02kg

System compatibilityPPC4000 belongs to Fireye Nexus PPC4000 combustion control family. Must pair with Fireye BurnerLogix flame safeguard controllers. Compatible with FX/NXC servo actuators, PXMS pressure transmitters, PSA pressure switches and flame scanners. Suitable for gas, oil and dual-fuel industrial boilers and process furnaces. Widely used for combustion system upgrade and spare replacement.

FunctionPPC4000 is parallel positioning fuel-air ratio controller manufactured by Fireye. It independently controls fuel valve and air damper servomotors. 24-point programmable curve optimizes air-fuel ratio across full firing range to improve combustion efficiency and reduce emissions. Dual PID loops stabilize boiler pressure or temperature. SD card supports parameter backup, restore and operation data logging. It handles burner modulation positioning while external flame safeguard performs flame detection and burner safety sequence. Supports VFD and oxygen trim for energy saving. Widely deployed for industrial boiler combustion optimization and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Mount PPC4000 inside NEMA rated control cabinet. Wire servo actuators via communication cable, connect analog/digital inputs strictly follow Fireye PPC4000 wiring manual. Program fuel curve and PID parameters, perform full stroke test and combustion tuning during commissioning.

InterfaceServo communication port,120VAC power terminal block,4-20mA analog input,digital input terminals,alarm relay output,SD card slot,red metal enclosure for Fireye PPC4000.

FeatureOriginal Fireye PPC4000 Nexus series parallel positioning controller,120VAC input,4 fuel profiles with 24-point curve,supports up to 10 servos,Modbus RTU communication,UL & FM safety certified. This unit is used for industrial boiler fuel-air ratio modulation,combustion tuning and control hardware replacement.

DiagnosticServo communication failure: Inspect communication cable, terminal connection and bus termination. Combustion curve deviation: Re-calibrate fuel-air profile, check servo mechanical linkage. PID unstable regulation: Adjust PID parameters, verify pressure transmitter signal quality. Parameter lost: Check SD card contact, restore backup program.

Product Brief

PPC4000 is Fireye Nexus PPC4000 series 120VAC parallel positioning controller for multi-fuel burners,with 24-point fuel curve and PID modulation,classic spare for industrial boiler combustion control system.
