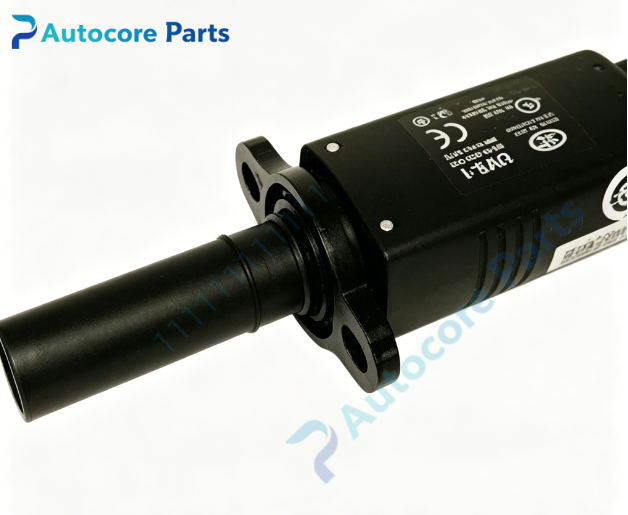

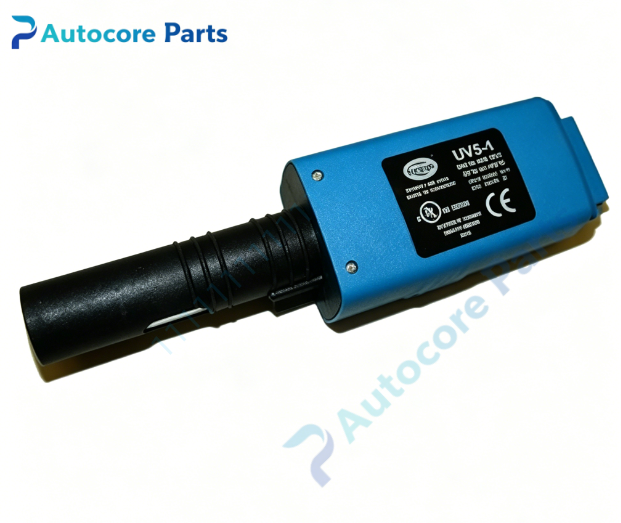

Fireye UV5-1 Ultraviolet Flame Scanner

Technical Specifications

Model：UV5-1 Brand：Fireye Product Type: Non self-checking ultraviolet flame scanner for industrial burner combustion monitoring

Detection Feature:

• Detection spectrum: Ultraviolet UV band, insensitive to normal visible light

• Optical design: Supports front viewing and lateral viewing installation

• Detectable fuel: Natural gas, propane, light fuel oil

• Application requirement: Suitable for periodically cycling burners, safety check runs each burner cycle

Electrical Parameters:

• Cable: Detachable 6.5ft UL rated cable assembly

• Max wiring distance: Comply with Fireye amplifier wiring specification

• Compatible drive signal from Fireye MB / BurnerPRO control chassis

Mechanical & Optical:

• Lens: Quartz UV transparent lens

• Included accessory: Mounting flange

• Housing: Rugged alloy housing, corrosion resistant

• Optical viewing window for flame capture

Environmental:

• Operating temperature: -20℃ ~ +70℃

• Ambient humidity: 0~95% non-condensing

• Certification: UL listed

• Weight: Approx 0.62kg

System compatibility

UV5-1 belongs to Fireye UV5 series flame scanner family. Compatible with Fireye BurnerPRO, MBCE and NXF4000 burner safeguard control systems. Matches standard burner sight ports and mounting flanges for boilers and furnaces. Widely used in industrial combustion safety monitoring and spare replacement.

Function

UV5-1 is ultraviolet flame scanner manufactured by Fireye. It senses ultraviolet radiation emitted by combustion flame. This is non-self-check model, system will automatically perform scanner fault detection at start and end of every burner cycle. It transmits flame present or flame loss signal to burner controller. When flame failure happens, control system initiates safety shutdown to prevent unburned fuel accumulation and explosion hazards. Widely deployed for gas and oil boiler burner flame monitoring and spare replacement.

Installation

Follow lockout/tagout safety procedure before any installation work. Install UV5-1 onto burner sight port using the supplied mounting flange. Aim optical window toward flame zone. Connect detachable cable and wire strictly according to Fireye wiring diagram. Complete power-up test and burner commissioning, verify stable flame signal during normal combustion.

InterfaceQuartz optical lens, mounting flange, detachable 6.5ft cable connector, electrical wire terminals for Fireye UV5-1.

FeatureOriginal Fireye UV5-1 non self-check UV flame scanner,supports front and lateral viewing,detachable cable design,comes with mounting flange,UL approved. This spare unit is used for industrial boiler and furnace burner flame safety monitoring maintenance and hardware replacement.

DiagnosticNo flame signal: Inspect lens dirt, optical alignment, cable connection continuity. False flame indication: Check interference from arc light or strong ultraviolet sources. Intermittent flame signal: Check loose cable connector, vibration on mounting assembly or lens condensation. Cycle fault alarm: Verify amplifier supply voltage and cable insulation integrity.

Product BriefUV5-1 is Fireye UV series non-self-check ultraviolet flame scanner with detachable cable, designed for cycling gas and oil burners, used for boiler flame detection and combustion safety interlock,classic spare for industrial furnace combustion control.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
