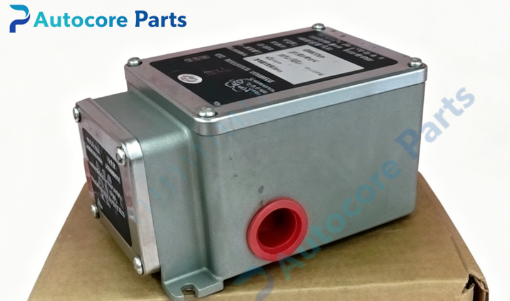

Fireye P5348-2 Flame Amplifier Module

Technical Specifications

Model：P5348-2 Brand：Fireye Product Type: Flame signal amplifier module for UV flame scanner

Detection Feature:

• Input signal: UV flame detector sensor signal

• Flame response: Fast flame on / flame off detection

• Relay output: SPDT relay contact for flame present / loss signal

• Circuit type: Self-check safety circuit design

• Application: Continuous flame supervision

Electrical Parameters:

• Supply voltage: 120VAC 50/60Hz

• Relay rating: 120VAC 5A

• Signal filtering: Built-in noise filter to resist furnace light interference

• Wiring: Screw terminal block for sensor and controller connection

Mechanical & Structure:

• Housing: Compact metal enclosure

• Mounting: DIN rail installation inside burner control cabinet

• Indicator: LED status lamp for flame signal and power status

• Compatibility: Matches Fireye UV flame scanners

Environmental:

• Operating temperature: -40℃ ~ +60℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM safety approved

• Weight: Approx 0.28kg




System compatibility

P5348-2 belongs to Fireye flame safeguard accessory family. Compatible with Fireye UV flame detectors and legacy burner management controllers. Applied for gas, oil and dual fuel industrial boilers and process furnaces. It amplifies weak UV flame signal from scanner and transmits flame status to burner controller. Widely used as spare replacement for old combustion flame detection system.

Function

P5348-2 is flame amplifier module manufactured by Fireye. It receives low-level UV signal from flame scanner, amplifies and processes the flame signal. Internal self-check circuit verifies amplifier and sensor health continuously. When flame signal meets threshold, relay activates to send flame present signal to burner controller. If flame is lost, relay de-energizes immediately to trigger burner safety shutdown. Periodic self-check prevents false flame signal caused by component failure. Widely deployed for industrial boiler flame supervision and spare replacement.

Installation

Follow lockout/tagout safety procedure before installation. Mount P5348-2 on DIN rail inside NEMA control cabinet. Wire UV flame scanner input and relay output terminals strictly follow Fireye P5348-2 wiring manual. Power on and perform flame simulation test and flame loss test during commissioning.

Interface

UV sensor input terminal,120VAC power terminals,SPDT flame relay output,LED status indicator,DIN rail metal housing for Fireye P5348-2.

Feature

Original Fireye P5348-2 flame amplifier module,120VAC supply voltage,UV signal amplification,self-check safety circuit,UL & FM safety certified. This spare module is used for industrial boiler burner flame signal processing,flame supervision and hardware replacement.

Diagnostic

No flame indication with burner firing: Inspect UV scanner lens contamination, sensor cable and amplifier wiring. False flame loss: Check electrical noise interference, re-adjust flame signal threshold, verify scanner alignment. No power indicator: Inspect 120VAC power supply and fuse. Stuck flame signal: Check amplifier circuit failure or short circuit on sensor line.

Product Brief

P5348-2 is Fireye P5348 series UV flame amplifier module with self-check circuit,used to process flame scanner signal for burner safety supervision,classic spare for legacy boiler combustion safety system.
